Why Choose Simpson Strong-Tie®?
Heavy-duty decking bracketry & frame connectors — engineered for strength, speed, and decades of structural stability
Whether you are designing a high-end residential garden escape, fitting complex split-level decking for a client, or engineering heavy-duty commercial timber subframes, F.H. Brundle supplies the UK’s most trusted range of structural deck frame connectors, post feet, joist hangers, fasteners, and anchors.
Featuring industry-leading Simpson Strong-Tie® structural bracketry, our range ensures your deck subframes meet strict structural load requirements, resist severe weather corrosion, and install significantly faster.
• Built to Last: Corrosion-resistant galvanised and stainless steel finishes protect your investment against damp British weather.
• Safety First: Prevent deck collapse by replacing toe-nailing with heavy-duty structural connectors designed to bear heavy loads, hot tubs, and large gatherings.
• DIY Friendly: Clear structural guidelines mean self-builders can achieve trade-standard structural integrity.
• Engineered for Speed: Pre-drilled connector holes match standard timber fixings and structural screws for lightning-fast installation.
• Eliminate Split Timber: Structural brackets remove the need to drive long screws into fragile timber grain edges.
• Callback Prevention: Rigid steel connections prevent frame creaking, twisting, and timber movement as seasons change.
• Full Structural Compliance: Simpson Strong-Tie engineered brackets come backed by tested load ratings for total commercial sign-off confidence.
• Versatile Subframe Integration: Compatible with softwood, hardwood, composite joists, and aluminium subframe systems.
What is Decking Bracketry
Deck frame connectors (or decking bracketry) are heavy-duty metal components—such as joist hangers, angle clips, post bases, and tension ties—used to mechanically fasten timber or metal subframes together.
Unlike standard wood screws or nails (which rely purely on friction and can shear over time under lateral loads), structural deck bracketry transfers weight loads directly through engineered steel plates. This prevents subframe sagging, timber splitting, frame twisting, and structural collapse under heavy use.
Core Product Range Overview
1. Simpson Strong-Tie® Joist Hangers & Frame Clips
Designed to carry heavy timber joist loads directly into ledger boards or outer frame headers.
- Key Features: Speed-prong alignment, engineered nail/screw patterns, robust galvanised coating.
- Best Used For: Joist-to-beam framing, cross-joist bracing, flush deck edge finishing.

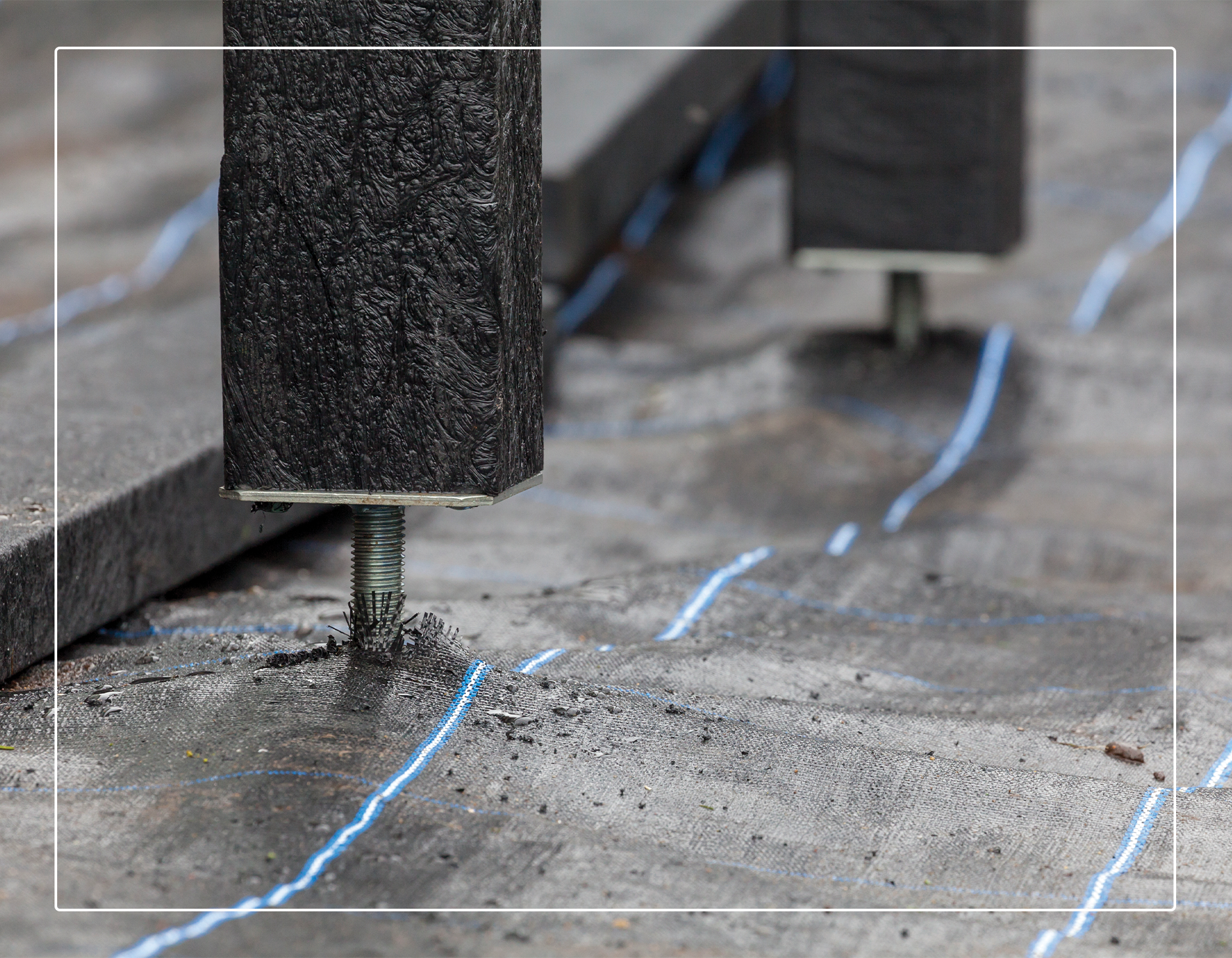

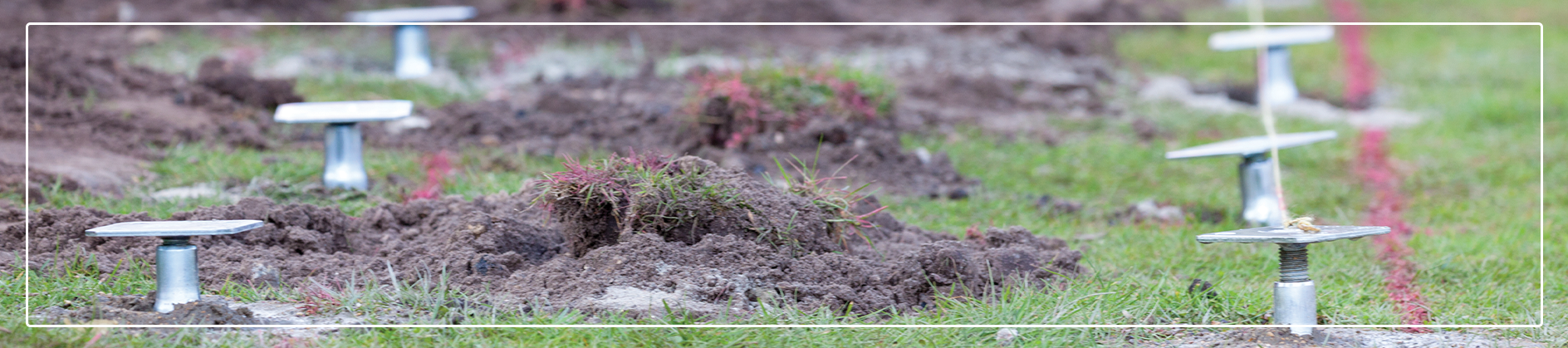

2. Adjustable Post Bases & Support Feet
Elevate structural vertical posts away from soil and ground moisture to eliminate wood rot at ground level.
- Key Features: Height-adjustable options, subterranean anchor fixings, heavy downward/upward load resistance.
- Best Used For: Deck posts, pergolas, elevated ground platforms, multi-level decking.
3. Rigid Angle Brackets & Tie Plates
Reinforce right-angled joints, corner posts, and cross-beams against wind uplift and lateral sway.
- Key Features: Reinforced ribs for high bending resistance, multi-hole patterns for timber fasteners.
- Best Used For: Subframe corner locks, frame squaring, heavy beam bracing.
4. Structural Fasteners, Timber Screws & Masonry Anchors
Tested fixing systems designed to anchor brackets securely into timber, concrete, or masonry.
- Key Features: Corrosion-resistant coatings, high shear resistance, self-drilling timber tips.
- Best Used For: Ledger board fixing to brickwork, bracket-to-joist securing, post base anchoring.
The Benefits of Decking Bracketry & Subframe Connectors.
• Superior Structural Safety & Load Bearing: Connectors transfer heavy weight directly through engineered steel plates rather than relying on the friction of screws or nails. This prevents sagging, sway, and dynamic load failures (e.g., under heavy hot tubs or large gatherings).
• Wood Rot Prevention: Post base connectors elevate vertical support posts 25mm–50mm off wet soil or concrete, stopping ground-moisture absorption and extending subframe lifespan.
• Corrosion & Weather Resistance: Made from Hot-Dip Galvanised (Z275/Z350) or Grade 316 Stainless Steel engineered specifically for severe damp weather and UK climate conditions.
• Eliminates Split Timber & Creaking: Avoids angle-screwing (“toe-nailing”) into fragile end grain, preventing wood split during build and eliminating frame twisting/creaking over time.
• Full Code Compliance: Simpson Strong-Tie® hardware is fully load-tested to meet UK building regulations and structural compliance standards.
Technical Specifications & Compliance
Technical Specifications:
• Target Load Applications: Engineered for high load-bearing capacity across residential decks, commercial platforms, and industrial ground structures.
• Corrosion & Weather Resistance: Manufactured with protective galvanised and exterior-grade steel coatings designed for severe British outdoor weather exposure and high ground-moisture contact.
• Structural Code Compliance: Fully load-tested to satisfy UK structural building regulations, preventing lateral sway, frame twisting, and joist sagging.
• Project Compatibility: Designed for use with softwood timber, hardwood, glulam, composite framing, and masonry/concrete anchor points.
Testing & Compliance Status:
• UKCA & CE Marking Compliance: Fully compliant with the UK Construction Products Regulation (CPR) and UKCA/CE marked, backed by official Declarations of Performance (DoP) for structural use in timber construction.
• European Technical Assessments (ETA): Evaluated and certified under relevant ETAs (such as ETAG 015 guidelines for 3-dimensional timber framing connectors), providing validated design resistances across Europe and the UK.
• UKAS-Accredited Laboratory Testing: All bracketry undergoes physical load testing in UKAS-accredited research labs to quantify ultimate failure points, characteristic load capacities, and long-term joint integrity.
• Eurocode 5 (BS EN 1995) Structural Alignment: Calculated and tested in alignment with BS EN 1995-1-1 (Eurocode 5) limit-state design principles, incorporating safety factors for dynamic live loads, wind uplift, and timber duration-of-load adjustments.
• ISO 9001 Quality Assurance: Manufactured under strict ISO 9001 quality management systems (including Simpson Strong-Tie’s UK production facility in Tamworth) to ensure batch-to-batch structural uniformity.
• Corrosion Resistance Standards: Steel coatings satisfy BS EN 10346 (pre-galvanised) and BS EN ISO 1461 (hot-dip galvanised) standards, providing tested protection against moisture, ground contact, and pressure-treated timber chemicals.
Decking Bracketry Testing Report
| Test | Test method | Value |
|---|---|---|
| Ultimate Vertical Load | Static Downward Compressive Load Test (BS EN 1995-1-1) | 12.5 kN |
| Safe Working Load (SWL) | Applied Safety Factor (1.5:1 on Ultimate Load) | 8.3 kN |
| Lateral Shear Resistance | Parallel-to-Grain / Shear Axis Load Test | 5.2 kN |
| Uplift Tensile Resistance | Direct Axis Pull-Out / Tension Test | 4.1 kN |
| Corrosion Resistance | Neutral Salt Spray Test (BS EN ISO 9227) | 1,000 Hours (Class C4 Rating) |
| Material Yield Strength | Tensile Testing of Structural Steel (BS EN 10025-2) | 235 N/mm² (S235 Structural Grade) |
| Fixing Screw Pull-Out | Timber/Aluminium Subframe Joint Fastener Test | 2.8 kN per fastener |
FAQs
While you can join timber using screws, relying solely on screws (often called toe-screwing) creates weak shear points susceptible to snapping under dynamic loads, soil shifting, or wood expansion. Using structural decking bracketry transfers weight through tested steel connections, guaranteeing structural compliance and long-term frame safety.
For outdoor timber decking, you should always select Hot-Dip Galvanised (HDG) or Z275 / Z350 Pre-Galvanised Steel brackets. If installing near coastal areas or around saltwater pools, Grade 316 Stainless Steel bracketry is strongly recommended to prevent saltwater corrosion.
Timber posts buried directly in dirt or saturated concrete act like sponges, wicking moisture upward and rotting within 3–5 years. Post base connectors keep the timber elevated 25mm–50mm above the ground or concrete base, allowing water to drain away freely and keeping the post dry and structural for decades.
Simpson Strong-Tie is the global benchmark for structural timber connectors. Every Simpson Strong-Tie bracket supplied by F.H.Brundle undergoes rigorous physical load testing, meeting European and UK building regulations for structural load, sway resistance, and corrosion endurance.
Yes. F.H. Brundle caters to trade professionals, landscapers, and commercial contractors with bulk trade pricing, dedicated account managers, and nationwide branch pickup across the UK. FREE expedited delivery is available on qualifying orders over £150 (ex VAT).
