Double Leaf Bolt-Down Gate - 3.0m H x 4m Galvanised c/w Posts & Fittings
Double Leaf Bolt-Down Gate - 3.0m H x 4m Galvanised c/w Posts & Fittings

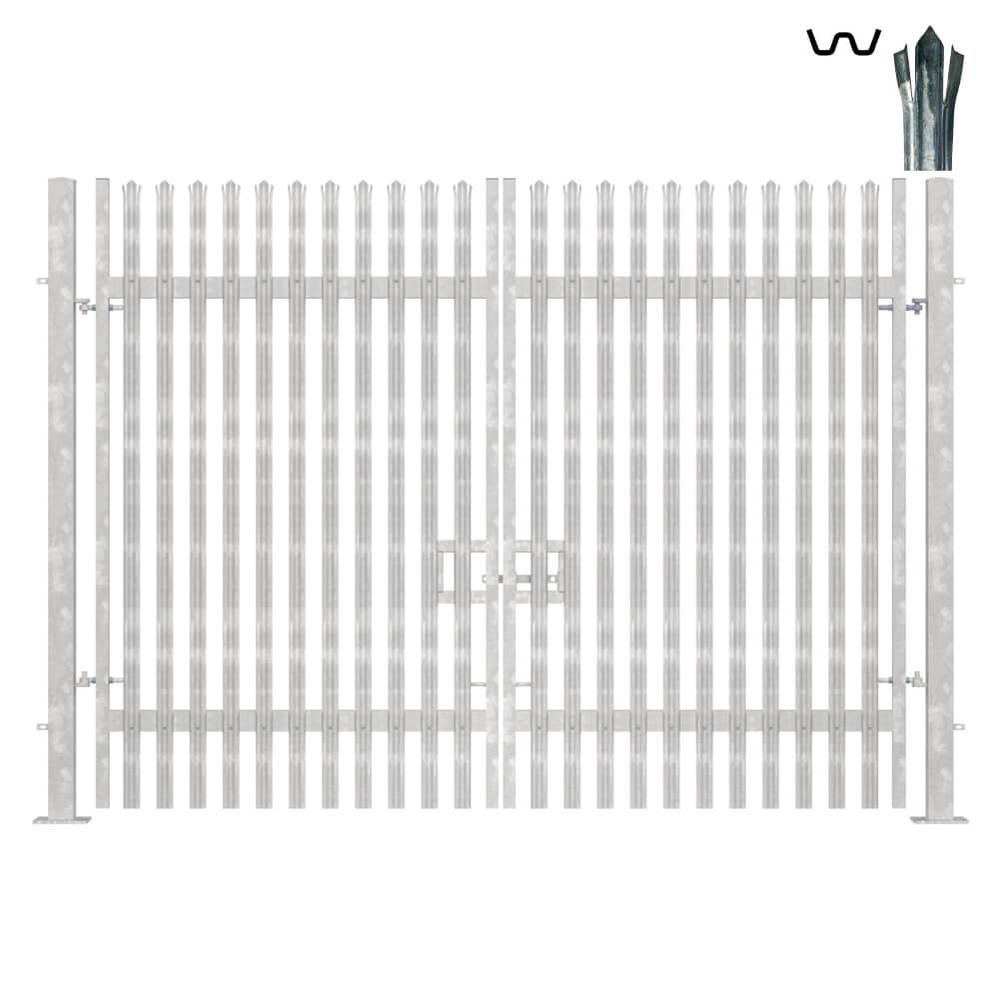

This double leaf tripled pointed "W" 2mm thick pale gate opens 100° inwards and outwards and has a 50mm nominal ground clearance.
They come complete with bolt-down gate posts, adjustable gate eyes, weld-on hooks and lugs, slide latch with padlock holes and drop bar supplied hot dip galvanised to BS EN ISO 14612009 to give long term weather resistance.
Specifications:
- Gate Height: 3.0m
- Gate Width: 4m
- Gate Frame: H: 60 x W: 60 x T: 4mm
- Gate Posts: 120 x 120mm
- Overall post height: 3.01m
- Overall Gate width including posts: 6.24m
- Base plate: 250 x 250mm
- Base plate fixing holes: Ø 18mm
- M12 cup square bolts for fixing horizontal rails
- M8 saddle bolts for fixing pales
47DLB304W
373.34 kg
£1650.60EACH Ex VAT @ 20%
£1980.72EACH Inc VAT @ 20%
| Quantity | Price |
|---|---|
| 1 | £1650.60 |
| 2+ | £1584.50 |
Type
Spec
Profile
Fixing
Dimensions
This kit contains
hide
Kit is sold in units of (EACH) in multiples of 1.00
Required quantity
Add kit to basket
