Single Leaf Bolt-Down Gate - 1.8m x 1m Galvanised c/w Posts & Fittings
Single Leaf Bolt-Down Gate - 1.8m x 1m Galvanised c/w Posts & Fittings

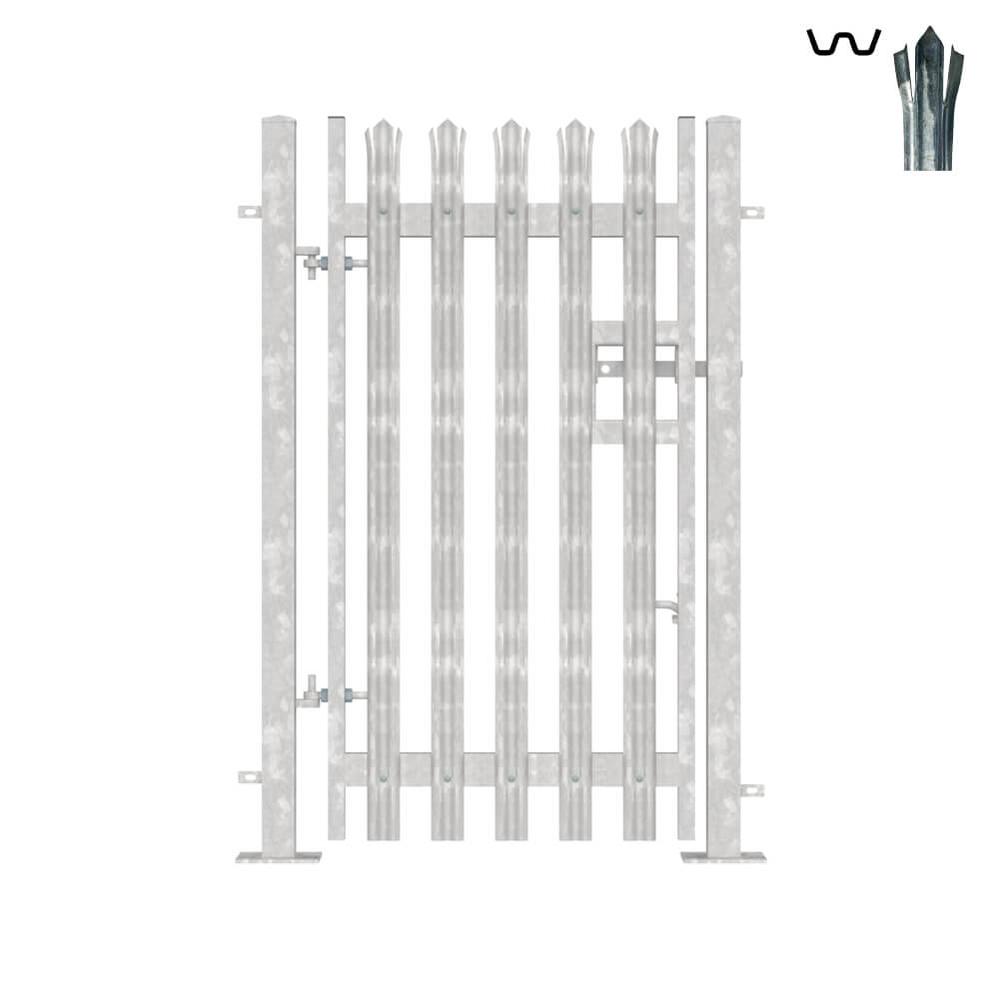

This single leaf tripled pointed "W" 2mm thick pale gate opens 100° inwards and outwards and has a 50mm nominal ground clearance.
They come complete with bolt-down gate posts, adjustable gate eyes, weld-on hooks and lugs, slide latch with padlock holes and drop bar supplied hot dip galvanised to BS EN ISO 14612009 to give long term weather resistance.
Specifications:
- Gate Height: 1.8m
- Gate Width: 1m
- Gate Frame: H: 60 x W: 40 x T: 3mm
- Gate Posts: 80 x 80mm
- Overall post height: 2.40m
- Overall Gate width including posts: 1.36m
- Base plate: 200 x 200mm
- Base plate fixing holes: Ø 14mm
- M12 cup square bolts for fixing horizontal rails
- M8 saddle bolts for fixing pales
47SLB181W
82.3 kg
£420.00EACH Ex VAT @ 20%
£504.00EACH Inc VAT @ 20%
| Quantity | Price |
|---|---|
| 1+ | £420.00 |
| 5+ | £403.20 |
