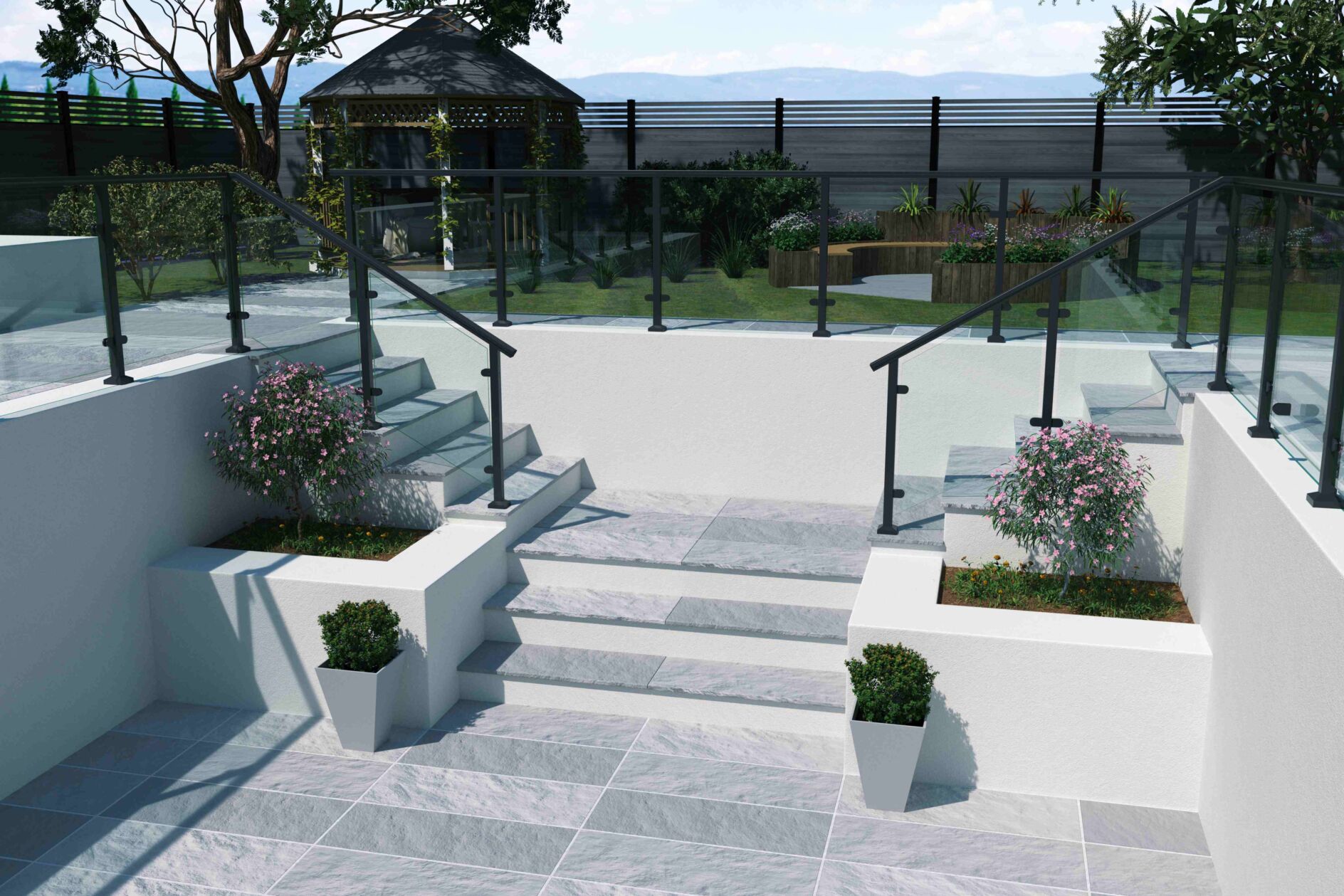

Suitable for decks,
patios, balconies & more
Minimalised obstruction
of views
Tested rigorously to
British Standards
Virtually
maintenance-free
Fortitude Timeless Glass and Post Balustrade
Our Fortitude Timeless range is an innovative railing system designed to be fully modular. The pre-assembled aluminium 50mm square posts are ready to install and the system can be fully fitted using basic equipment. Available in a stunning black sand finish.

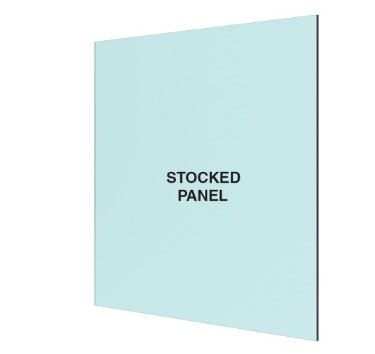

Glass Panels
900mm height x 10mm thickness. Will give 1100mm high handrail on flat surfaces.
| Width mm | Code |
|---|---|
| 100 | 185510100900 |
| 200 | 185510200900 |
| 300 | 185510300900 |
| 400 | 185510400900 |
| 500 | 185510500900 |
| 600 | 185510600900 |
| 700 | 185510700900 |
| 800 | 185510800900 |
| 900 | 185510900900 |
| 1000 | 1855101000900 |
| 1100 | 1855101100900 |
Posts

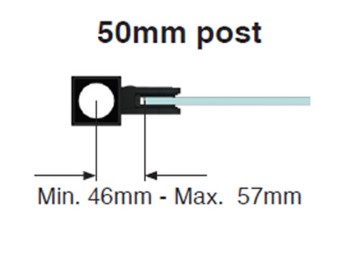

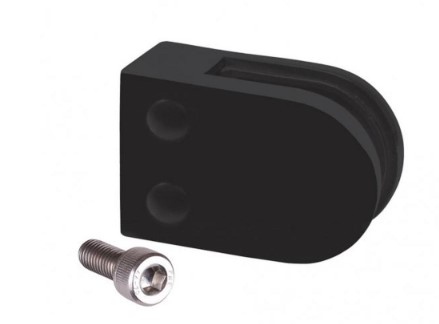

Pre-drilled posts for glass clamps
2.3mm thickness. Supplied with base cover plate and protective cap. Pre-drilled holes for use with glass clamps.
End

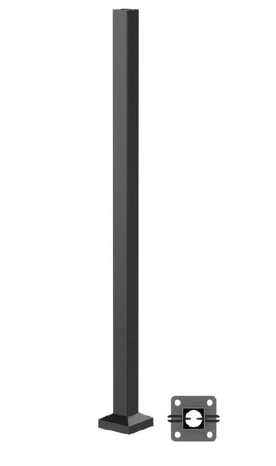

Mid

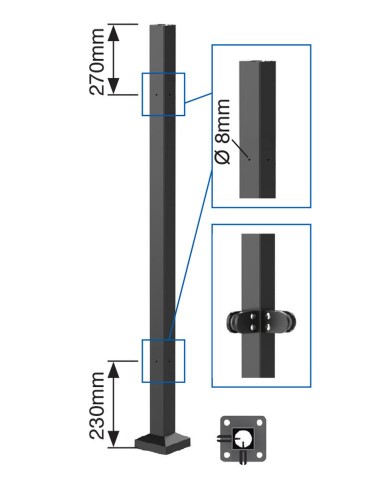

Corner

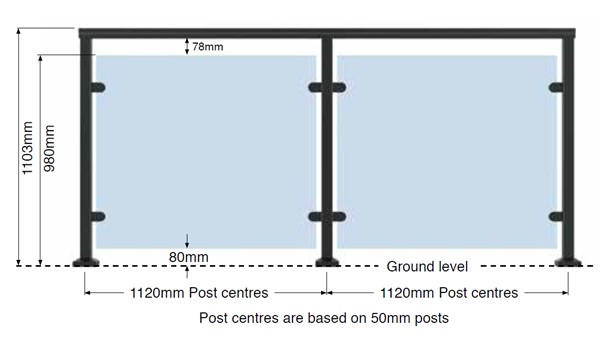

Fortitude Timeless Application Scenarios and Dimensions

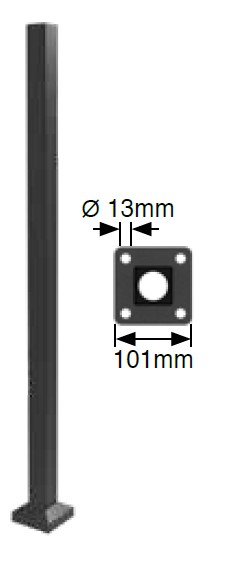

Bolt-down posts
Posts are available in 50mm widths, 2.3mm thickness, and supplied with the base cover plate and protective cap.
These DO NOT come with pre-drilled holes for brackets, these must be drilled by the installer.

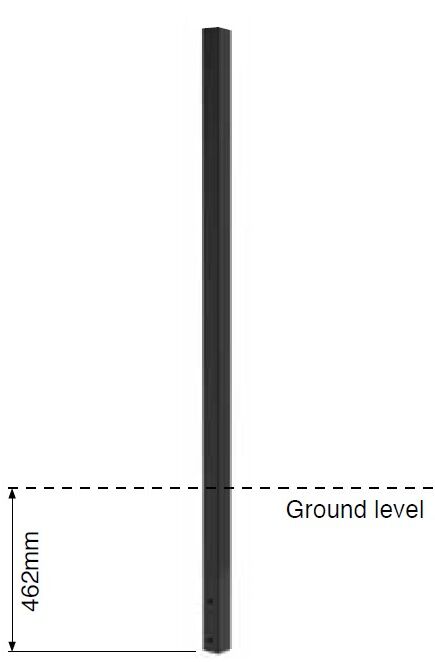

Concrete-In Posts
Posts are available in 50mm widths, 2.3mm thickness, and supplied with a protective cap.
These DO NOT come with pre-drilled holes for brackets, these must be drilled by the installer.
Side-fix posts
Posts are available in 50mm widths, 3mm thickness. 50mm posts supplied with fascia brackets and four screws to assemble.
These DO NOT come with pre-drilled holes for brackets, these must be drilled by the installer.
50mm End/Mid
50mm Internal Corner
50mm Outside Corner
Handrail components

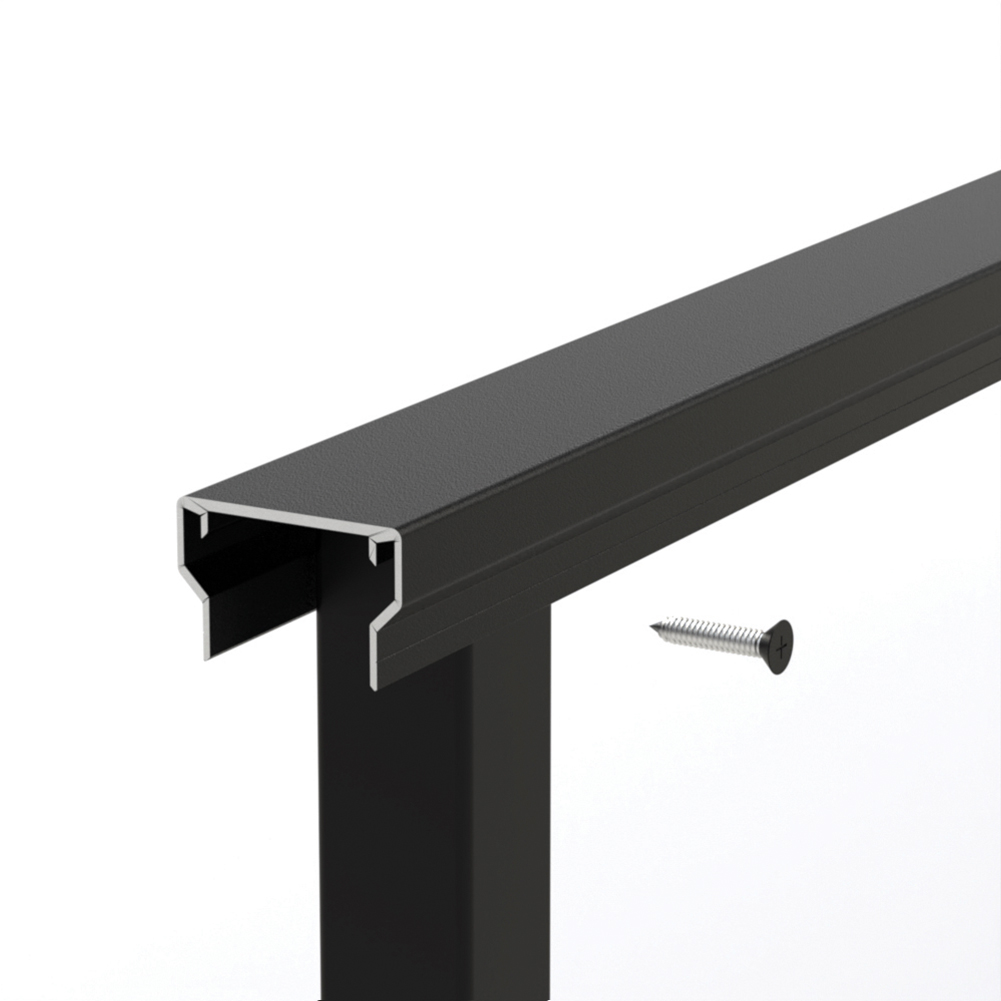

Capping Handrail

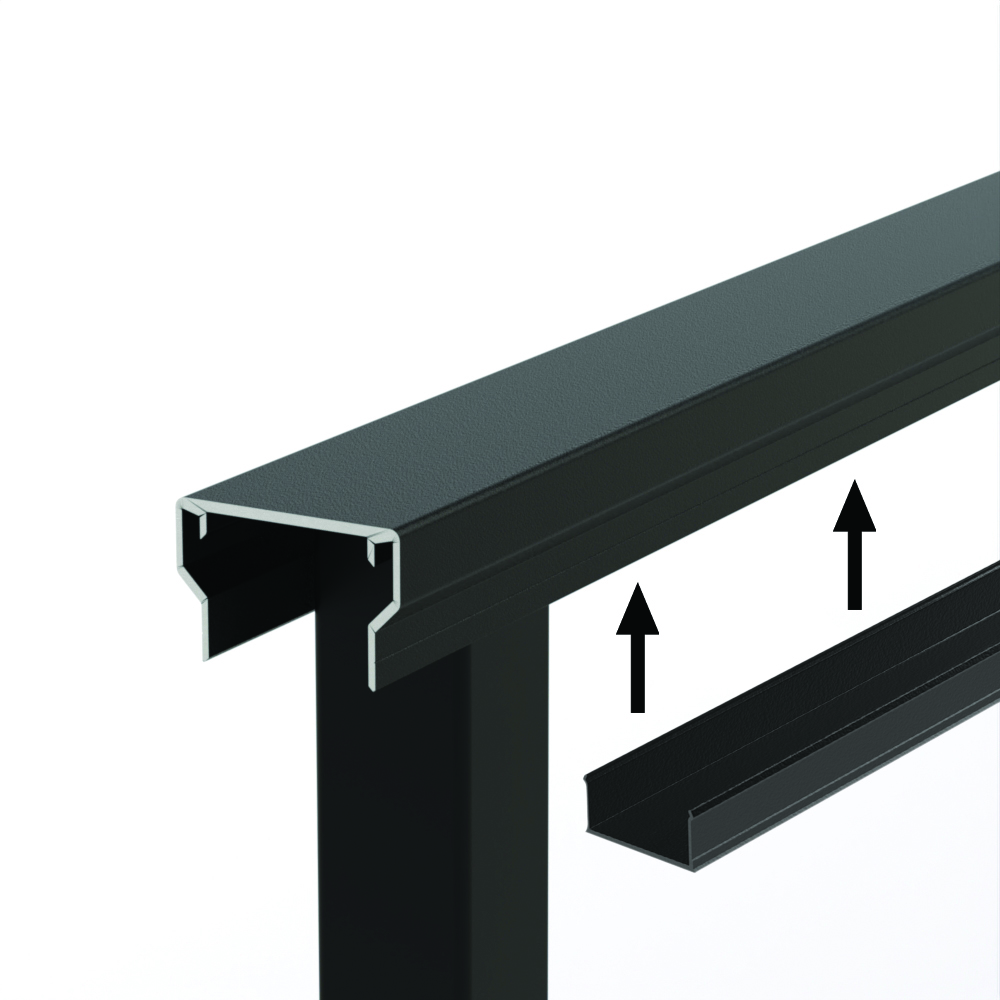

Handrail Under Cap

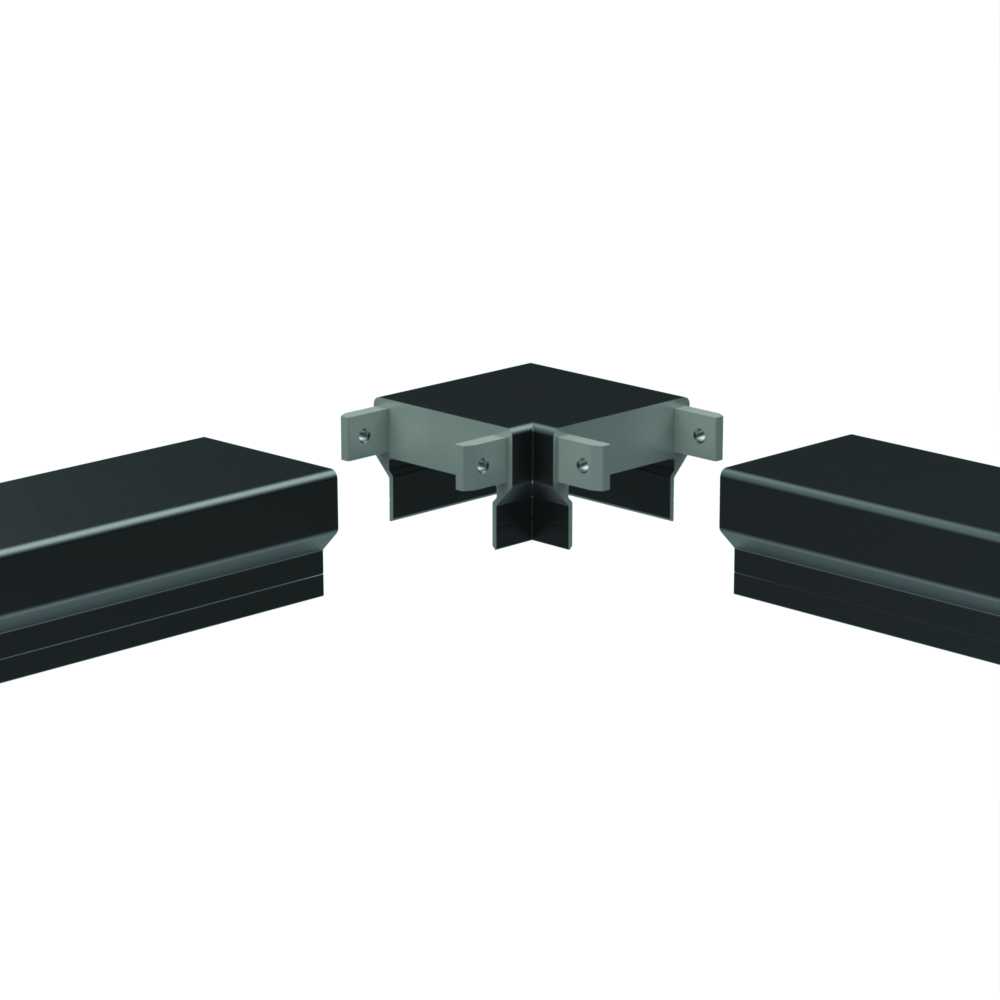

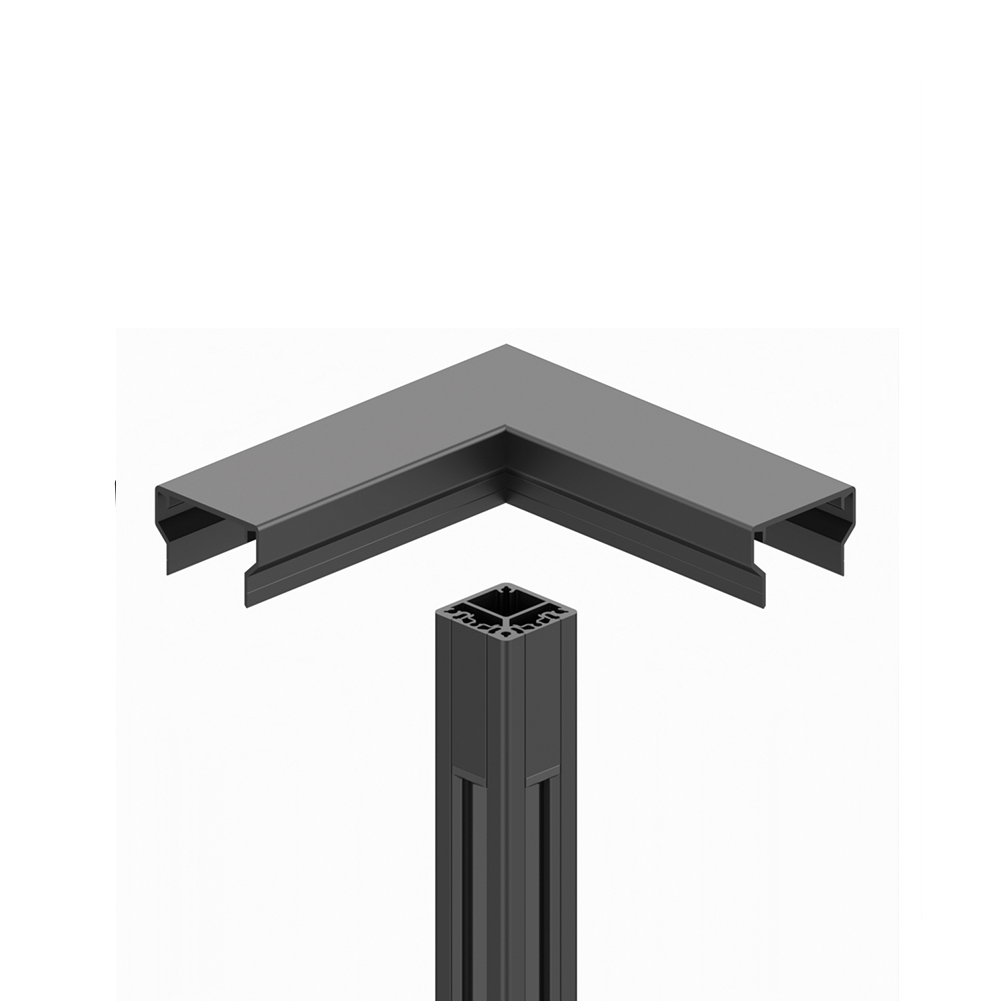

90˚ Corner
90˚ Connector
180˚ Connector

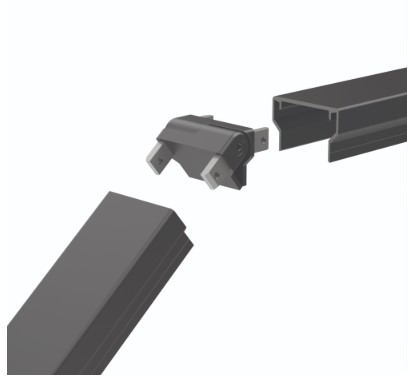

Adj Vertical Joiner
Adj Horizontal Joiner
Fortitude Bolt-down Post Assembly Diagram
Fortitude Concrete-in Post Assembly Diagram
Fortitude Side-fix Post Assembly Diagram
