Fortitude Contemporary
Suitable for decks,
patios, balconies & more
Minimalised obstruction
of views
Tested rigorously to
British Standards
Virtually
maintenance-free

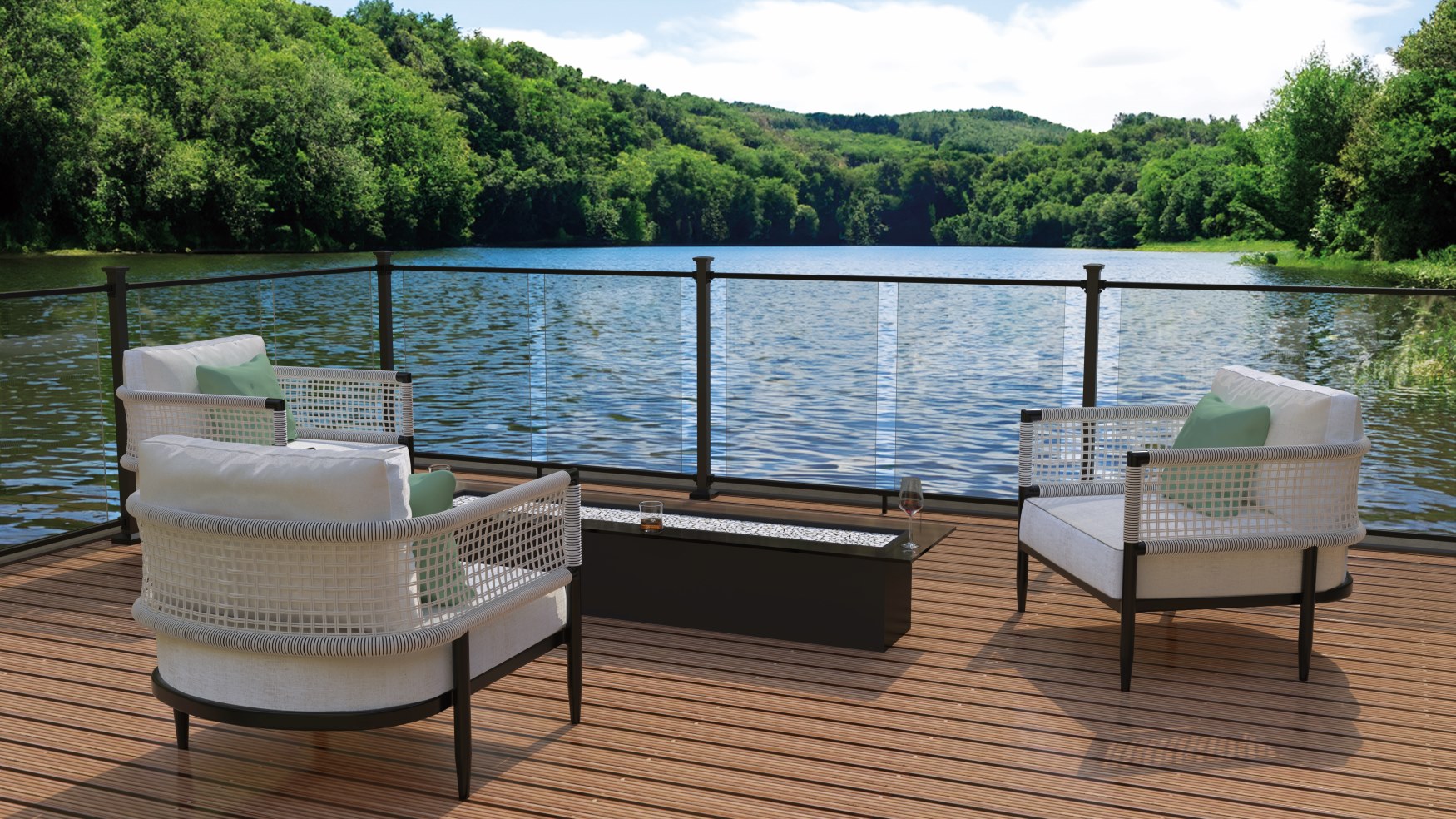

Fortitude Contemporary Glass and Post Balustrade

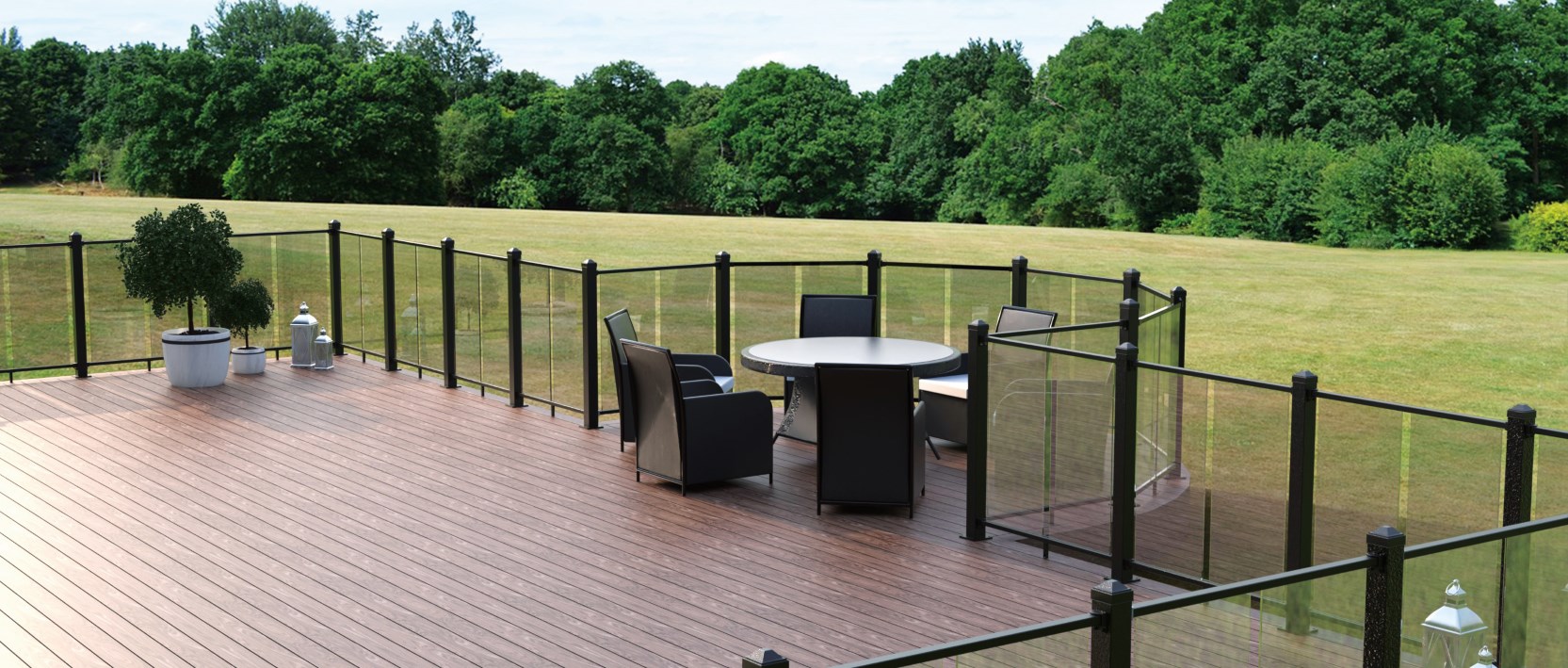

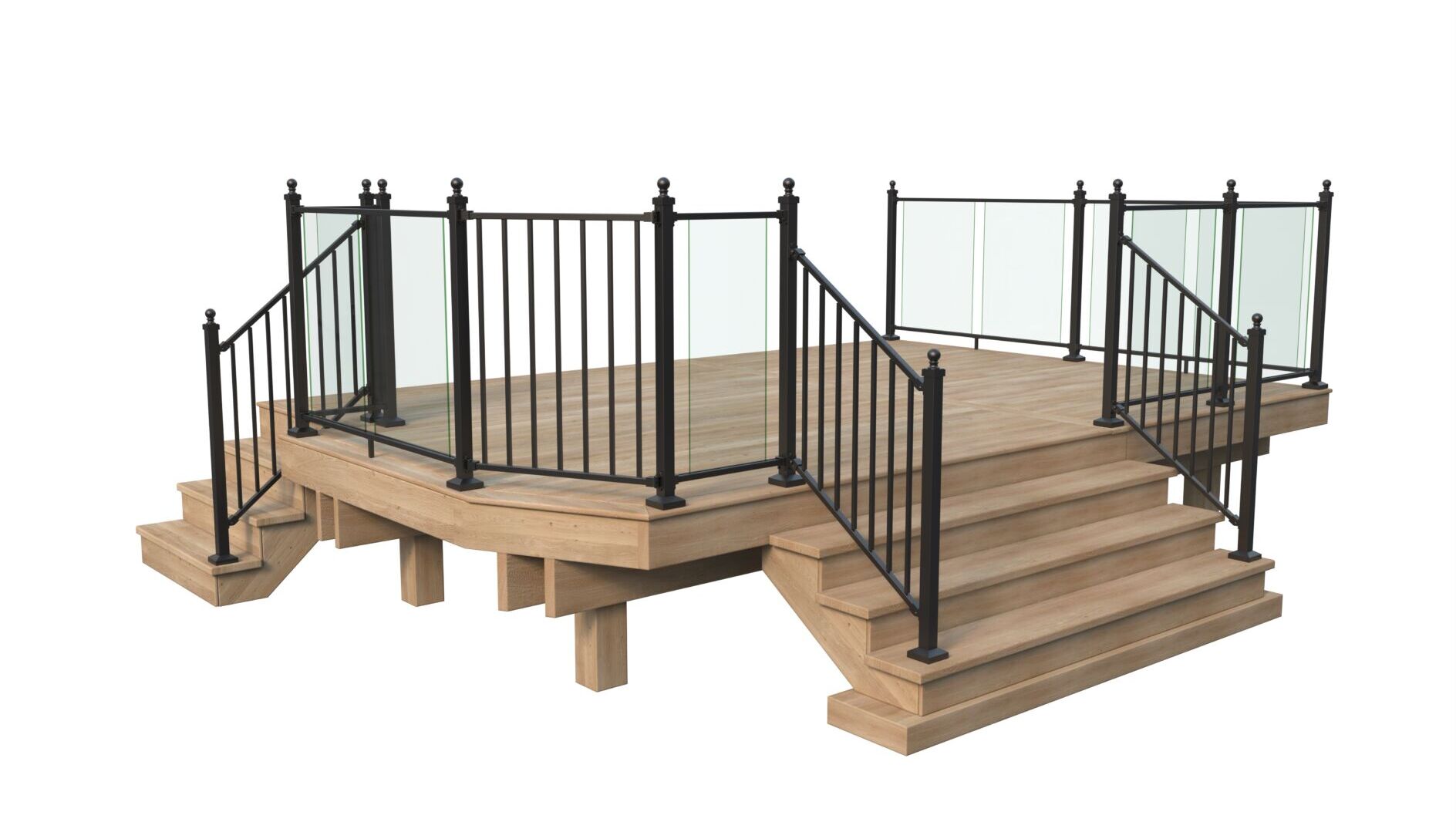

Fortitude Traditional Contemporary is an alternative glass panel and post balustrade solution. This balustrade solution offers style and sophistication for any domestic deck, balcony or patio. The system is designed to provide maximum functionality and minimal obstruction of views by using strong, narrow upright posts in conjunction with top and bottom fixed slats.
Contemporary uses a unique toughened 8mm glass panel to fit the reinforced aluminium channels to provide a durable and rigid balustrade.
Unspoiled view, unrivalled quality…
Fortitude Contemporary Metre Rate Guide Pricing
To make life just that little easier, we’ve create pre-defined kits to help you price your Fortitude Contemporary project on a per-metre basis.
Panels

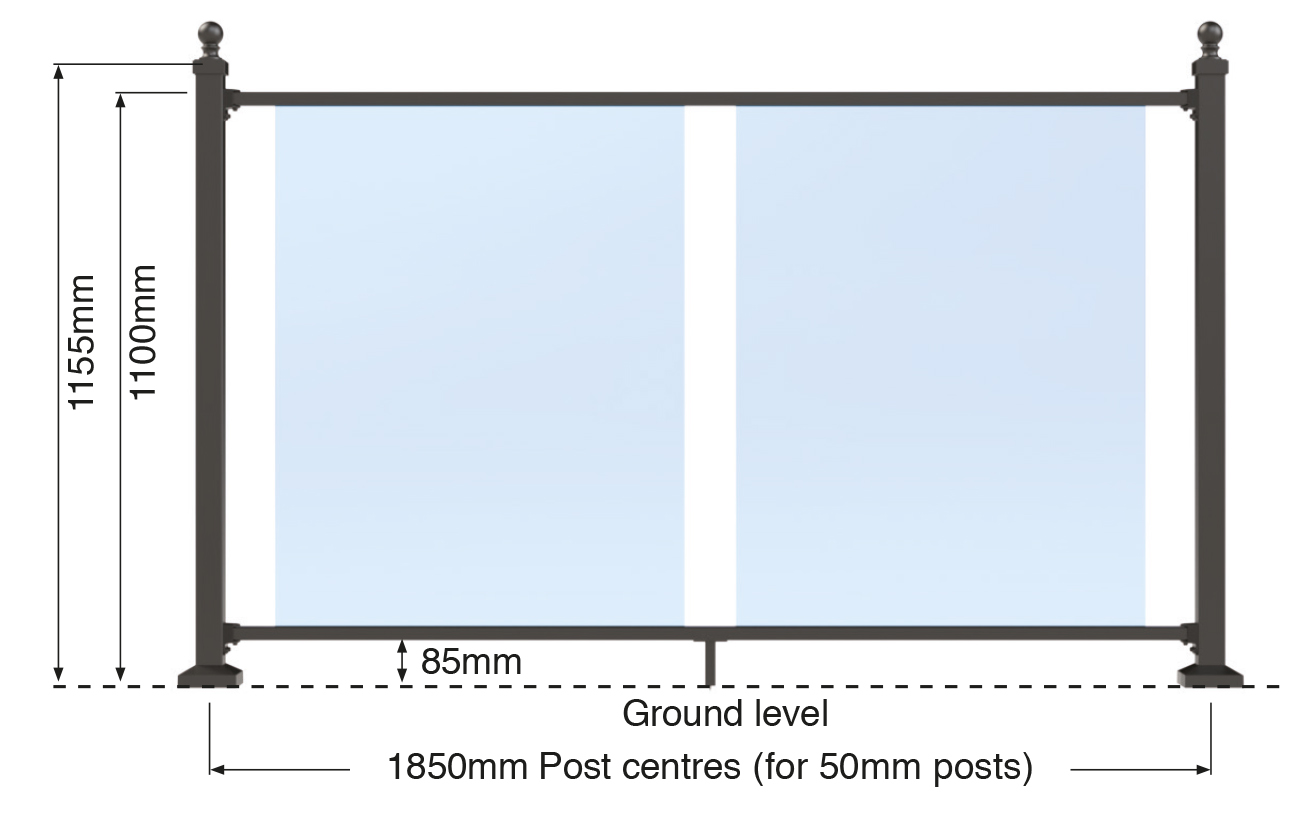

The Fortitude Contemporary system utilises the strength of toughened glass panels paired with a unique aluminium channel fixed by brackets at both the foot and top of each post, with further support provided by a support foot. Glass panels are supplied in one standard size at 8mm thickness (1000 x 760mm) which ensures the correct rigidity and integrity of the system. Panels can be fixed to either 50mm or 75mm posts depending on preference. Please note that post centres will vary depending on the size of post used.

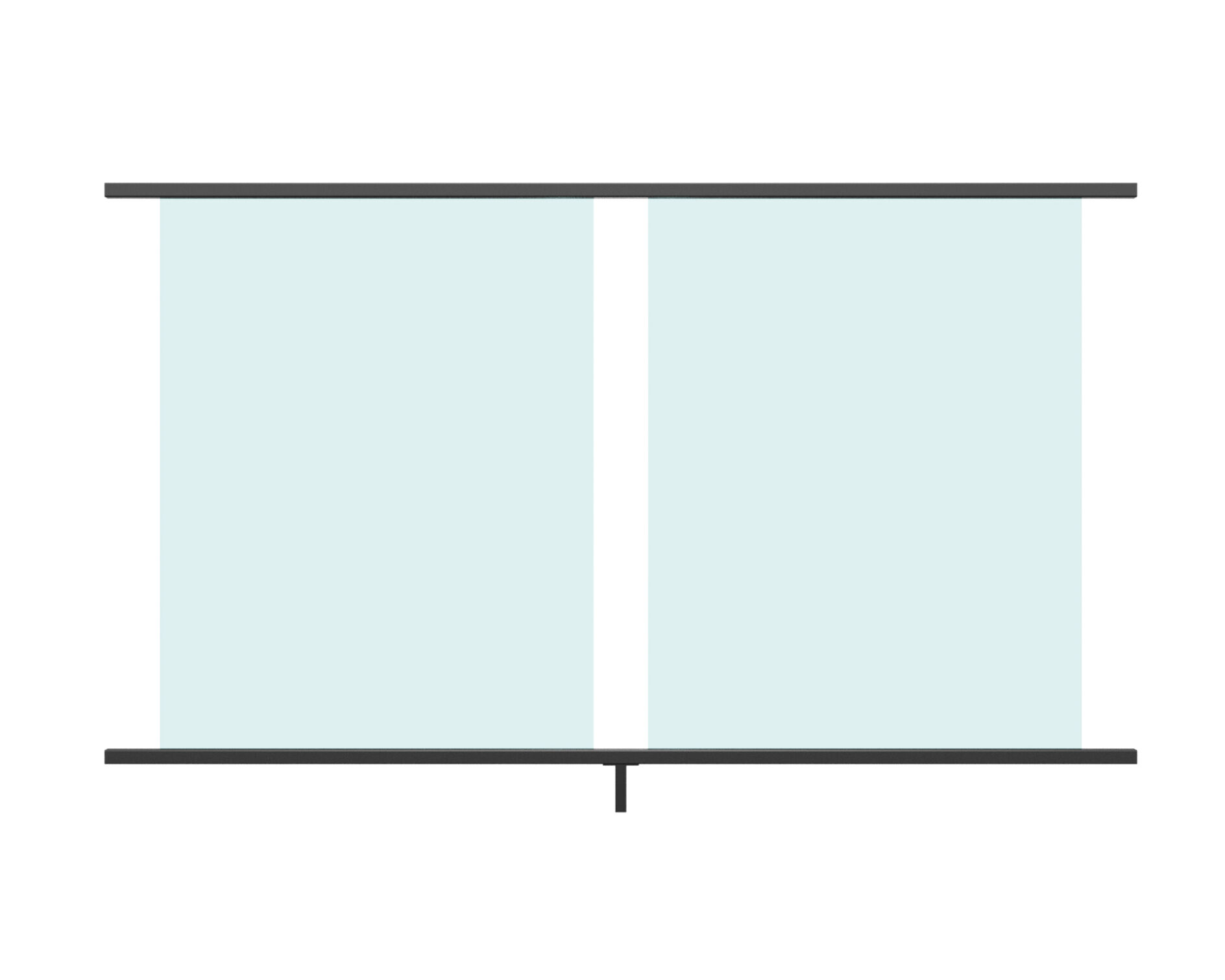

To achieve this look, order; 1x Channel Kit, 2x 8mm Glass Panels and 1x Railing Bracket set (pack of 4).
Glass Panel 1000 x 760mm x 8mm
(x2 required per channel kit).
1855087601000

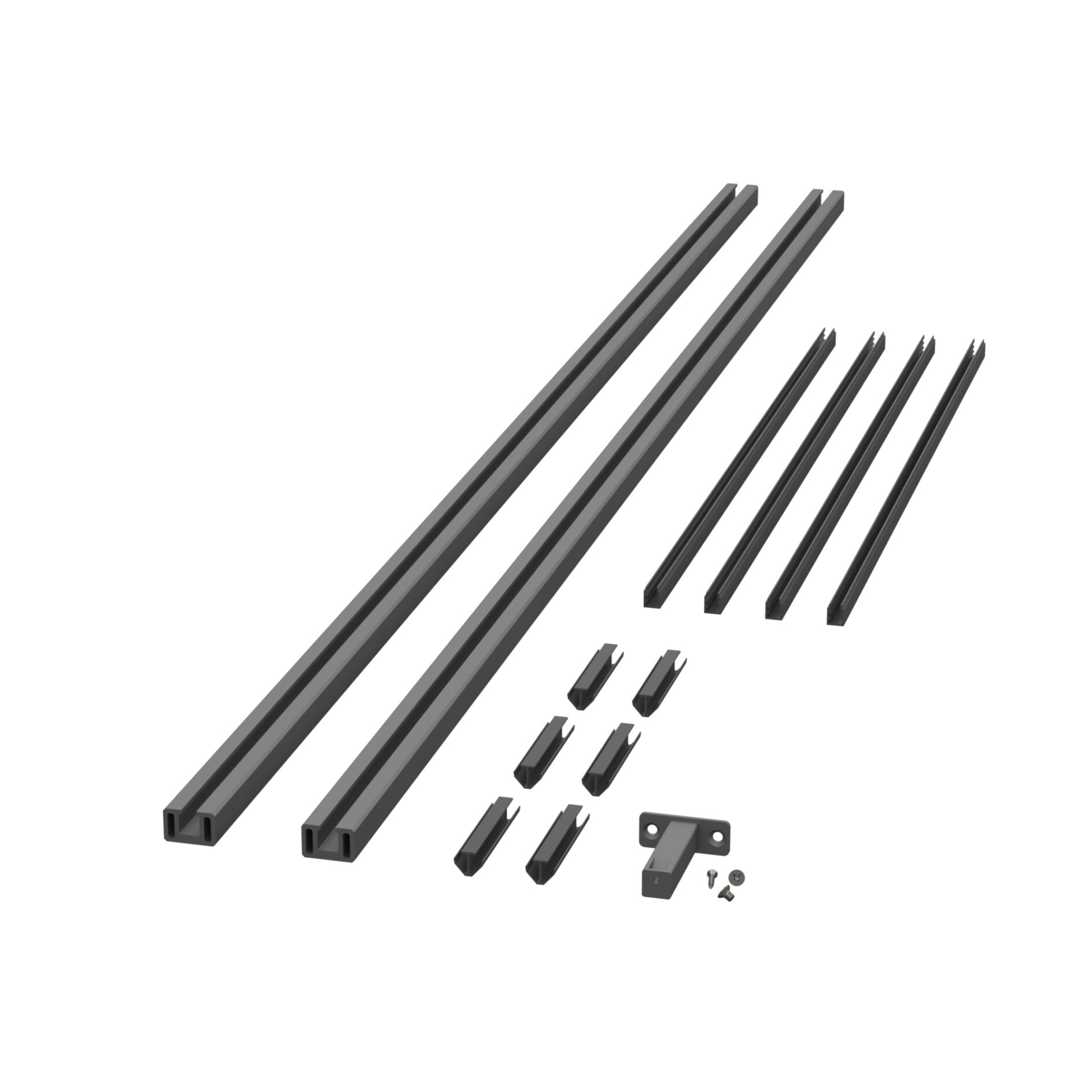

Channel kits include gaskets & wedges for increased reinforcement.
Pack of 4 brackets sold separately (see below).
| Dimensions | Black Sand Finish |
|---|---|
| 1800 mm | length |
| 25 mm | height |
| 38 mm | width |
| Prod. Code | 59AC3818BS |
Posts

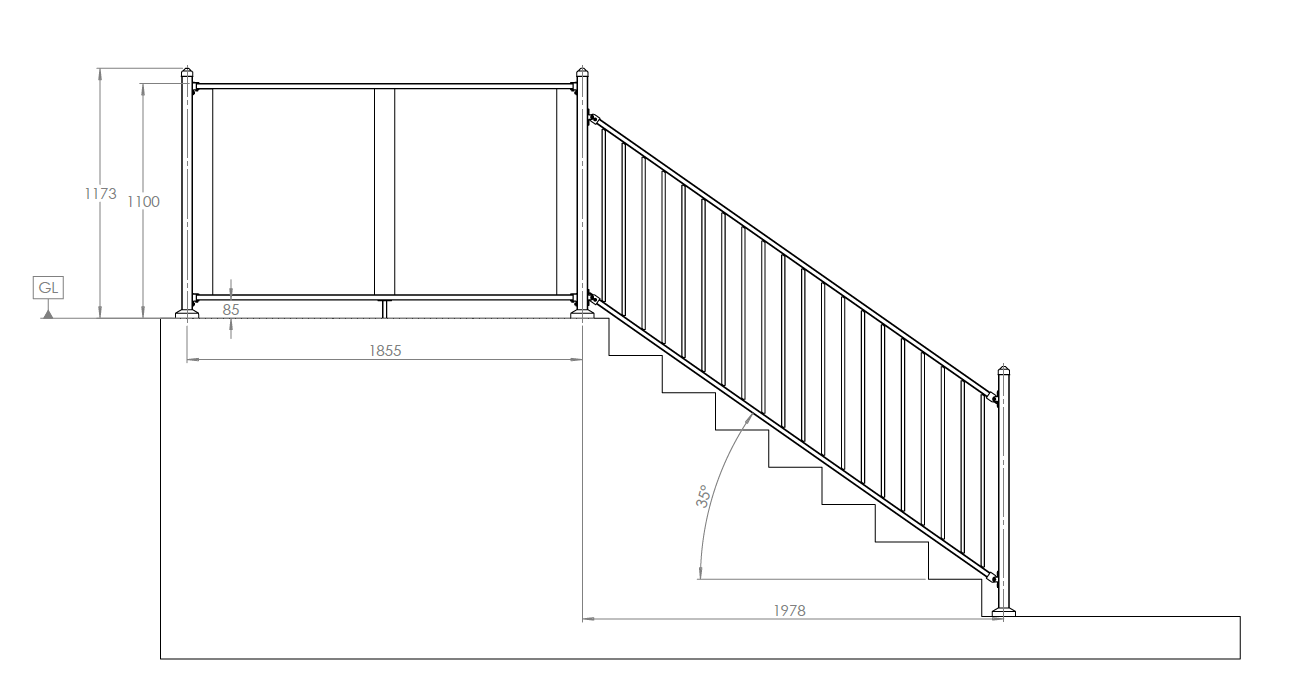

Fortitude Contemporary Application Scenarios and Dimensions
Bolt-down posts
Posts are available in 50mm and 75mm widths, both 2.3mm thick, and supplied with the base cover plate and protective cap.
These DO NOT come with pre-drilled holes for brackets, these must be drilled by the installer.

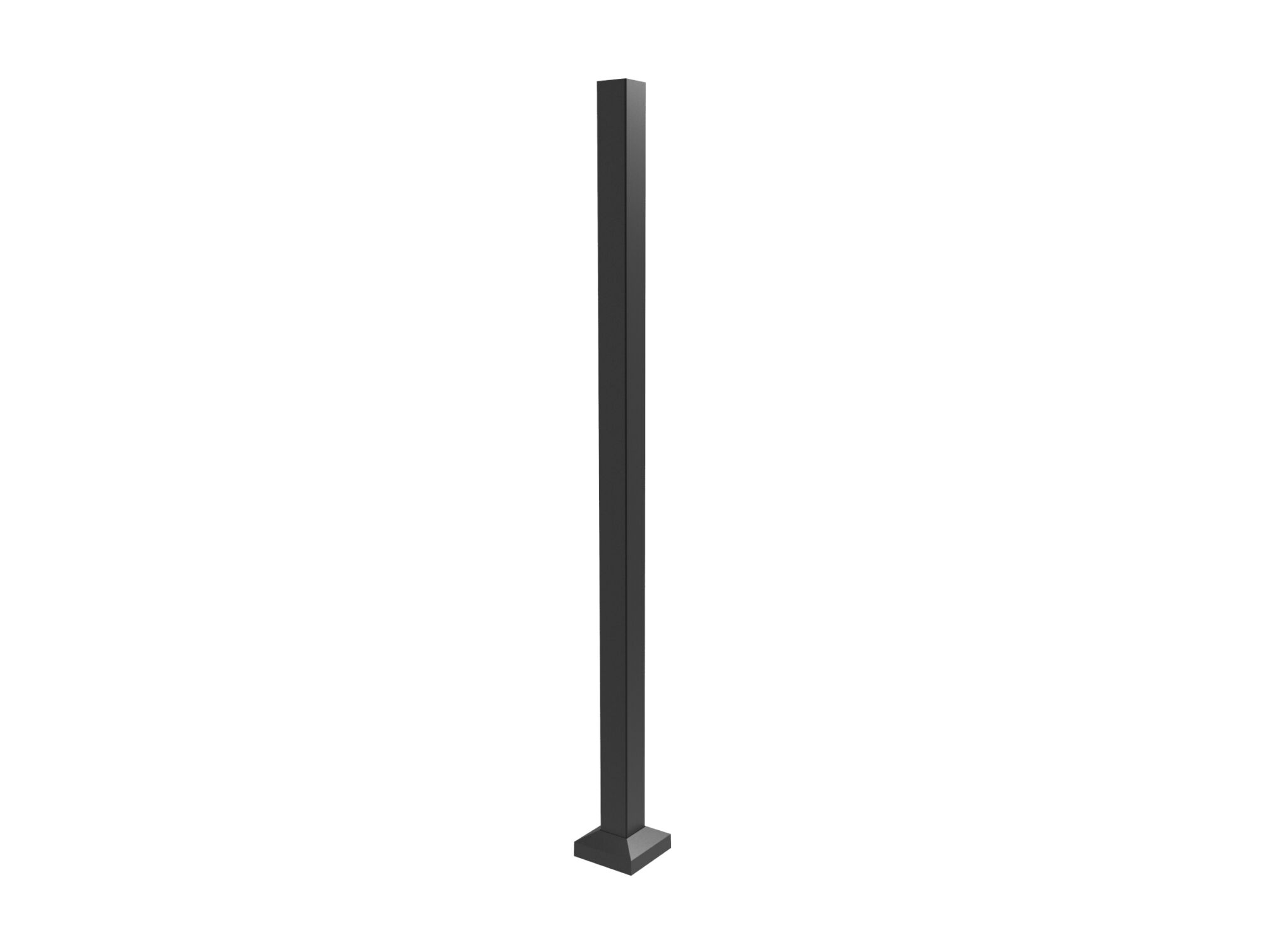

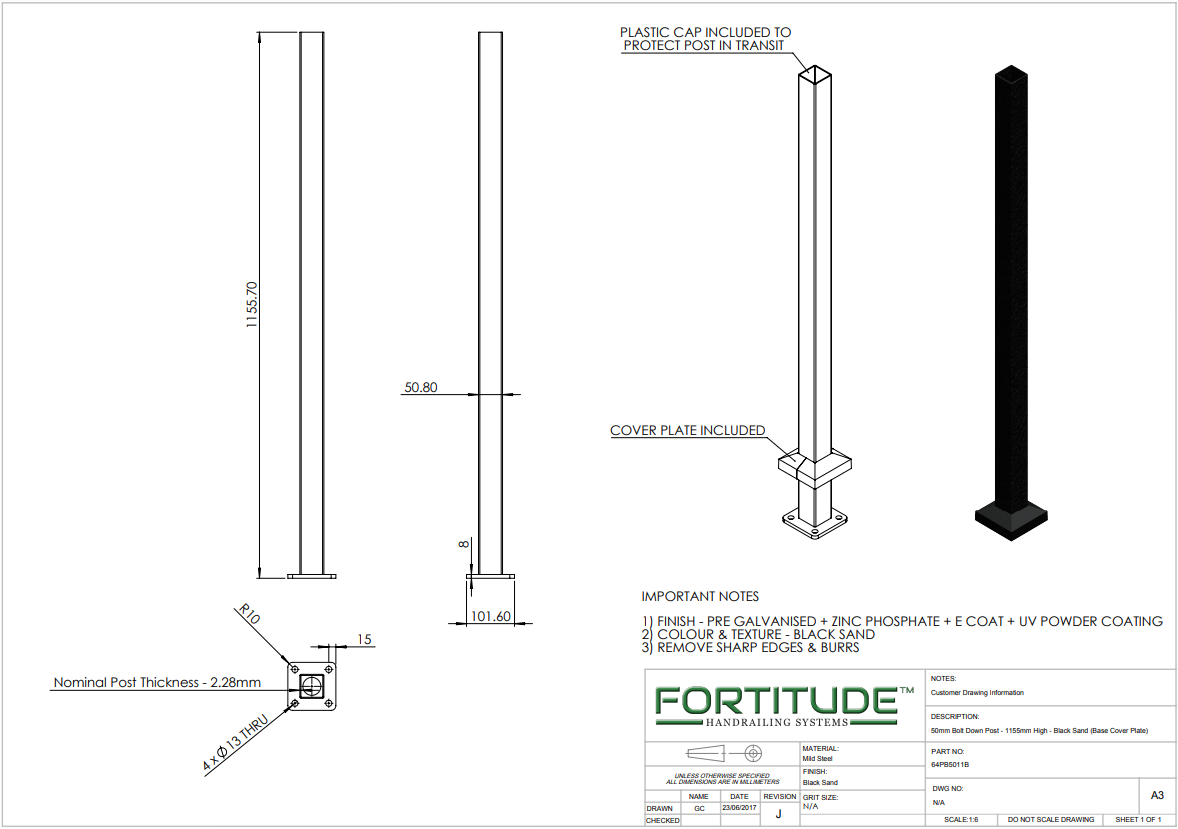

Bolt Down Posts 1155mm
Available in 50mm and 75mm widths
| Material | Thickness | Code |
|---|---|---|
| Steel | 50mm | 64PB5011B |
| Steel | 75mm | 64PB7511B |
Concrete-in Posts
Posts are available in 50mm and 75mm widths, both 2.3mm thick, and supplied with protective cap.
These DO NOT come with pre-drilled holes for brackets, these must be drilled by the installer.

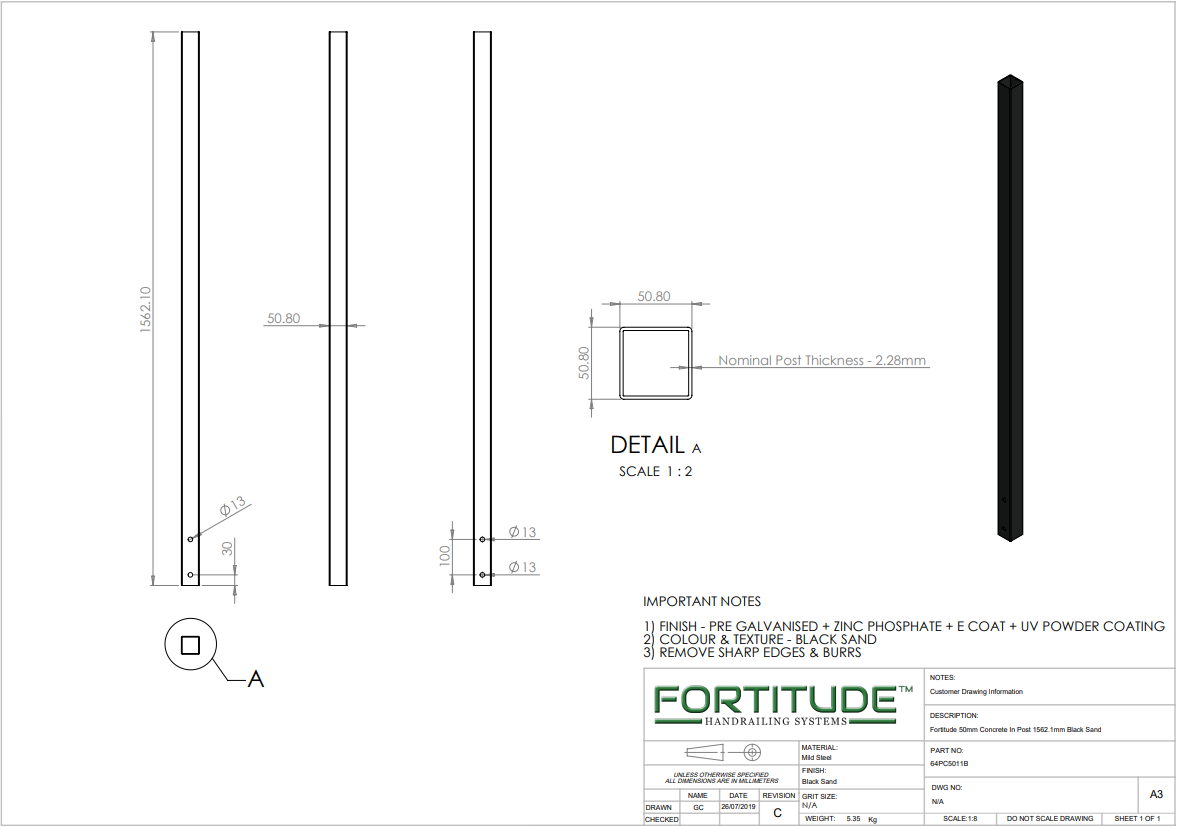

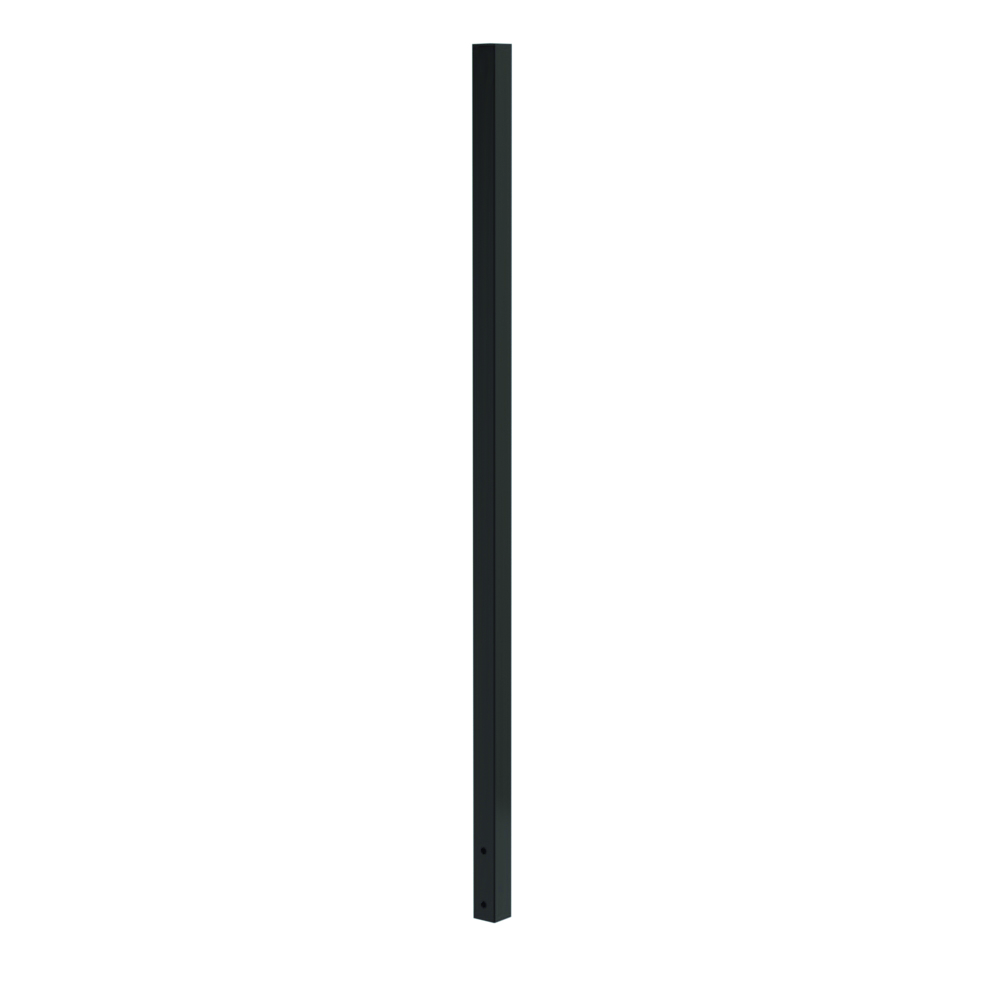

Concrete-In Posts 1562mm
Available in 50mm and 75mm widths
| Material | Thickness | Code |
|---|---|---|
| Steel | 50mm | 64PC5011B |
| Steel | 75mm | 64PC7511B |
Side-fix Posts
Posts are available in 50mm and 75mm widths, both 3mm thick, 50mm posts supplied with fascia brackets and four screws to assemble (75mm pre-drilled hols only, bolt direct to fascia).
These DO NOT come with pre-drilled holes for brackets, these must be drilled by the installer.

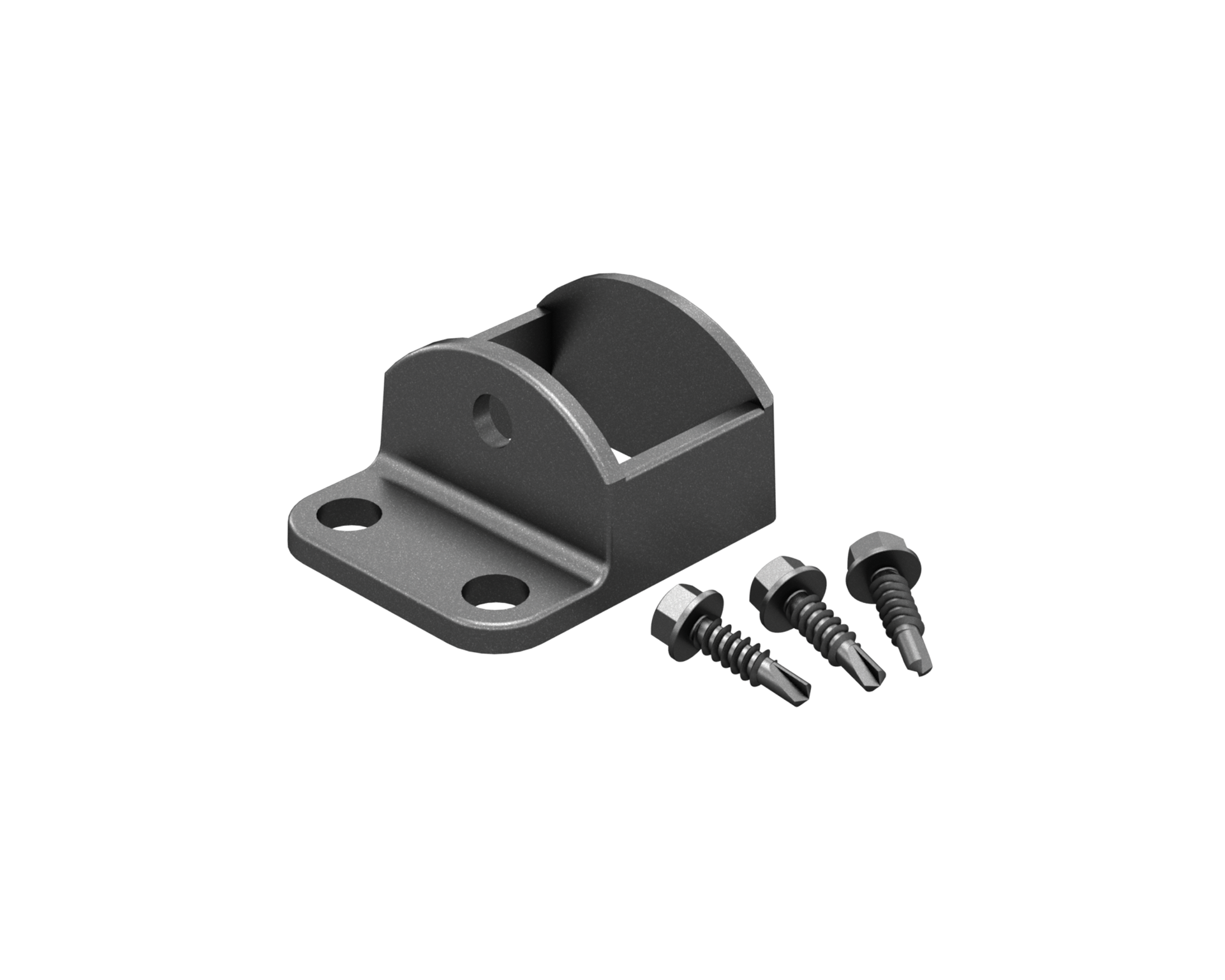

Railing Bracket
Supplied as a pack of four, with 12 self-drilling screws.
| Colour | Dimension | Code |
|---|---|---|
| Black Sand | 25 x 38mm | 59BR3825BS |
Fortitude Contemporary

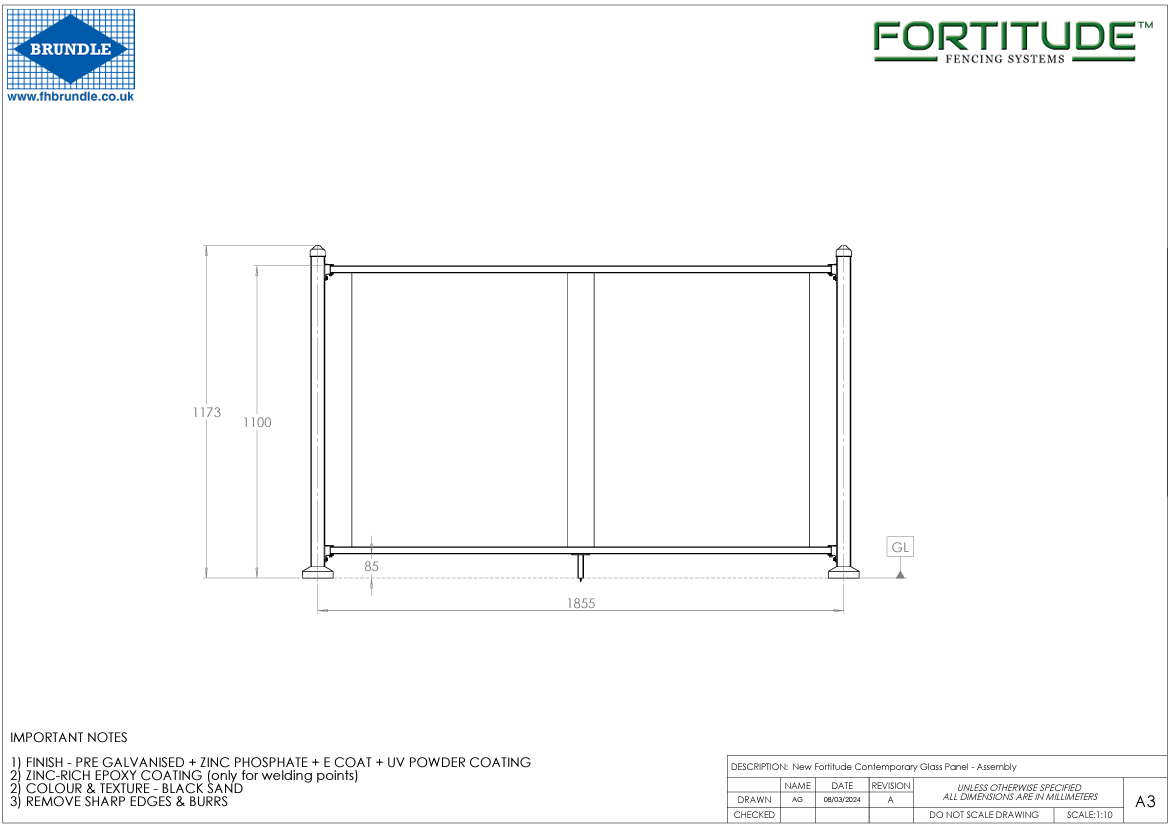

System Diagram
Fortitude Bolt-down Post Assembly Diagram
Fortitude Concrete-in Post Assembly Diagram

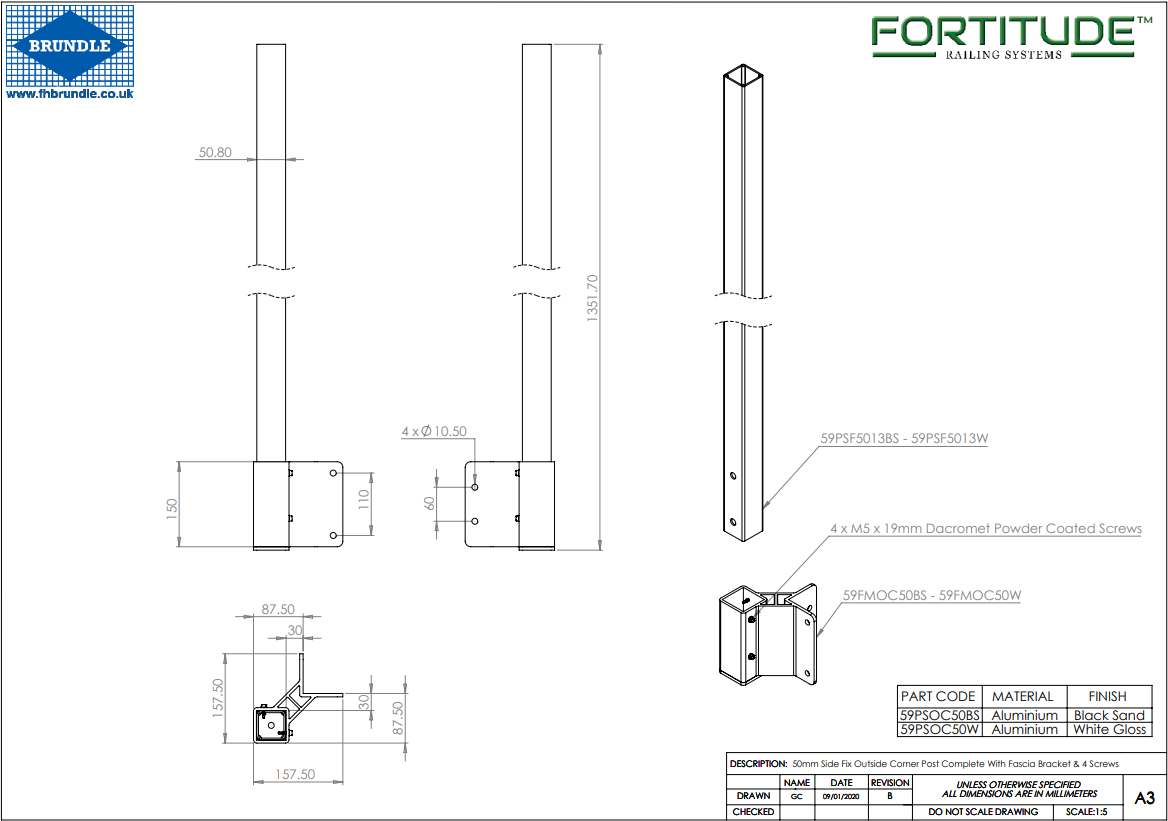

Fortitude Side-fix Post Assembly Diagram
