Introducing Magnus from Locinox

Now available from F.H.Brundle

Locinox Magnus is transforming the operation of pedestrian gates. It is the first motorised hinge, without the need for complex safety sensors or sophisticated wiring with the added benefit of enhancing privacy. At the same time, there is increasing demand for access control for improved security and versatility.

Locinox Magnus, is a smart, energy-efficient access control solution designed for gates allowing you to add flexible access control to residential, commercial and industrial pedestrian gates easily. Combined with a locking system, this intelligent solution ensures automatic opening, reliable closing and power supply for all accessories, all in one integrated system suitable for pedestrian gates up to 1500mm, 200Kg in weight and accommodates angles of up to 180 degrees.

What does all that’s mean? A safer more convenient experience for all, offering greater independence to those with reduced mobility.

The high-performance, brushless and reversible agnus motor ensures safety, and ease of installation and long-term reliability, even in high0use environments. This allows every professional to offer a comfortable and secure pedestrian gate solution.

Magnus motorised hinge and gate closer are available in a silver anodised and black finish to suit your needs.

Highly robust and vandal-resistant design
Push & Go: Start opening the gate manually and the motor automatically takes over for a smooth and comfortable opening.
Automatic opening: In combination with access control, Magnus opens the gate automatically.
Always closed: You decide how long the gate remains open. After that, Magnus ensures a guaranteed closure.
Integrated obstacle detection: Is something or someone blocking the closure? Magnus reopens the gate and closes again after a few seconds.

Maintenance-free: The brushless motor works quietly and smoothly without friction. This way, the motor is maintenance-free and a long lifespan is guaranteed.
Reversible motor: This allows manual intervention without blocking or damaging the motor.
No safety sensors required: Thanks to the standard configuration in low-energy, Magnus does not need any additional safety sensors.
Power supply for accessories: Magnus is not only compatible with access control and lighting, it also provides power supply.
Quick and easy installation

Black

RAL 9005

Anodised

SILV

Discover how Magnus provides unprecedented comfort and accessibility

From hospitals and schools to bicycle sheds, public spaces and private homes, Magnus takes pedestrian gates to the next level. Especially in places where ease of use, safety and design are crucial. Be inspired by these first realisations.

Magnus for the Gate Manufacture

Easy to integrate and future-proof

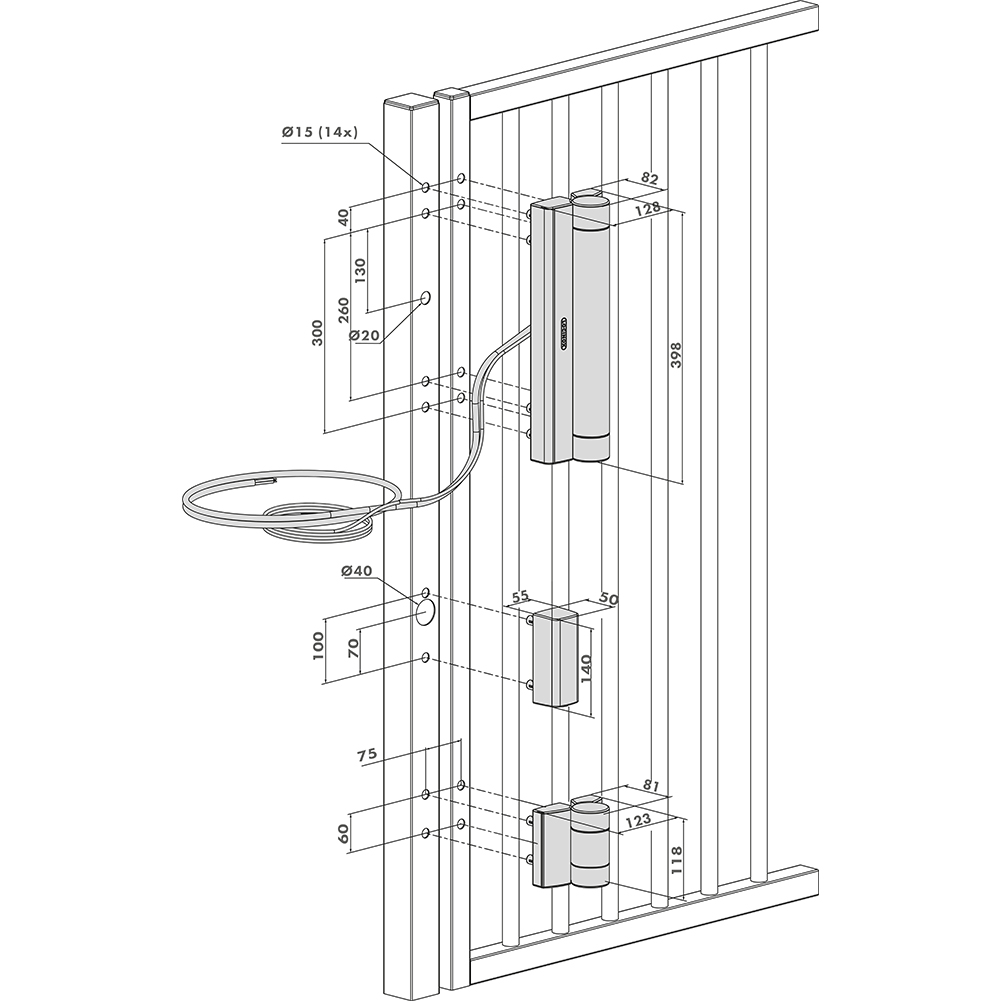

Magnus is the first fully integrated, motorised hinge that can be seamlessly incorporated into existing production processes and gate lines thanks to simple profile preparation. The smart hole pattern allows for modular gate preparation compatible with either a hydraulic gate closer/hinge combination like the Mammoth180 or -HD, or Magnus.

In the standard (low-energy) Magnus setup, no additional safety sensors are required. This makes Magnus not only easy to install and safe to use, but also a cost-efficient solution.

Moreover, this all-in-one solution is fully compatible with access control and lighting systems. Magnus can communicate with and power three input and three output ports.

Magnus for the installer

Easy installation, intuitive setup, zero maintenance

Magnus is quick and straightforward to install, both mechanically and electrically. Thanks to Quick-Fix, mounting the hinge onto the gate is effortless. And the wiring? Just as simple: connect the motor cable to the mains via the included connection box.

The entire installation process is logical, predictable, and fast. This allows you to plan multiple gate installations per day or free up time for new projects. Magnus is a fully integrated system, requiring no extra safety sensors in standard configuration. After installation, you leave the site with peace of mind. The brushless and reversible motor requires no maintenance, is nearly frictionless, and wear-free – long-term reliability guaranteed.

FAQ’s

Are additional sensors required for safe operation?Sam Lough2025-12-02T09:48:14+00:00

Are additional sensors required for safe operation?

No, in standard configuration with low-energy, Magnus works safely without additional sensors. Thanks to the built-in obstacle detection
and the energy-efficient operation, the gate always opens and closes safely and in a controlled manner. Always check the applicable local building codes to verify compliance for your installations.

Does the gate also work without power?Sam Lough2025-12-02T09:47:50+00:00

Does the gate also work without power?

Yes, in the event of a power failure, the gate can always be operated manually with Magnus. This way you remain assured of access.

How does Magnus integrate with other devices or systems?Sam Lough2025-12-02T09:47:23+00:00

How does Magnus integrate with other devices or systems?

MAGNUS features three configurable inputs and outputs, making it easy to connect to lighting, electric or magnetic locks, and access control. The system also provides power for these accessories itself, which enables smooth and direct interaction.

What happens if someone gets in the way or pushes?Sam Lough2025-12-02T09:42:43+00:00

What happens if someone gets in the way or pushes?

Locinox Magnus is equipped with a push-and-go function and smart obstacle detection. If you gently push the gate open, the motorized hinge automatically takes over. If someone is in the passageway or actively pushes in the opposite direction while the gate is moving, the system detects it immediately. The gate stops and returns, and only moves further once the passage is completely free and safe.

Locinox Magnus Motorised Hinge & Gate Closer
