Why Choose Mesh Panel Fencing?
High-Security & Versatile Mesh Fencing Systems
Built for durability, engineered for security – trusted supply for homes, contractors, and industrial sites across the UK.
Whether you need safe, sleek boundary fencing, fast-fitting kits for a commercial installation, or anti-climb rigid mesh for a high-security industrial site, F.H.Brundle delivers UK-wide stock with same-day dispatch and nationwide support. Explore high-rigidity V-mesh, twin-wire (656/868), rolled-top, and bespoke gate options built to withstand weather, wear, and forced entry.
What is Mesh Panel Fencing?
Mesh panel fencing is a modern perimeter barrier system made from heavy-gauge, galvanised steel wire welded at intersections to form a rigid grid structure. Unlike traditional flexible chain-link roll fencing, mesh fencing is supplied in prefabricated solid panels attached to steel posts using specialised clamps or brackets.
Why choose Mesh Panel Fencing?
Mesh panel systems offer significant advantages over traditional timber or chain-link fencing, balancing aesthetics, security, and structural longevity:
• Vandal & Impact Resistance: Heavy-gauge galvanised steel wires welded at every intersection prevent sag and resist cutting attempts.
• Unobstructed Sightlines: High visibility through the panels allows security cameras and site managers clear line-of-sight across perimeters.
• Corrosion Resistance: Finished with robust galvanised and polyester powder coatings (RAL colors, including standard RAL 6005 Green and RAL 9005 Black) to withstand UK weather.
• Rapid Installation: Modular posts, specialised clip systems, and pre-welded panels streamline the installation process for contractors.
Mesh Panel Fencing for Fence Installers & Trade Contractors
We understand that time on-site equals profit. Our mesh panel systems are engineered for straightforward alignment, fast clip/clamp fixing, and long-term durability.
• Turnkey Fencing Kits: Pre-packaged posts, clip fittings, security fasteners, and matching single or double leaf mesh gates.
• Bespoke Gate Forms: Concrete-in and bolt-down single or double mesh gates manufactured to your exact opening dimensions.
• Convenient Delivery: Free mainland UK delivery on orders over £150 (ex VAT) directly to your yard or job site.
Mesh Panel Fencing for Industrial, Commercial & High-Security Sites
Protect high-value machinery, utility sites, warehouse perimeters, and public infrastructure with heavy-duty mesh paneling designed to withstand forced entry and impact.
• Twin-Wire Rigid Mesh (656 / 888 Systems): Heavy gauge horizontal and vertical steel wires offer high resistance to cutting and vandalism.
• Anti-Climb Profiles (358 Mesh / MeshMaster): Narrow aperture spacing prevents foot-holds and finger-holds while retaining line-of-sight for CCTV monitoring.
• Versatile Mounting: Suitable for concrete-in ground installation or base-plated bolt-down installations on hard surfaces.
What are the choices when it comes to Mesh Panel Fencing Systems?
When choosing a mesh panel fencing system, modern perimeters require balancing physical resistance, sightlines, safety, and budget. Today’s welded wire mesh options range from lightweight, profiled V-mesh designed for quick boundary demarcation to heavy-duty twin-wire and dense 358 anti-climb profiles built to resist forced entry and severe impact. Whether your project demands safe, rolled-edge profiles for child-friendly environments, wide 3-metre spans for rapid site installation, or sports-rebound panels designed for high-impact ball games, selecting the right system comes down to matching the mesh geometry and wire gauge to your specific operational risk and site aesthetics.
| System | Key Feature | Ideal For |
|---|---|---|

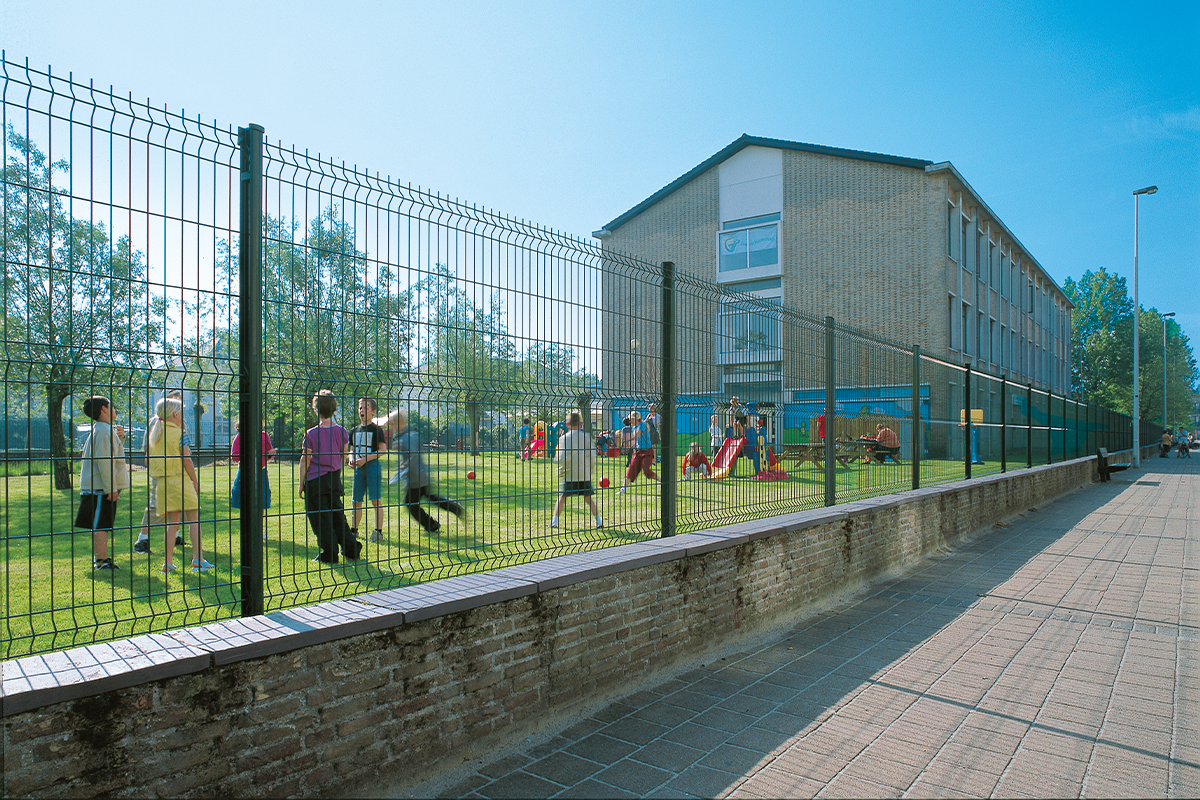

| Nylofor 3D XL | Extra-wide 3-metre panels with pressed V-shaped rigidity beams, requiring up to 20% fewer posts and fittings for rapid installation. | Large commercial perimeters, warehousing parks, logistics hubs, and expansive industrial yards. |

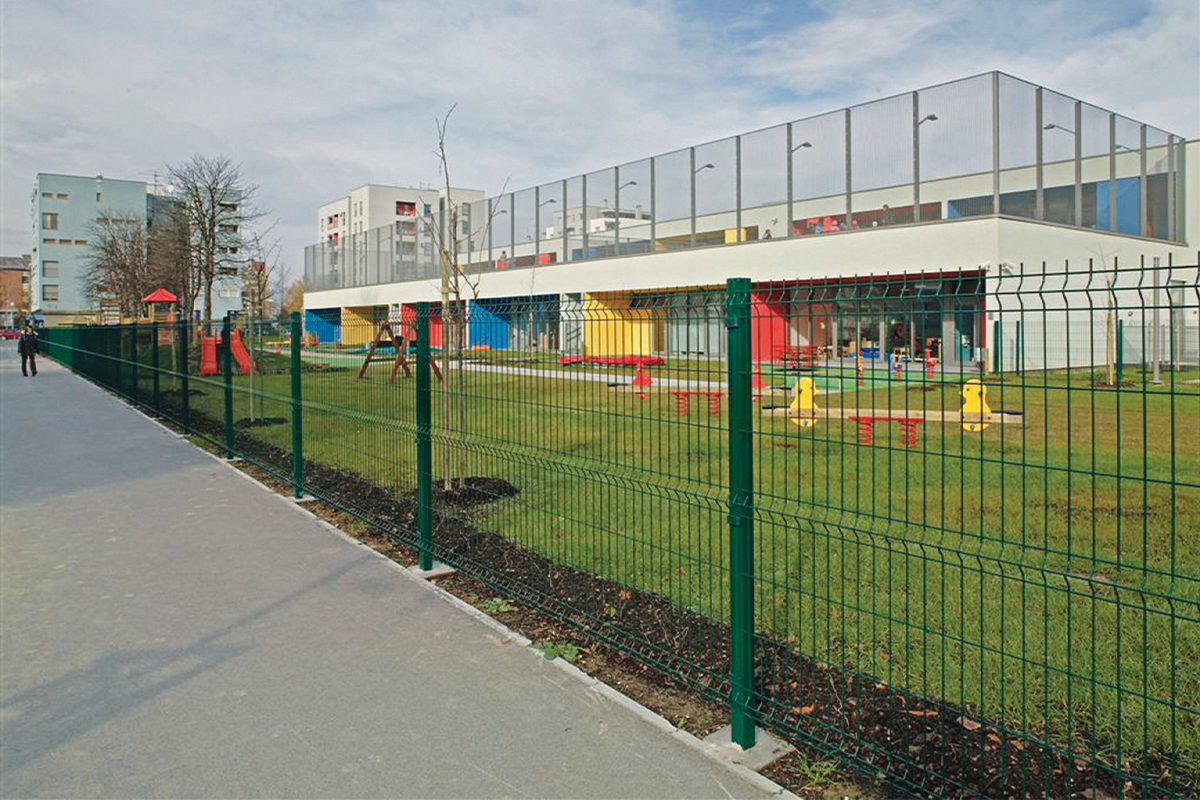

| Nylofor 3D Plus | Heavy-duty 3D profiled panel with thicker wire diameters and stiffening bends for enhanced rigidity and climb deterrence. | Commercial properties, retail centers, schools, and medium-security industrial boundaries. |

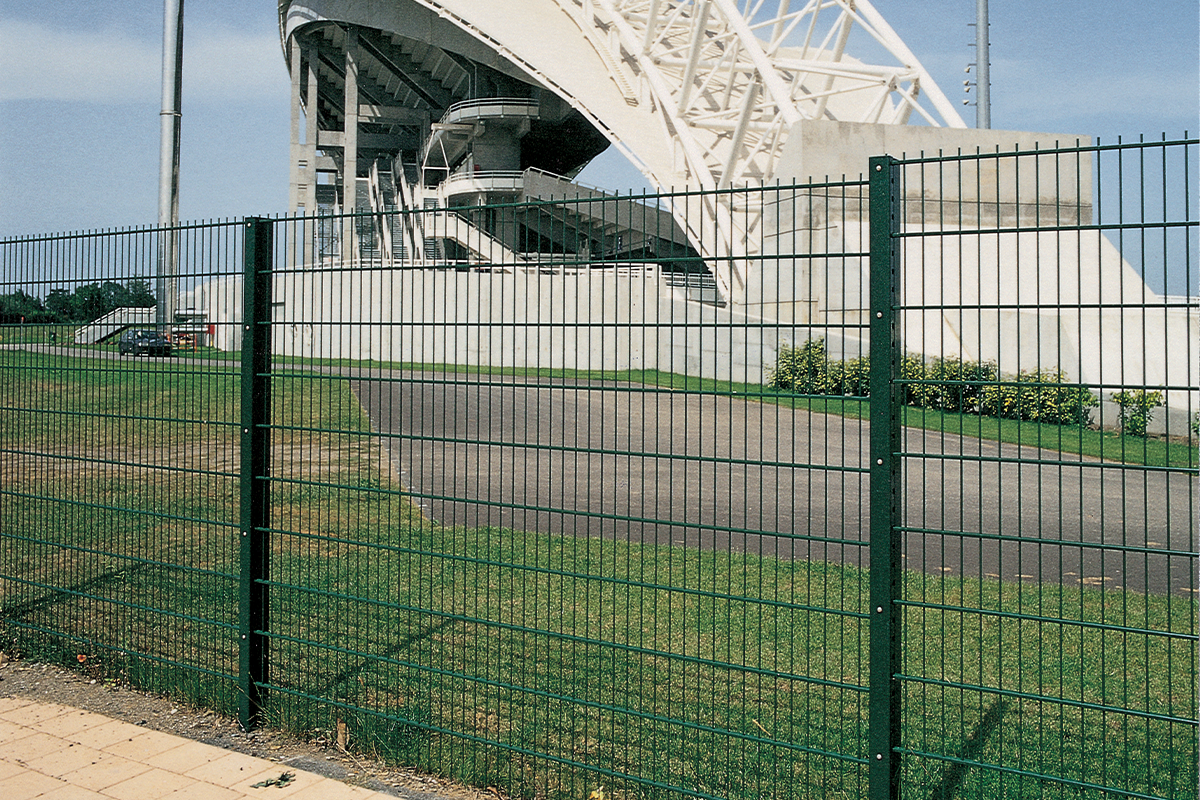

| Nylofor 2-D | Flat rigid panel design using heavy twin horizontal wires welded to a single vertical wire for clean visual lines and high stability. | Public buildings, factories, workshops, schools, and sports ground perimeters. |

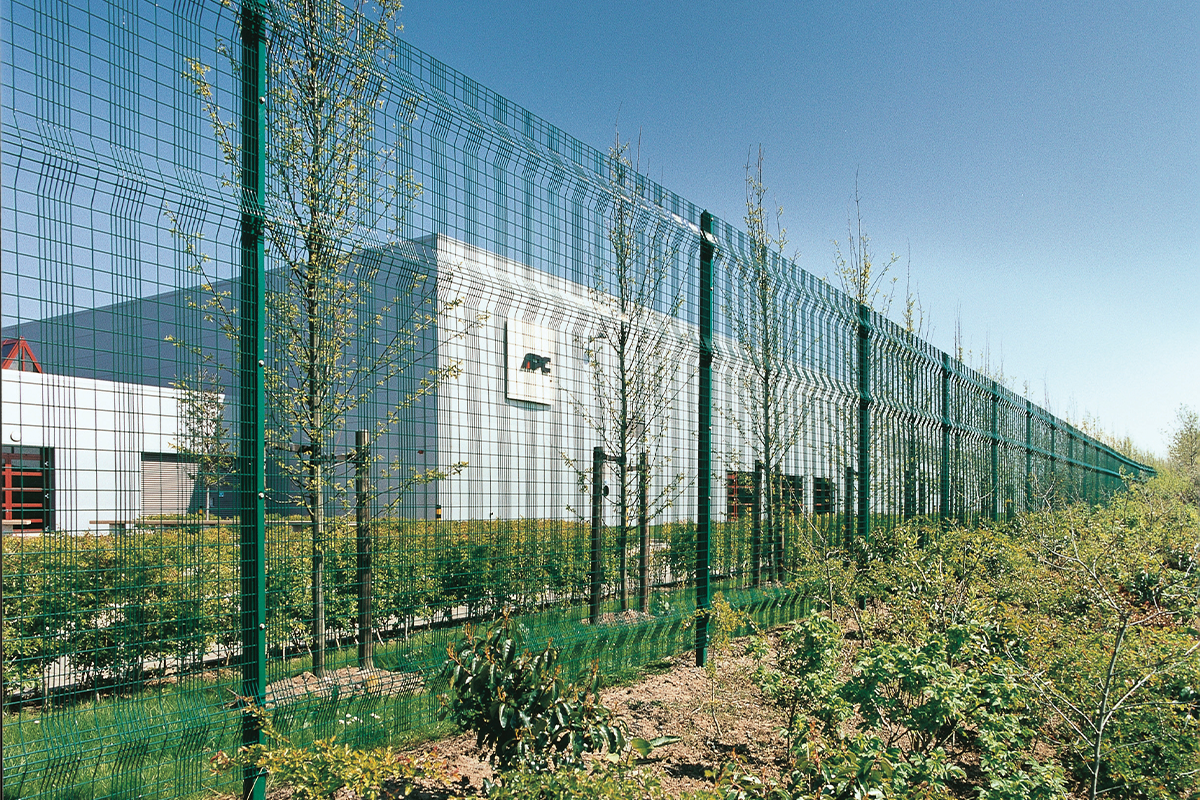

| Paladin/Palex | Distinctive aesthetic featuring a combination of narrow and wide vertical wire spacings alongside V-beams for clear sightlines and vandal resistance. |
High-visibility corporate grounds, civic amenities, parks, and architectural commercial boundaries.
|

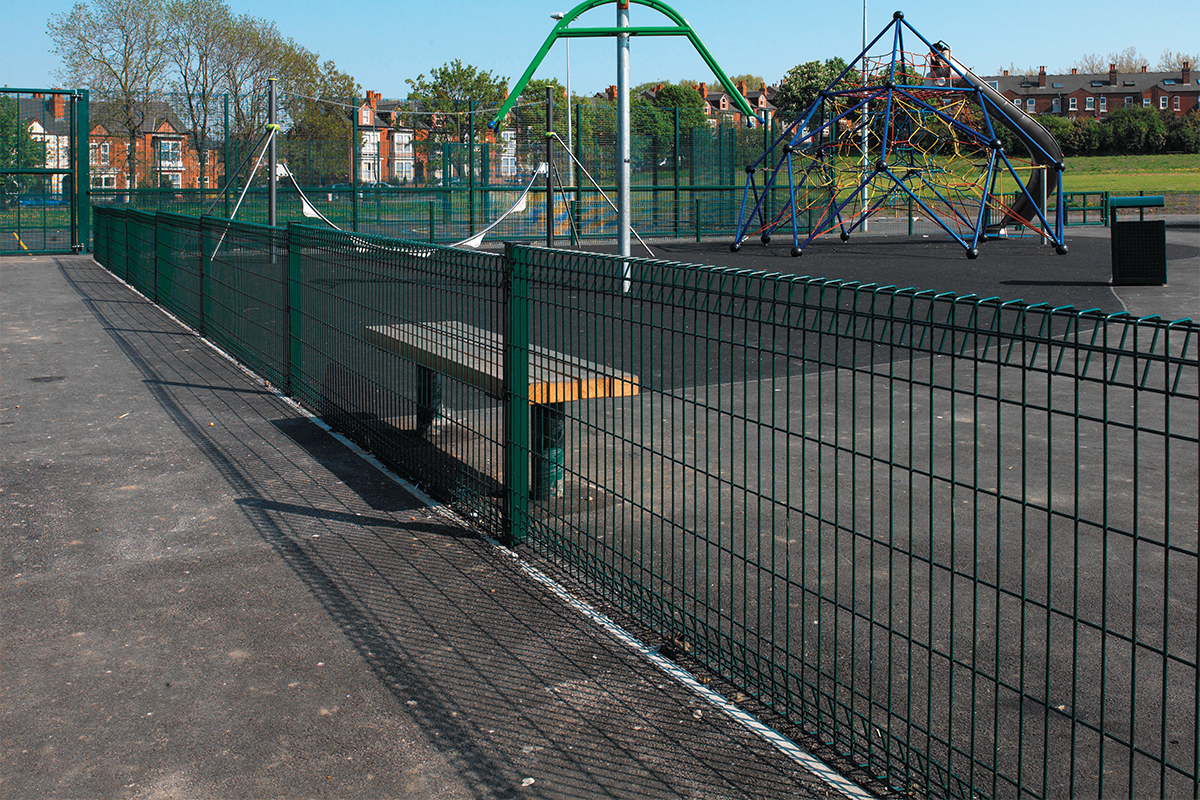

| Roll Top / Safe Top | Rolled triangular beam sections at both top and bottom edges with no exposed wire ends or sharp points for maximum safety. | Primary schools, playgrounds, sports fields, and public parks. |

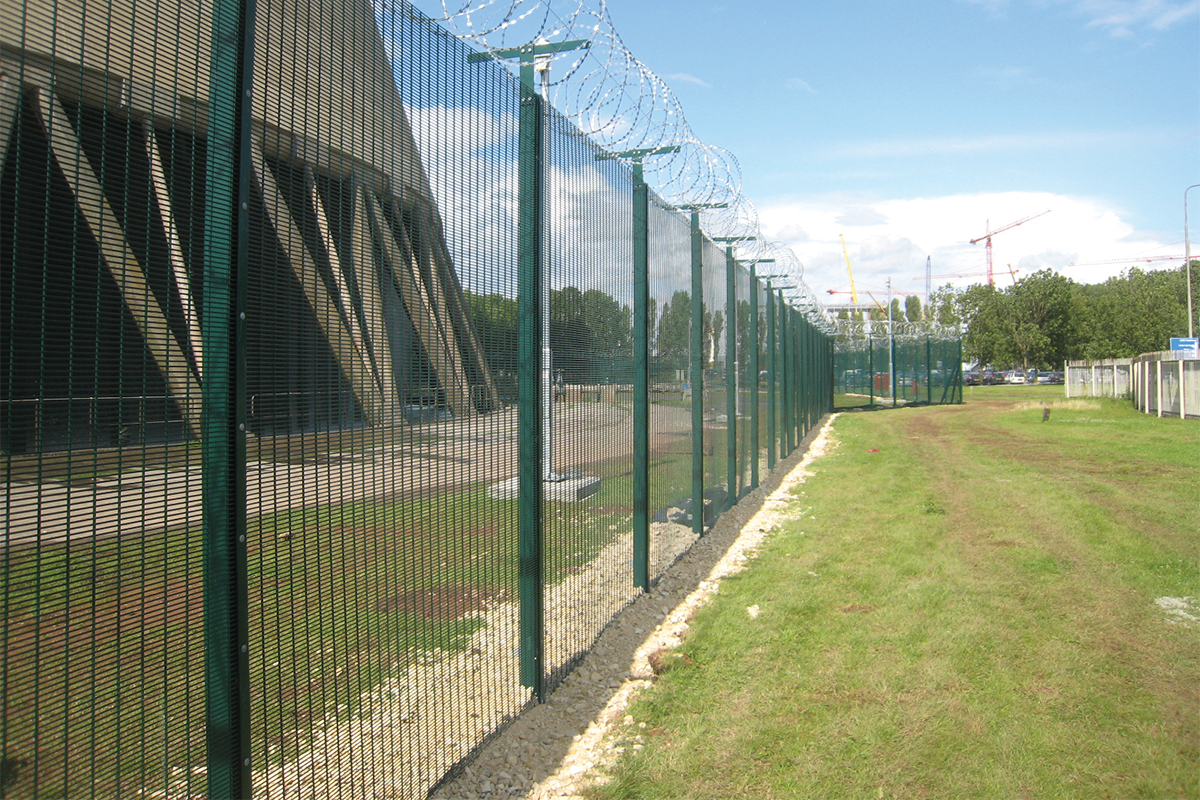

| Securifor 358 | Premium high-security 358 anti-climb mesh with ultra-dense 76.2mm x 12.7mm apertures that prevent foot/finger holds and wire-cutter intrusion. | High-risk industrial infrastructure, utilities, data centers, government facilities, and critical assets. |

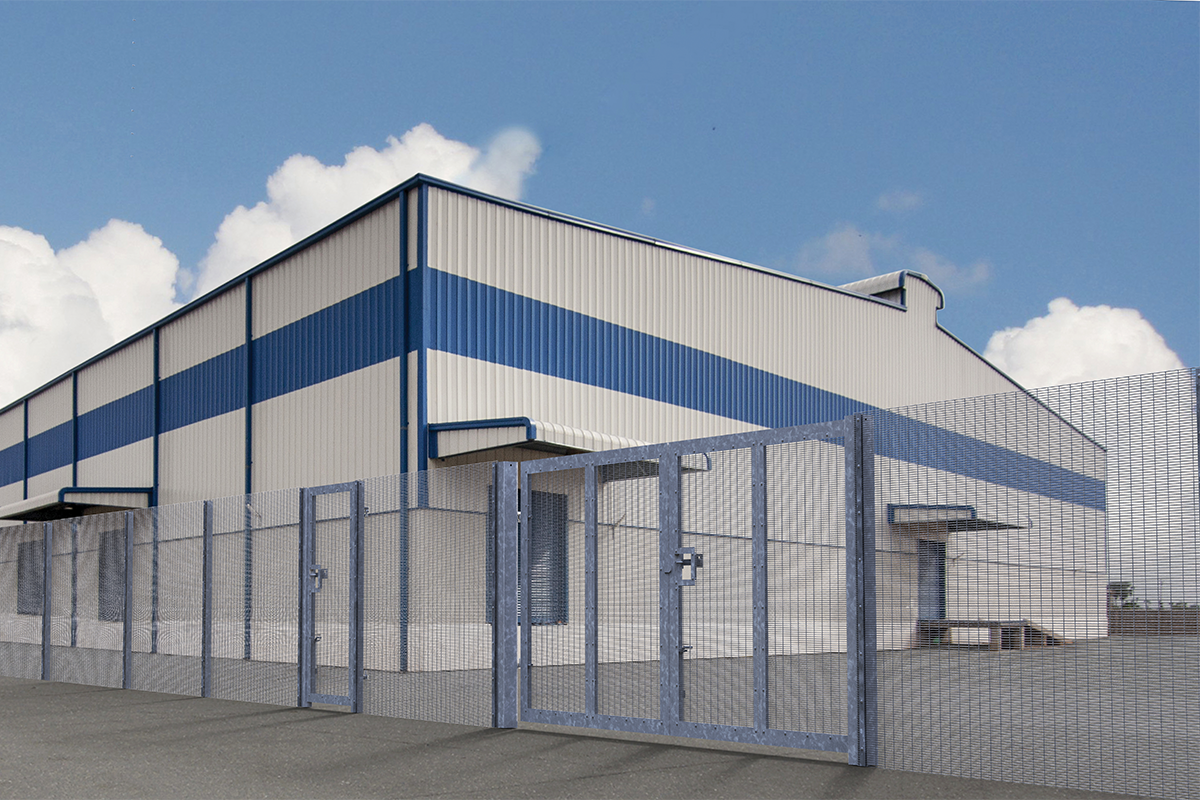

| MeshMaster™ 358 | F.H.Brundle’s high-performance anti-climb system featuring toe/finger-proof wire spacing and heavy-duty protective galvanised coating. | Commercial perimeters, industrial compounds, railway boundaries, and anti-vandal security zones. |

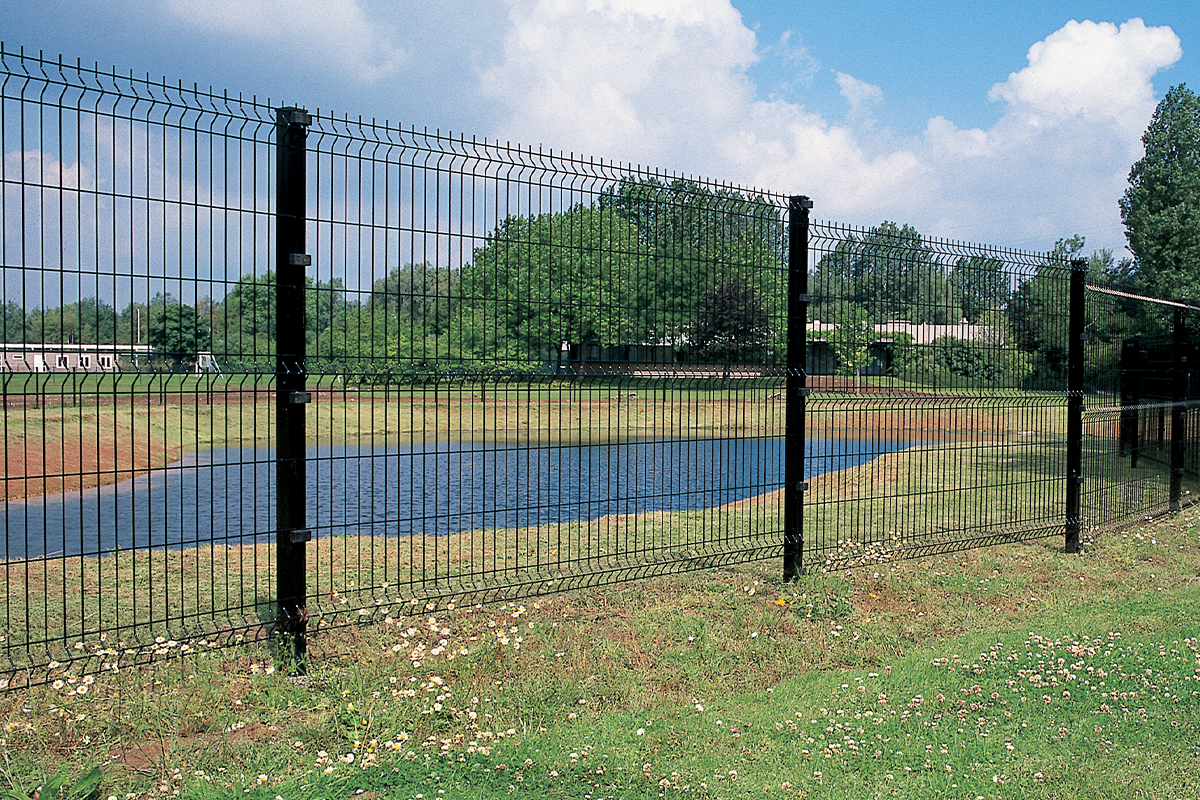

| Twilfix Post System | Specialised tubular post profile with integrated fixing slots for fast, discrete panel attachment without external front plate clamps. | Streamlined professional installations requiring tamper-proof, sleek, and quick post-to-panel assembly. |

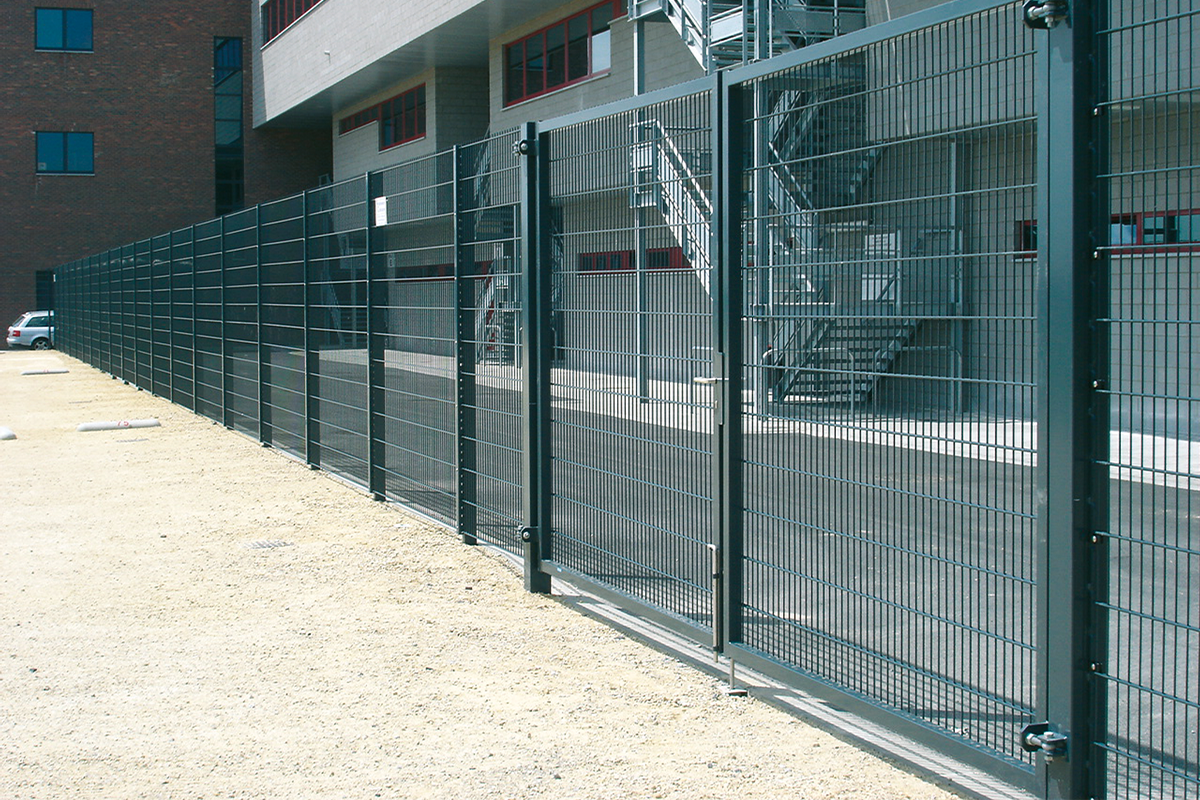

| Nylofor 2-D Super | Reinforced double-wire 8/6/8 profile offering extra lateral rigidity and maximum protection against heavy forced impact and cutting. | High-traffic commercial sites, heavy industrial plants, ball courts, and severe vandal-risk areas. |

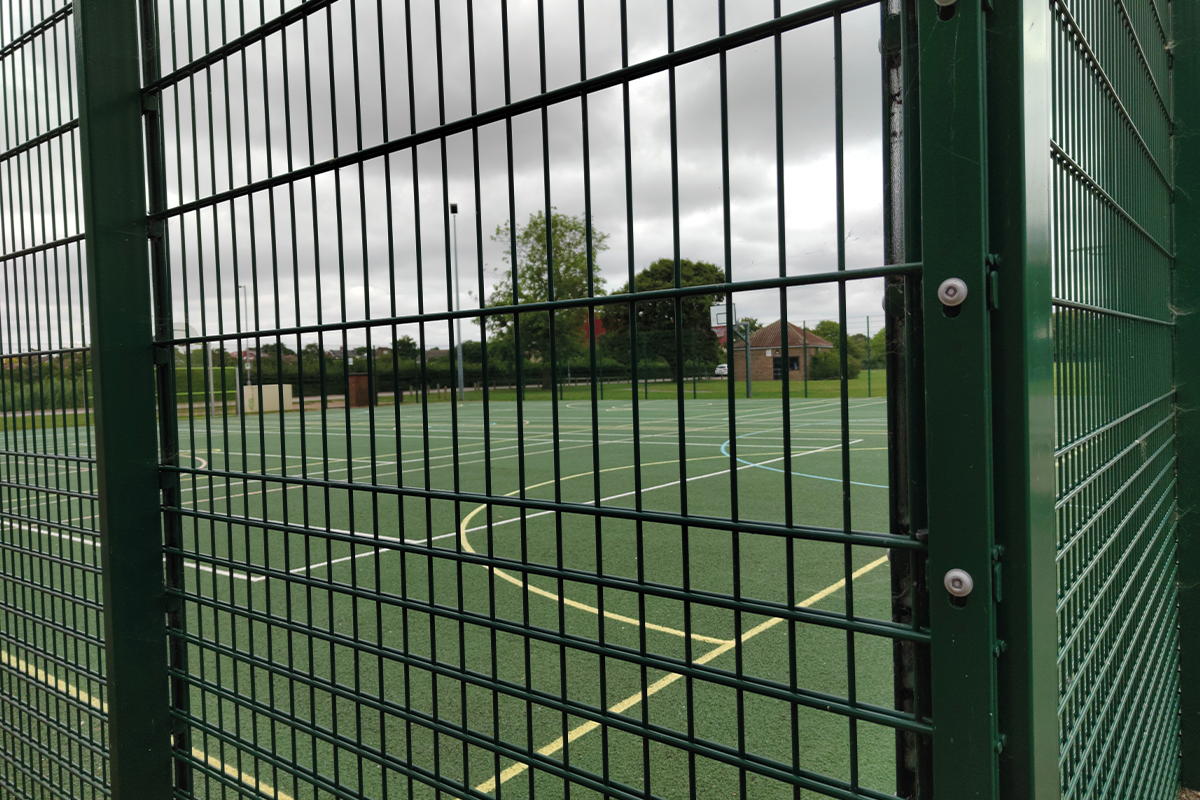

| Rebound 868 | Reinforced twin horizontal 8mm wire design with high-density lower mesh sections engineered specifically to absorb severe sports ball impacts without deforming. | MUGA (Multi-Use Games Areas), football pitches, sports enclosures, and high-impact school playing fields. |
Why Buy Mesh Panel Fencing From F.H.Brundle?
• Unmatched UK Stock Availability: Supply chain excellence with branches spanning the UK (Rainham, Glasgow, Birmingham, Southampton, Ilkeston, Newton Aycliffe, Newport, Burton).
• Compliance & Quality: Manufactured to strict ISO 9001 standards with zinc-galvanised and architectural-grade powder coatings.
• Full Technical Backing: Access downloadable CAD drawings, technical data sheets, and gate order forms online 24/7.
Why is Mesh Panel Fencing becoming more popular?
Mesh panel fencing has seen a massive surge in popularity across commercial, and industrial applications—largely replacing traditional options like timber or chain-link. Its popularity comes down to several key factors:
• Superior Durability & Low Maintenance: Steel panels are hot-dip galvanised and polyester powder-coated (e.g., BS EN ISO 1461 standards). Unlike timber fences, they won’t rot, warp, splinter, or catch wind damage, and unlike chain link, they don’t sag over time.
• Cost-Effective Security: Rigid welded wire panels (such as 656, 868 twin wire, or anti-climb 358 mesh) offer high structural strength, anti-cut profiles, and anti-climb apertures at a significantly lower cost than heavy steel palisade fencing.
• Modern Aesthetic & Clear Visibility: Mesh fencing provides a sleek, architectural look that blends into garden landscapes, schools, and business parks. Its high transparency allows for clear sightlines, which is essential for security camera monitoring and safety oversight in playgrounds and sports venues.
• Fast & Flexible Installation: Pre-fabricated modular panels allow contractors and land owners to install long perimeters rapidly, utilizing either concrete-in or bolt-down posts on hardstanding ground.
-
Weather Resistance: The open grid structure allows strong wind gusts to pass through easily, drastically reducing wind resistance compared to solid timber or composite panels.
How to buy
Buying mesh panel fencing through F.H.Brundle is a straightforward process whether you are a trade contractor or a domestic buyer.
Follow this step-by-step guide to configure, order, and receive your fencing system.
1) Measure & calculate your system needs
2) Select your system
3) Choose your fixing type
4) Calculate your metre rates and extra posts
FAQs
A mesh panel fencing system is a modular perimeter barrier made from heavy-gauge galvanised steel wires welded into grid patterns. Unlike flexible chain-link fence rolls, mesh panels are rigid and mounted to rectangular or square tubular steel posts using tamper-proof fixings.
-

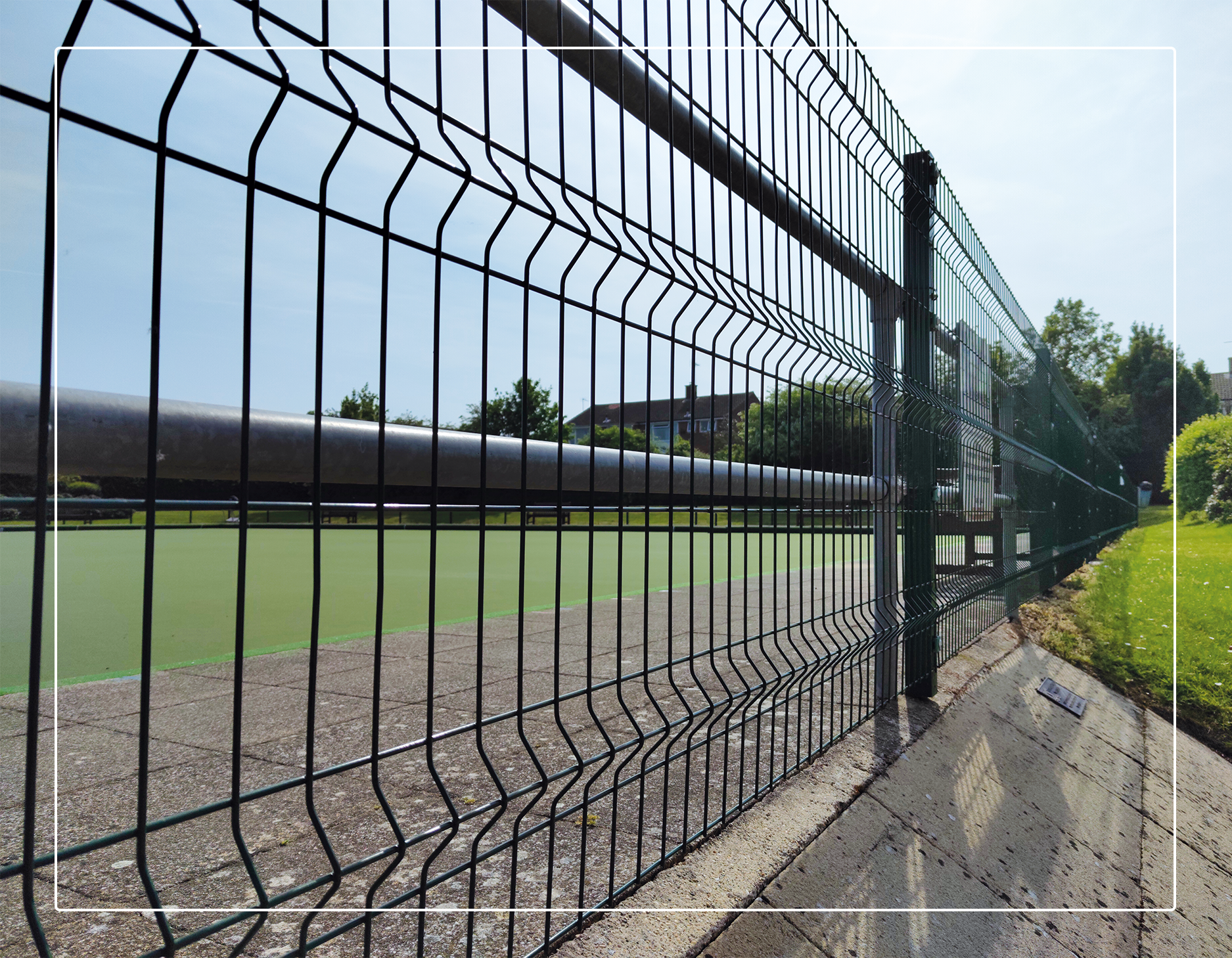

Profile Mesh (V-Mesh): Features horizontal V-shaped pressings along the height of the panel to add vertical rigidity using a single horizontal wire structure. It is lightweight and cost-effective.
-
Twin Wire Mesh (e.g., 656 or 868): Features two horizontal wires sandwiching a single vertical wire. It contains no V-pressings, providing a flat profile with superior resistance to heavy force and vandalism.
Yes. Mesh panel posts are available in two mounting configurations:
-
-
Concrete-in: Extended post length for setting into ground footings.
-
Bolt-down: Pre-welded base plates designed to bolt onto existing concrete slabs or dwarf walls using concrete anchor bolts.
-
Standard stock finishes include RAL 6005 Green and RAL 9005 Black powder coatings over galvanized steel. Custom RAL colours can be supplied upon request.
