Why Choose Welded Mesh Gabions?
Transform Landscapes with High-Performance Welded Mesh Gabions
Commercial-Grade Wire Baskets Built for Strength, Rapid Assembly, and Lasting Aesthetics
Engineered from 3mm galvanised steel wire, F.H.Brundle’s welded mesh gabions deliver the ultimate balance of structural integrity and modern architectural appeal. Designed to hold their precise shape without bowing, our flat-packed gabion baskets provide a fast, mortar-free solution for garden retaining walls, erosion control, custom outdoor seating, and perimeter feature walls. Whether you are a homeowner upgrading a garden, an installer looking for job-ready speed, or a contractor tackling heavy-duty landscaping, discover reliable stock with fast nationwide delivery direct from the UK’s trusted trade supplier.
• Retaining Walls & Terracing: Hold back sloping earth without hydrostatic pressure buildup.
• Garden Benches & Fire Pits: Combine stone-filled gabion bases with timber capping.
• Property Boundaries & Screening: Pair with F.H.Brundle Super Gabion Fencing for secure, sound-dampening perimeter walls.
• Planters & Water Features: Build durable, contemporary outdoor raised beds and pond borders.
What is a Welded Mesh Gabion?

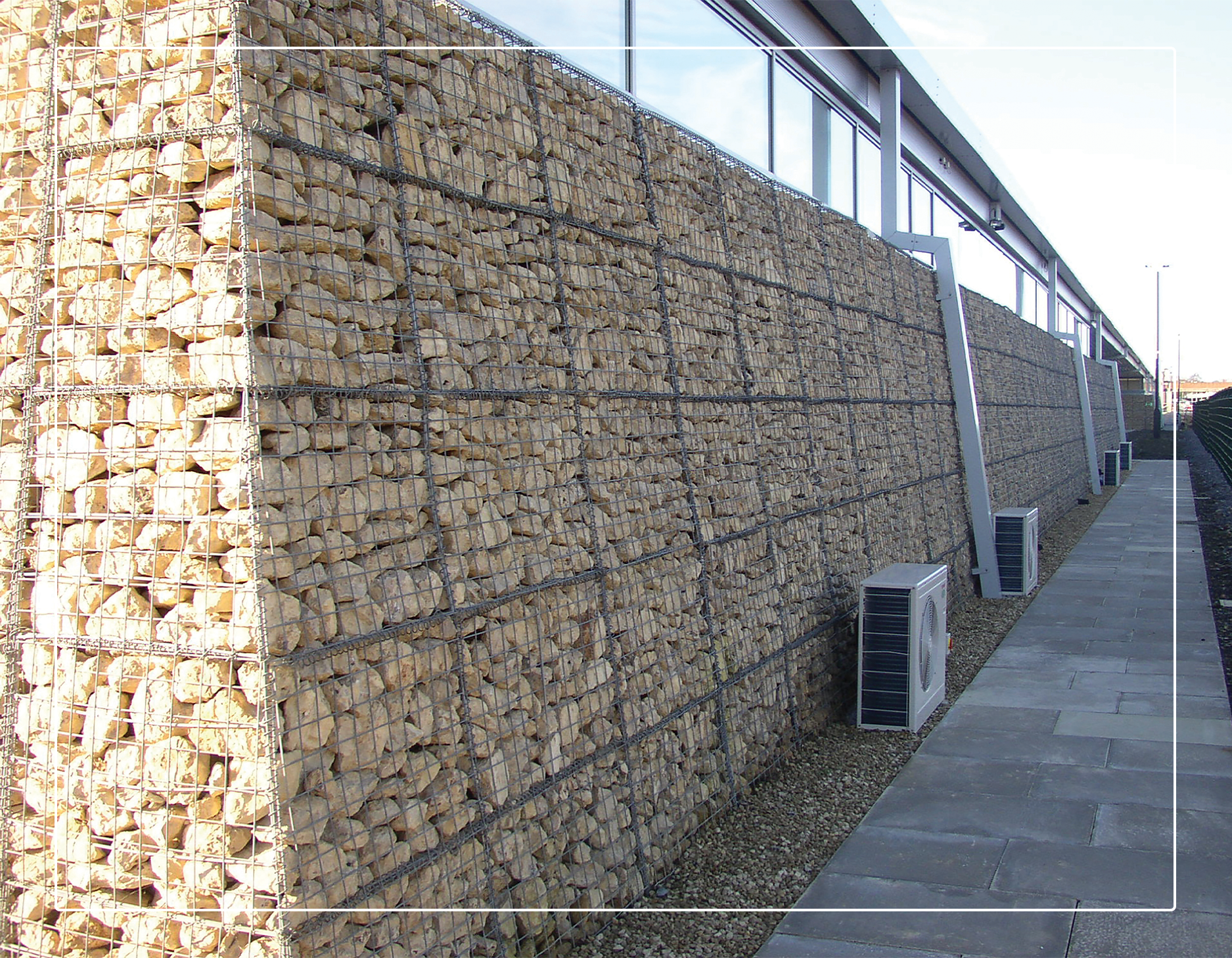

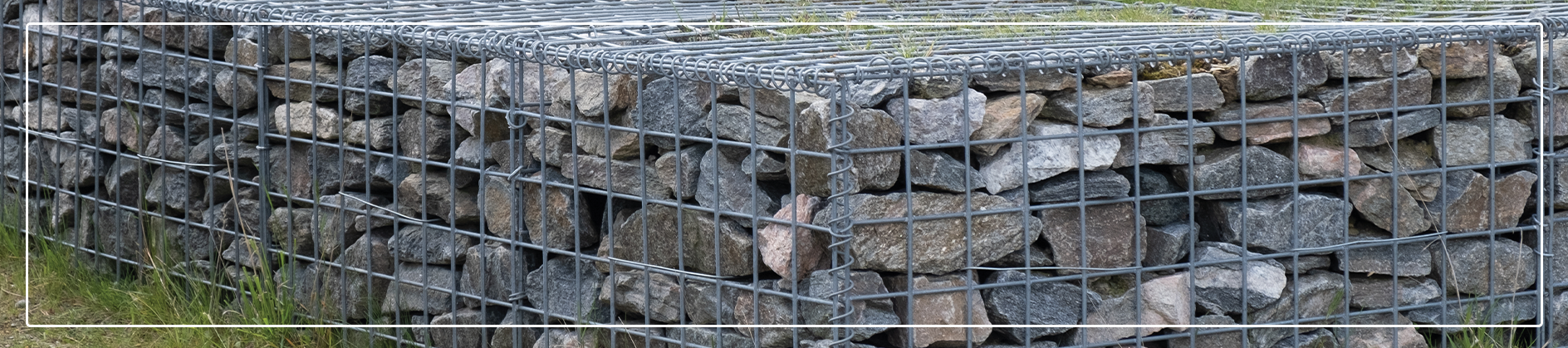

A welded mesh gabion is a heavy-duty, box-shaped wire container made from welded galvanised steel mesh. Filled with stone, cobbles, or recycled concrete, gabion baskets form rigid, self-draining retaining walls, sound barriers, decorative garden features, and erosion-control structures.
F.H.Brundle supplies commercial-grade welded mesh gabions flat-packed across the UK, manufactured using 3mm thick galvanised steel wire for structural stability and corrosion resistance.
The Benefits of Welded Mesh Gabions
• Superior Rigidity & No Bowing: Made from 3mm galvanised welded wire, panels stay flat and maintain sharp, professional edges without bulging under stone weight.
• Rapid, Mortar-Free Installation: Flat-packed for easy transport and assembled dry without wet trades, curing times, or complex foundations.
• Rapid, Built-in Drainage & Zero Hydrostatic Pressure: Water passes freely through stone fill, eliminating the hydraulic pressure that cracks standard masonry walls.
• 30+ Year Weather Resistance: Heavy-duty galvanisation resists rust, atmospheric corrosion, and freeze-thaw cycles without rotting or rusting through.
• Cost-Effective & Eco-Friendly: Lower total installation costs than brick or concrete, with the flexibility to use locally sourced stone or recycled crushed materials.
Technical Specifications & Compliance
Technical Specifications:
• Wire Gauge & Mesh Grid: Constructed from heavy-duty 3.0mm diameter steel wire with a rigid 76.2 x 76.2mm (3″ x 3″) welded square mesh aperture.
• Corrosion Protection: Finished with high-tensile galvanisation/Galfan coating exceeding BS EN 10244-2 Class A standards for 30–50+ years of atmospheric weather resistance.
• Modular Basket Sizes: Available in standard cubic and rectangular sizes ranging from 0.5 x 0.5 x 0.5m up to 2.0 x 1.0 x 1.0m for scalable retaining walls.
• Assembly & Accessories: Supplied flat-packed with helical connectors, lacing wire, and internal corner braces to ensure rapid dry assembly without face bulging.
Testing & Compliance Status:
• Manufacturing & Structural Standards: Fully compliant with BS EN 10223-8 for welded steel wire mesh gabion products, ensuring rigorous quality control across mesh geometry, wire tolerances, and joint integrity.
• Weld Joint Integrity: Tested to guarantee a minimum average weld shear strength equal to 75% of the ultimate tensile strength of the wire, preventing face separation and joint failure under high stone load.
• Corrosion & Weathering Resistance: Protective galvanised and Galfan zinc-aluminium coatings comply with BS EN 10244-2 (Class A), verified via neutral salt spray testing (BS EN ISO 9227) to deliver a 30 to 50+ year design life.
• Engineering & Retaining Standards: Designed in accordance with BS 8002 (Code of Practice for Earth Retaining Structures) and BS EN 1997-1 (Eurocode 7 for Geotechnical Design) for long-term structural stability.
Welded Mesh Gabions Testing Report
| Test | Test method | Value |
|---|---|---|
| Wire Tensile Strength | BS EN 10218-2 / BS EN 10223-8 | 500 – 750 N/mm² |
| Weld Shear Strength | BS EN 10223-8 | ≥ 75% of minimum wire breaking load |
| Zinc/Galfan Coating Mass | BS EN 10244-2 | ≥ 245 g/m² (for 3.0mm nominal wire) |
| Coating Adhesion | BS EN 10244-1 | Pass (No flaking/cracking on 1x mandrel wrap) |
| Salt Spray Corrosion Resistance | BS EN ISO 9227 | < 5% dark brown rust after 1,000–2,000 hours |
| Wire Diameter Tolerance | BS EN 10218-2 | ± 0.05 mm |
| Mesh Aperture Tolerance | BS EN 10223-8 | ± 3.0 mm (standard 76.2mm x 76.2mm grid) |
FAQs
Use clean, hard, weather-resistant stone sized 75mm to 150mm. The rock size must be larger than the mesh aperture to prevent stone spillage while leaving enough density to lock together inside the basket.
For standard low garden walls (under 1 metre), a compacted sub-base of crushed stone (MOT Type 1) is sufficient. For tall earth-retaining walls or soft ground conditions, consult a structural engineer regarding a concrete leveling pad or stepped foundation.
High-quality galvanised welded mesh gabions from F.H. Brundle are built for long-term outdoor exposure and typically deliver a service life of 30 to 50+ years, depending on soil acidity and atmospheric conditions.
Yes. All F.H. Brundle gabion baskets are supplied flat-packed for fast transport and easy handling on-site. They include assembly components for quick box setup before filling.
