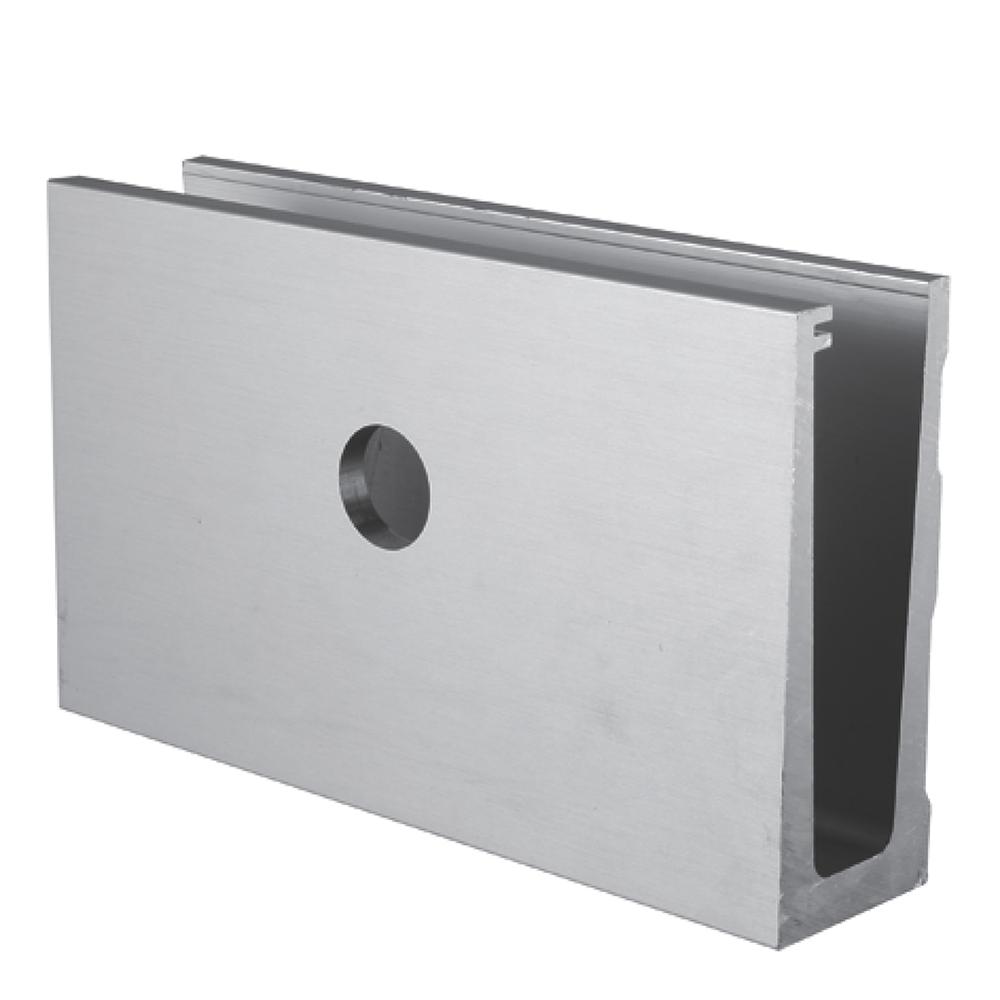

2.5m Aluminium Channel Pro Slim Side Fix for 12 to 21.5mm Glass (Satin, Anodised)
Safety Datasheet
Technical Drawings
2.5m Aluminium Channel Pro Slim Side Fix for 12 to 21.5mm Glass (Satin, Anodised)
Wedge-Loc Slim™ is a frameless glass balustrade system for installations up to 0.74kN. This cost-effective system requires no cladding and is quick to install.
Product specifications
- Suits 12-21.5mm glass
- Satin anodised finish
- Stainless cladding not required
- Pre-drilled channel fixing holes
- Height to glass when packer fitted is 13mm
- Packer height 2mm
- Quick & easy to install
- Length: 2.5m
Channel fixing holes are 13.6mm at 100mm centres to suit a 12mm bolt with a 22mm countersunk head.
1805440SSA
16.5 kg
Quick view catalogue
Request copy
£129.80EACH Ex VAT @ 20%
£155.76EACH Inc VAT @ 20%
| Quantity | Price |
|---|---|
| 1+ | £129.80 |
| 8+ | £116.80 |
IN STOCK
You may also need This product features as part of 8 kits Show Kits
Show more
FAQ
Do you supply glass infills?
We do supply glass infills for all our systems and have a very large range of stock glass panels for all our post, aluminium channel and spigot systems, in both toughened and PVB laminates.
Do the systems meet Building Regulations?
Building Regulations must always be considered with both new properties and renovation. The safety of any handrail or balustrade safety is always something that must be considered. Domestic, commercial and areas where people congregate all have different loading requirements. If you have any doubts at all you should always check with your Local Building Inspector. Compliance with Part M and Part K of Building Regulations may be required.
How high is the handrail?
We make them to conform to Building Regulations and they are 1100mm high on straight runs and 900mm high on stairs/slopes.
Do you sell fixing bolts?
We have a wide range of fixings and drill bits available. We advise that you always use coated or stainless steel bolts, anchors and screws for our stainless steel Balustrades and railings. We do offer suggested fixings for use with different substrates but as we don?t know exactly what you will be fixing to, you will need to decide on the most appropriate fixings for your particular installation.
