OnLevel 3011 Side Fix Channel 5m Length - Raw Finish

OnLevel 3011 Side Fix Channel 5m Length - Raw Finish

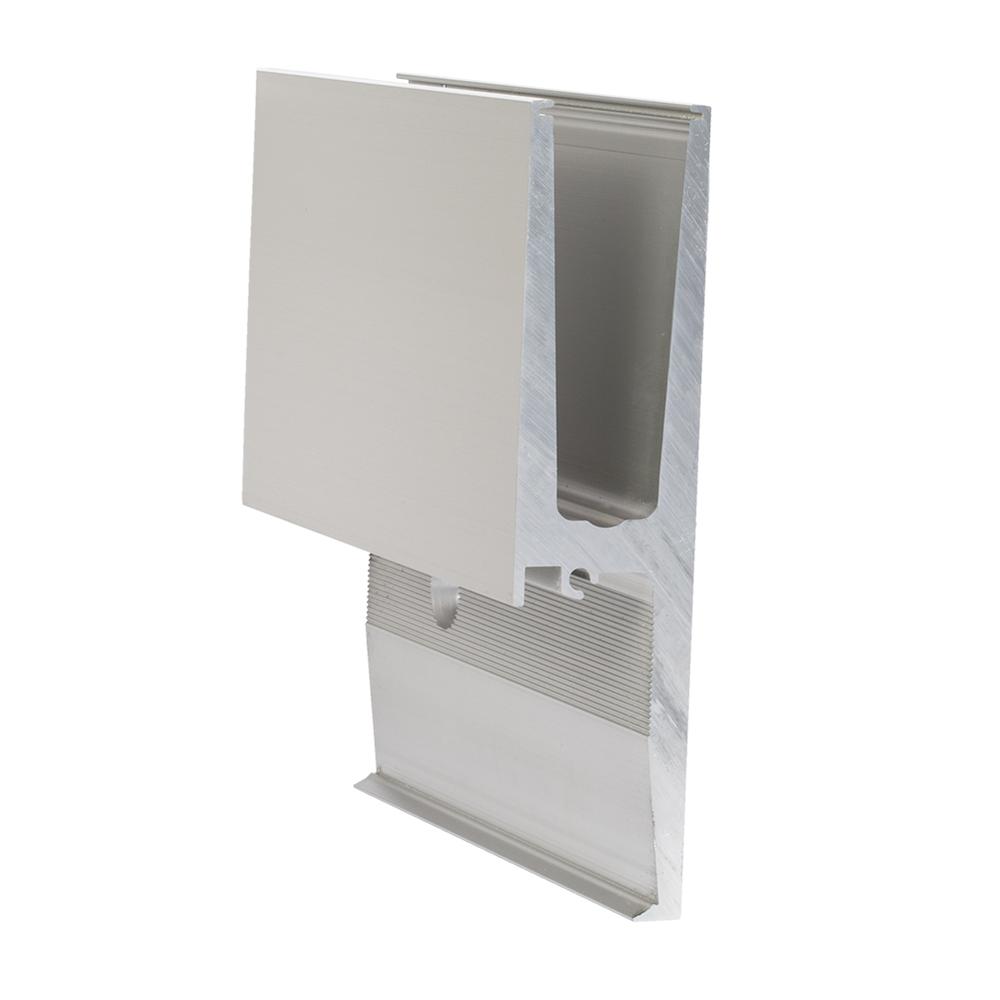

Onlevel 3011 aluminium channel in raw finish for side fix mounting. This channel can be used in systems suitable for a wide range of domestic or light commercial environments, for both internal and external applications.

Specifications

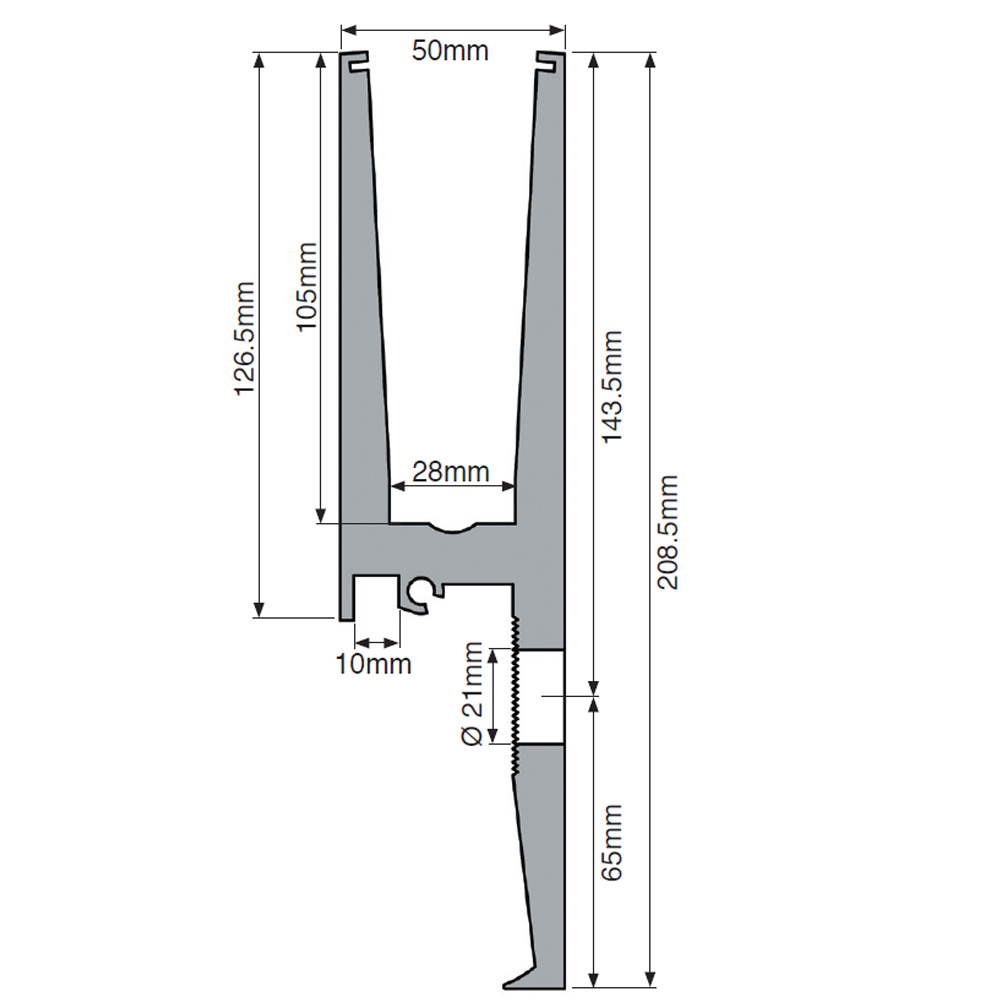

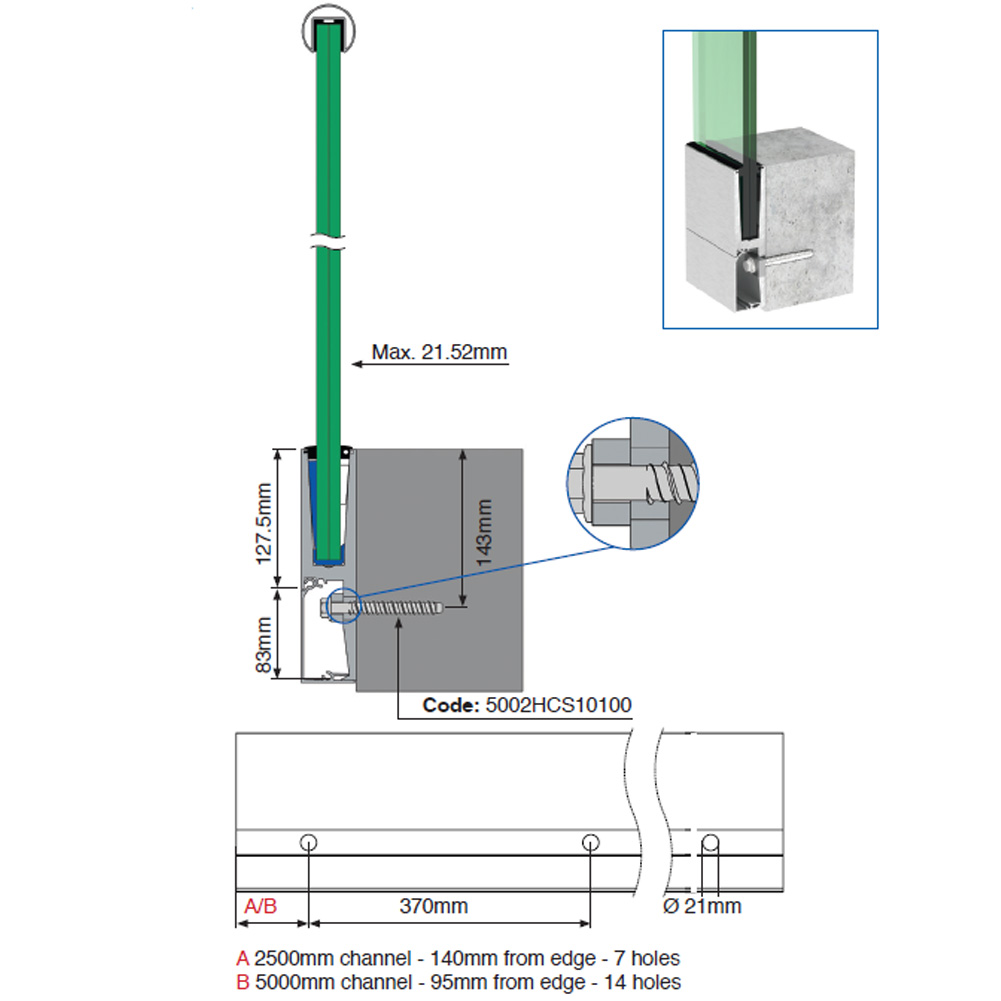

  • Fixing holes are Ø21mm at 370mm centres to suit Ø10mm bolts
  • Height to glass when packer is fitted is 110mm.
  • Length: 5000mm

A combination of water and cold weather can be detrimental to glass balustrades, to avoid such problems OnLevel channels include drainage holes at 1m intervals.


Please note: Mill finish requires powder coating to your choice of colour.

1805520B5
47 kg
£641.30EACH Ex VAT @ 20%
£769.56EACH Inc VAT @ 20%
Quantity Price
1+ £641.30
4+ £615.60

FAQ

Do you supply glass infills?
We do supply glass infills for all our systems and have a very large range of stock glass panels for all our post, aluminium channel and spigot systems, in both toughened and PVB laminates.
Do the systems meet Building Regulations?
Building Regulations must always be considered with both new properties and renovation. The safety of any handrail or balustrade safety is always something that must be considered. Domestic, commercial and areas where people congregate all have different loading requirements. If you have any doubts at all you should always check with your Local Building Inspector. Compliance with Part M and Part K of Building Regulations may be required.
How high is the handrail?
We make them to conform to Building Regulations and they are 1100mm high on straight runs and 900mm high on stairs/slopes.
Do you sell fixing bolts?
We have a wide range of fixings and drill bits available. We advise that you always use coated or stainless steel bolts, anchors and screws for our stainless steel Balustrades and railings. We do offer suggested fixings for use with different substrates but as we don?t know exactly what you will be fixing to, you will need to decide on the most appropriate fixings for your particular installation.
