Composite decking boards

For use with Outdure QwickBuild framing

Wood Plastic Composite (WPC) boards are an easy-to-clean, low-maintenance, long-lasting decking surface allowing you to create inviting family areas that effortlessly blend with any outdoor space, providing a natural and vibrant look all year round. Like our Rinato Natural composite deck boards.

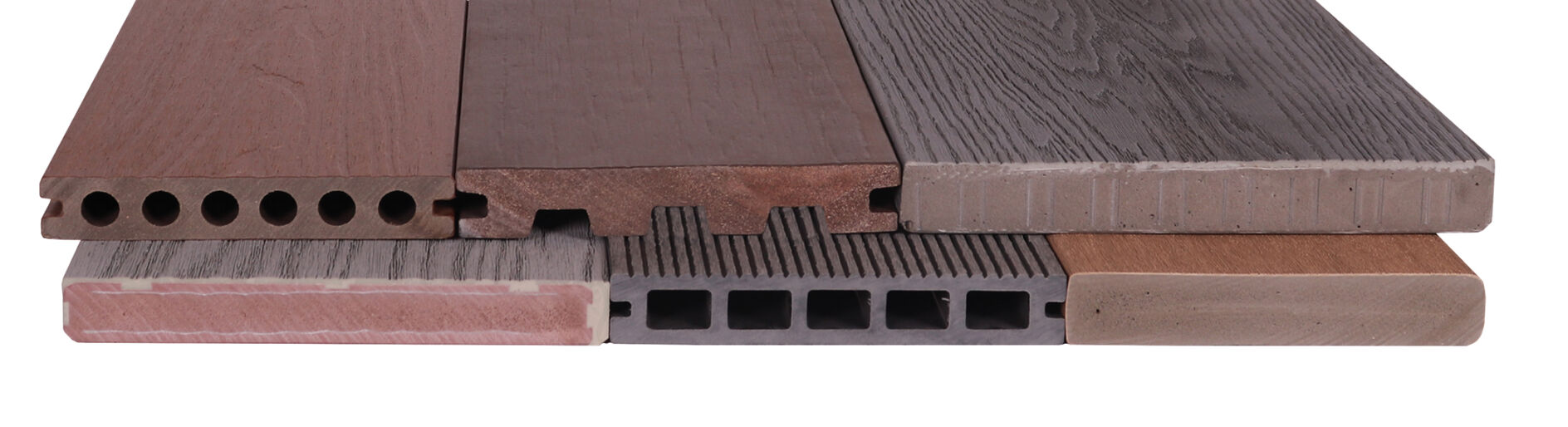

Almost all composite boards available in the UK are compatible with the Outdure QwickBuild frame – including the ranges of premium composite boards stocked by F.H.Brundle.

Composite decking from
ex VAT
Outdure QwickBuild is compatible with most common and premium composite and mineral deck boards

Trex, TimberTech, AZEK, NewTechWood, Composite Prime, Millboard, Deckorators, Fiberon, and more.

Premium composite decking from
ex VAT

We stock and deliver the following ranges of composite and mineral boards:

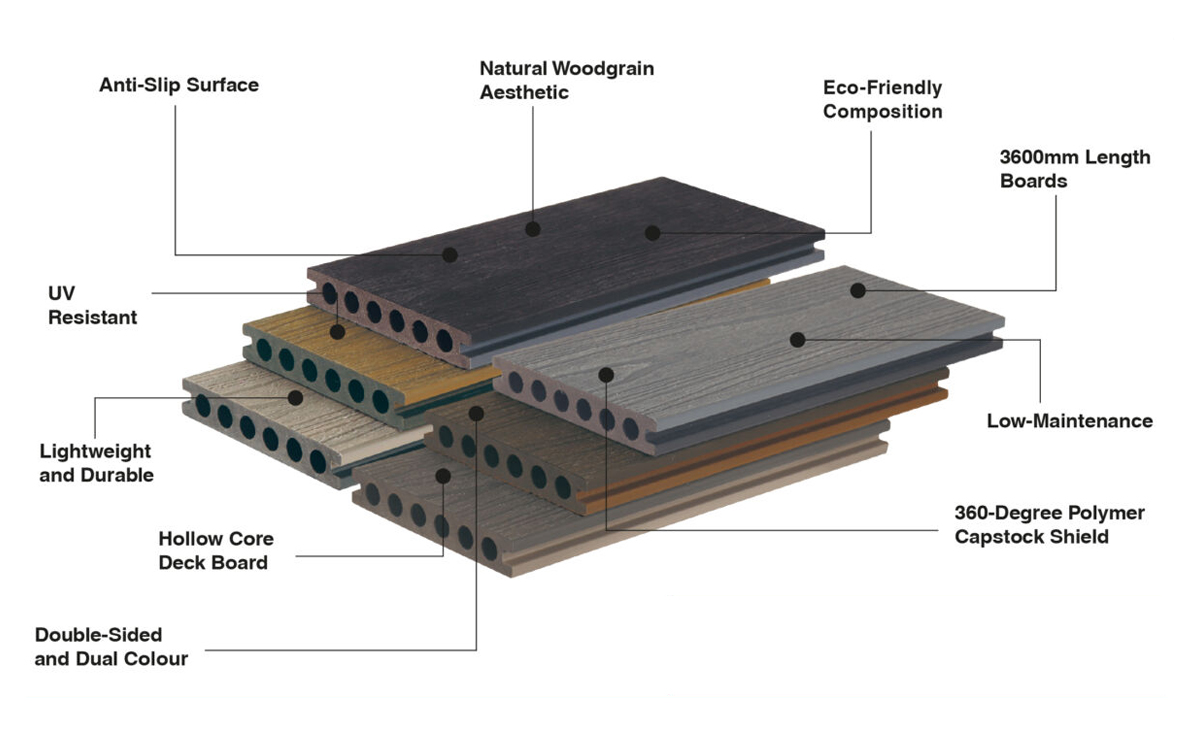

rinato natural composite deck boards
composite prime redux deck boards
composite prime elements azek deck boards

One system. Multiple ways to fix.

Composite boards with TwistClips
Composite boards with concealed clips
Solid composite boards with
screws & battening

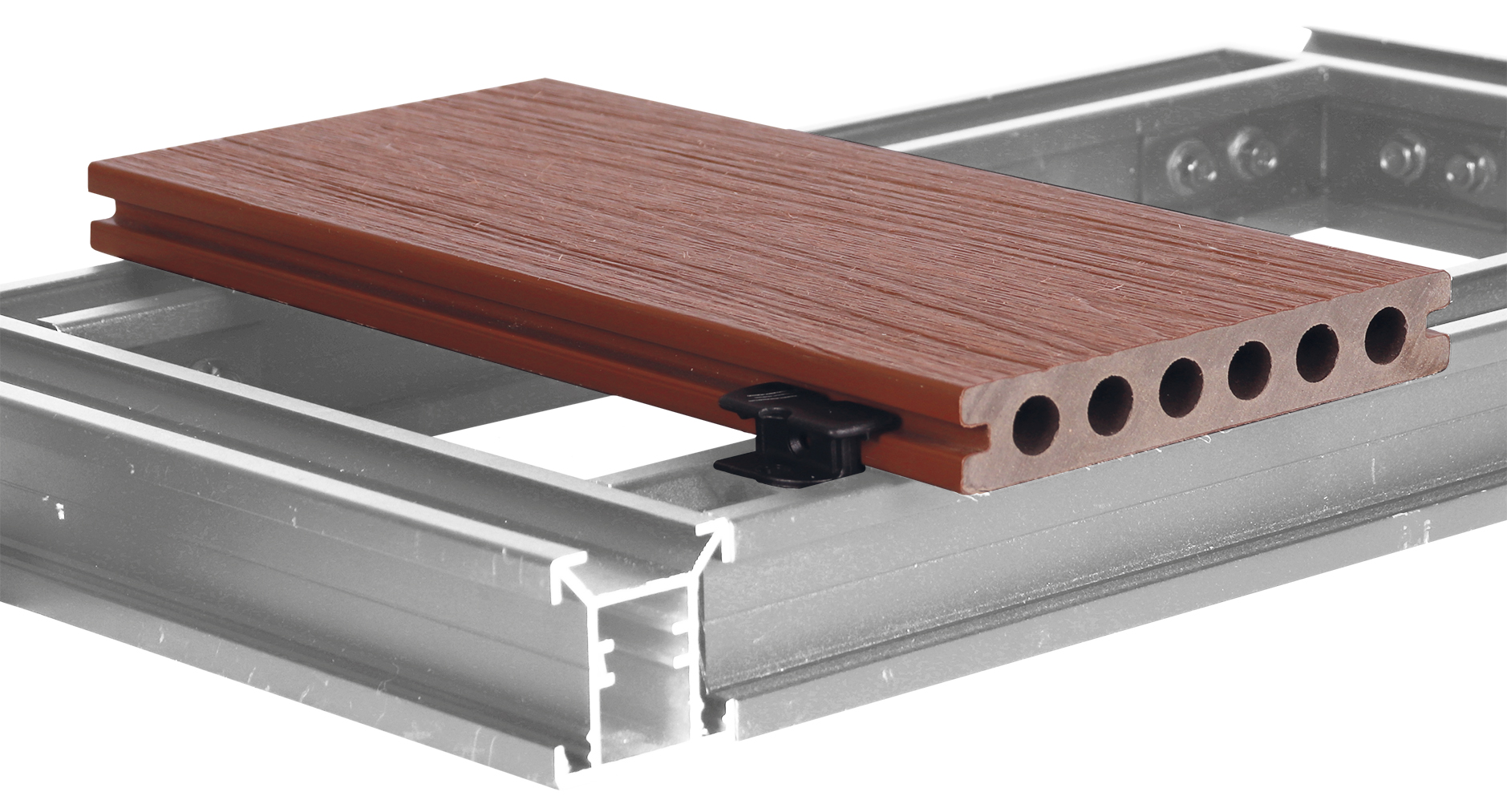

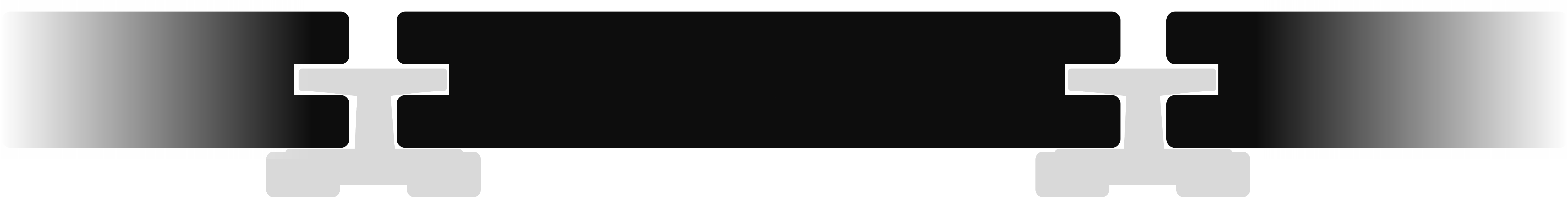

Composite boards fixed with TwistClips

Composite deck boards with channeled grooves for concealed Outdure TwistClip fixings

Fixing your composite deck boards to Outdure QwickBuild subframe using TwistClips

Fixing using Outdure A510 – A550 TwistClips and A590 Starter Clips

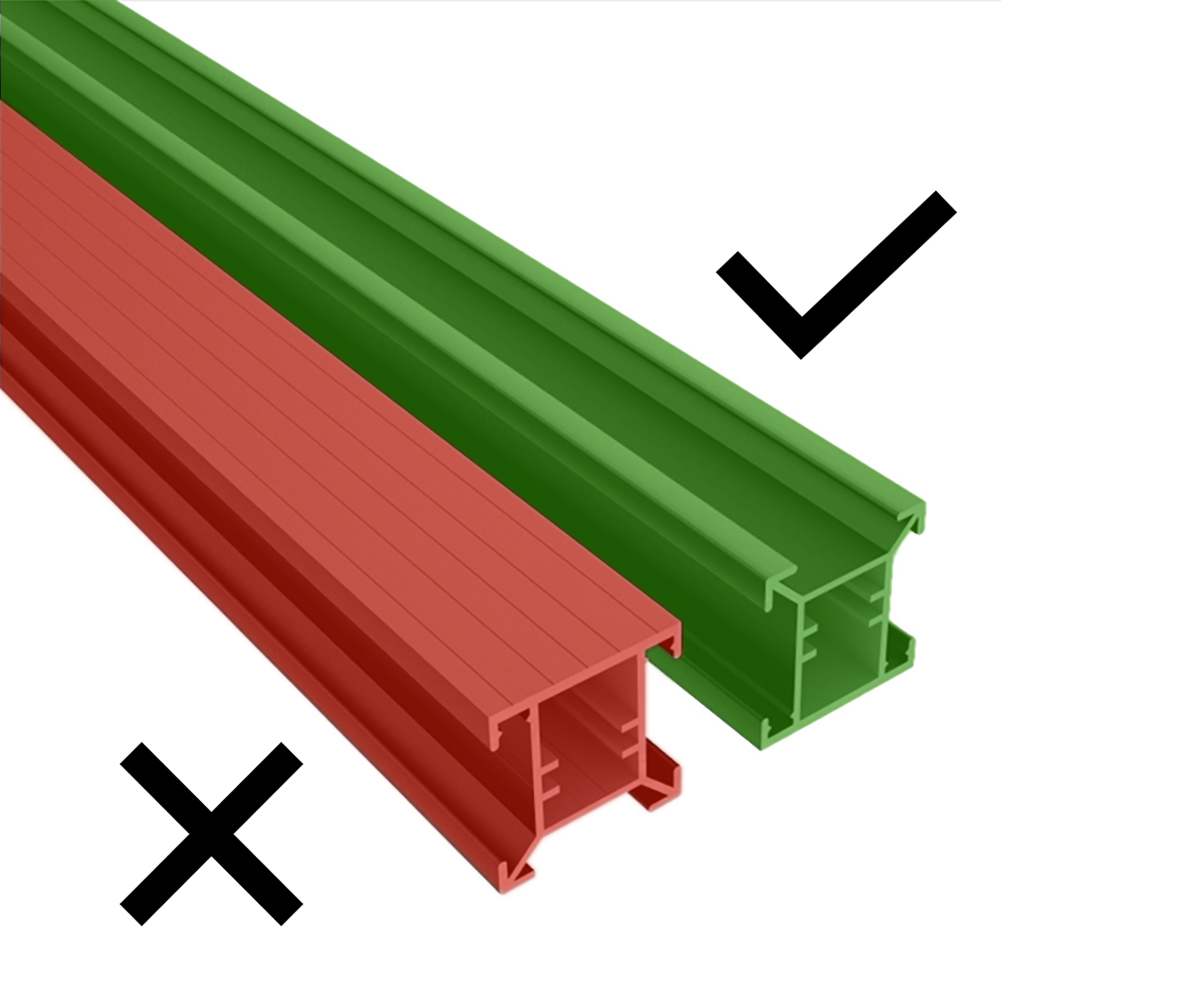

• Ensure joist is flat face down, with the channel side up (green).

• Place the A510/A520/A550 TwistClip into the channel and twist, push into grooved edge of board

• Slide the next board into position and repeat.

• Fix every 4th or 5th board using by fixing the TwistClip with the A409 screw.

• Secure the first and last board with the A590 starter/end clips (min 2 per board)

Watch the video below for more information.

Selected compatible boards:

Rinato™ Natural
NewTechWood®
NeoTimber® Advanced
Composite Prime
® HD Deck Dual
Envirobuild Hyperion Frontier
Envirobuild Hyperion Explorer
EcoScape
® Forma
EcoScape® Linea

Selected compatible boards:

Trex Transcend®
Trex Lineage®
TimberTech® Azek Reserve
TimberTech® Terrain
TimberTech® Vintage
Cladco Decking® Hollow Boards
Assured Composites® Premier
Assured Composites® Elite

Selected compatible boards:

Fiberon

Before you buy – please check the height of the groove lip of the board being installed. This will ensure you select the correct TwistClip.

Selecting the right Outdure TwistClip for the right board:

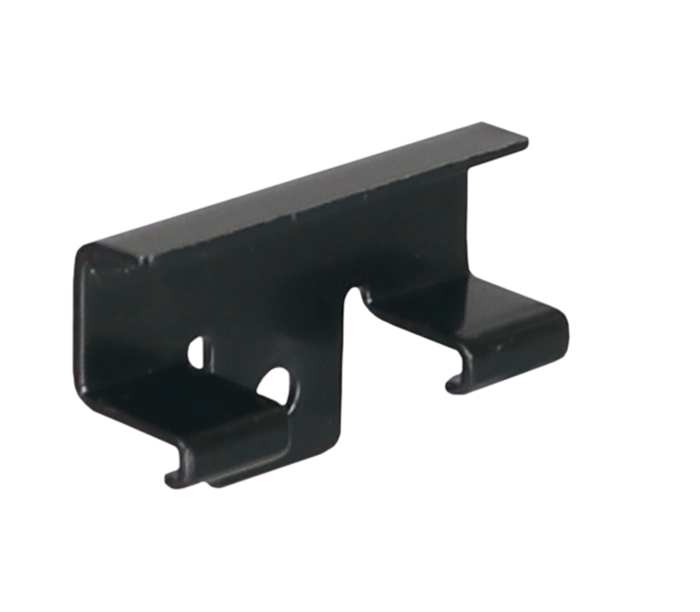

A590 Starter Clip

Quickbuild starter clips have been designed for use alongside our deck frame system when starting to install composite decking boards, artificial grass baseboards, and anti-slip strips to rim joists.

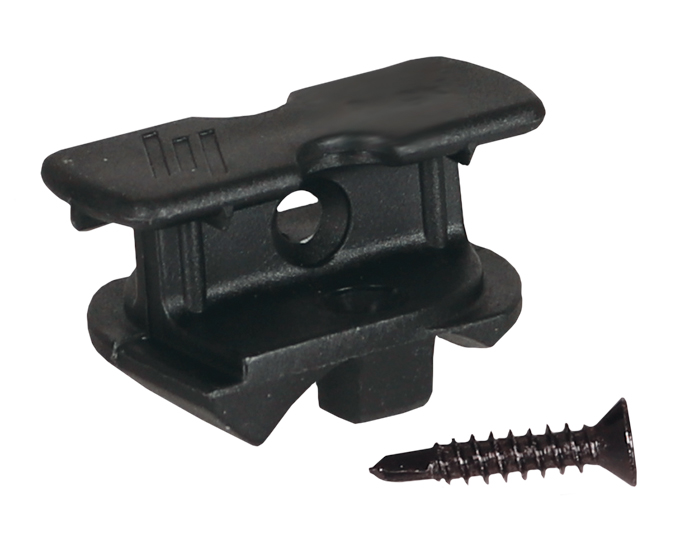

A510 TwistClip (x50)

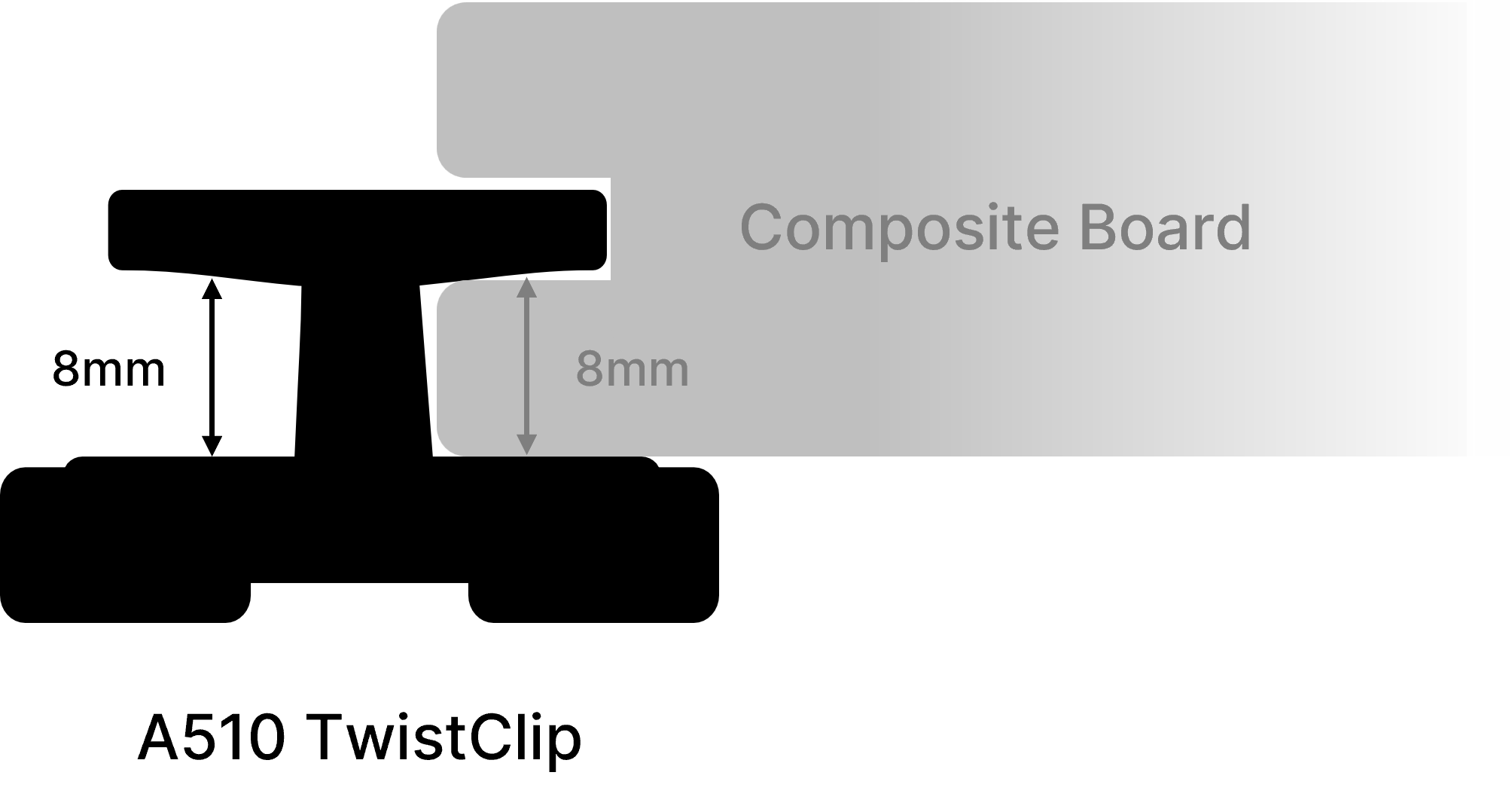

Qwickbuild A510 TwistClips have been designed to fix composite boards with channeled grooves for concealed fixings, where the bottom lip of the board is 8mm in height, to the QwickBuild joists. Creates 6mm gap between boards. Supplied with A409 screws.

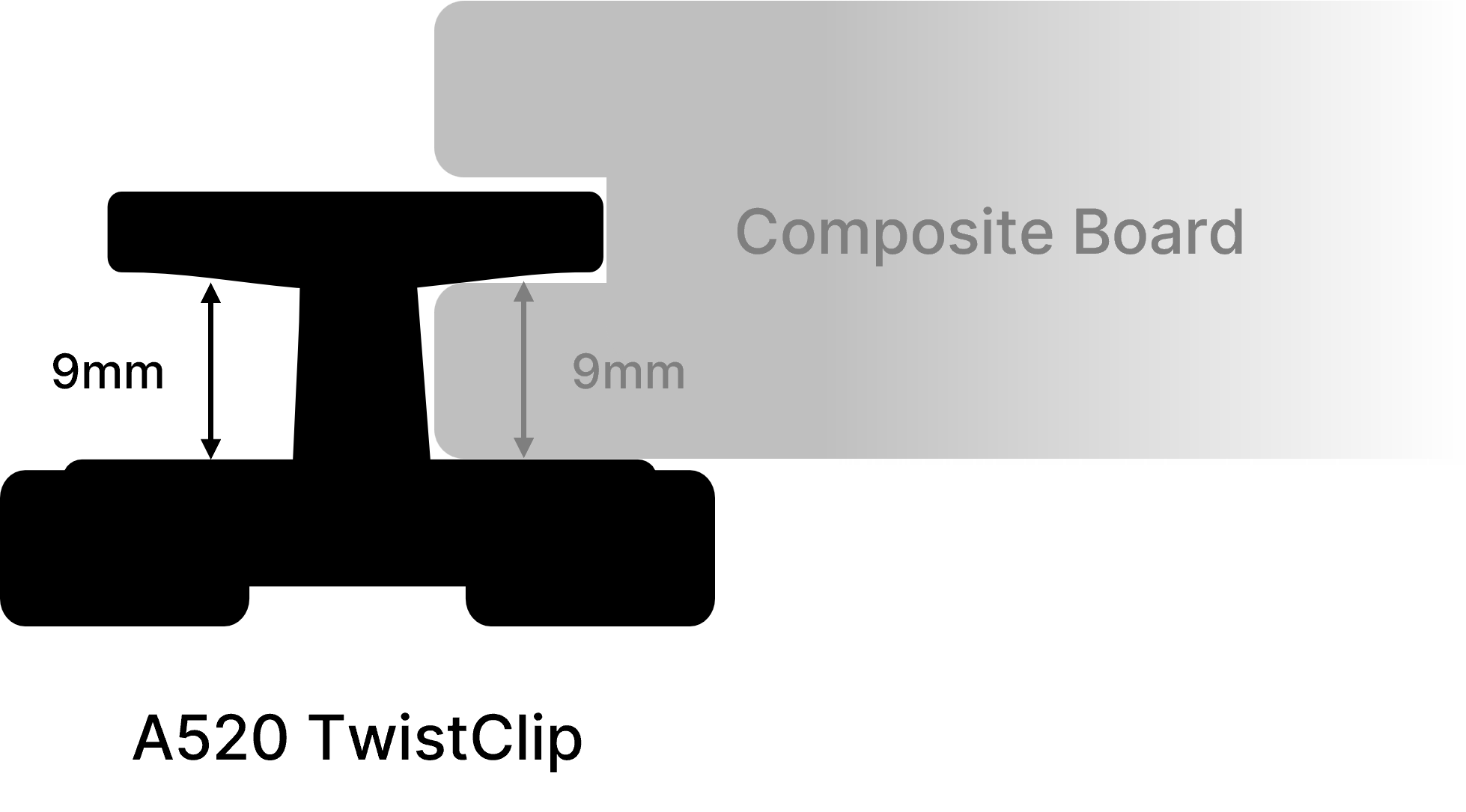

A520 TwistClip (x50)

Qwickbuild A520 TwistClips have been designed to fix composite boards with channeled grooves for concealed fixings, where the bottom lip of the board is 9mm in height, to the QwickBuild joists. Creates 6mm gap between boards. Supplied with A409 screws.

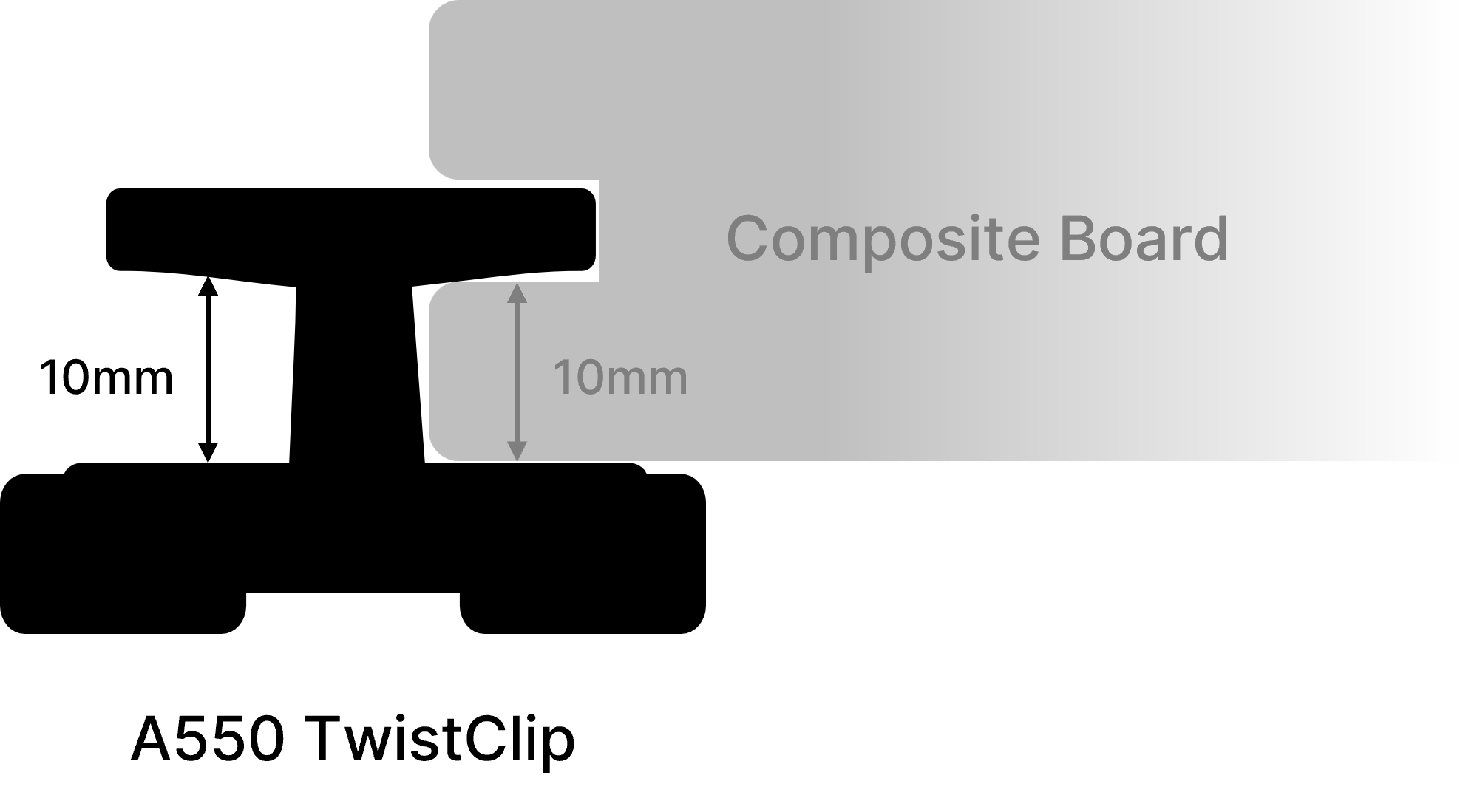

A550 TwistClip (x50)

Qwickbuild A550 TwistClips have been designed to fix composite boards with channeled grooves for concealed fixings, where the bottom lip of the board is 10mm in height, to the QwickBuild joists. Creates 6mm gap between boards. Supplied with A409 screws.

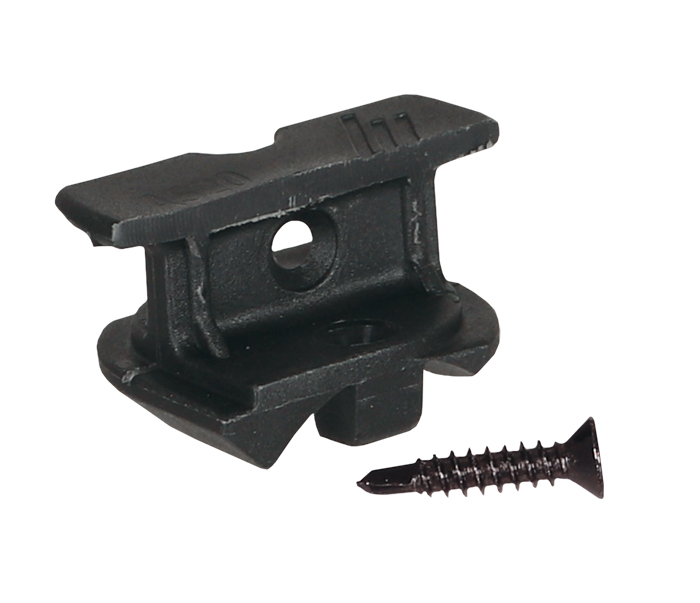

A511 Half TwistClip

Qwickbuild half TwistClips have been designed to act as transitional clips between two different surface types when composite boards are in use. Supplied with A409 screw in pack of 50.

Please note that the Quickgrate product shown on the above installation guide is not currently available for the UK market.

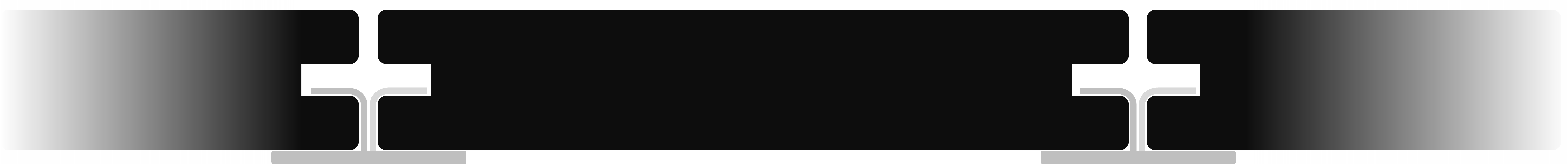

Composite boards fixed with concealed clips

Composite deck boards with channeled grooves for traditional concealed fixings

Fixing your composite deck boards to
Outdure QwickBuild subframe with
concealed decking clips

Fixing using traditional clips

• Ensure joist is flat, face up (green), with the recessed side down.

• Fix clips to beams with specialised fixing screws (76SS4250DB), using existing seam lines to ensure precision, then slot in next board in run.

• Repeat process until run complete.

Concealed fixings available:

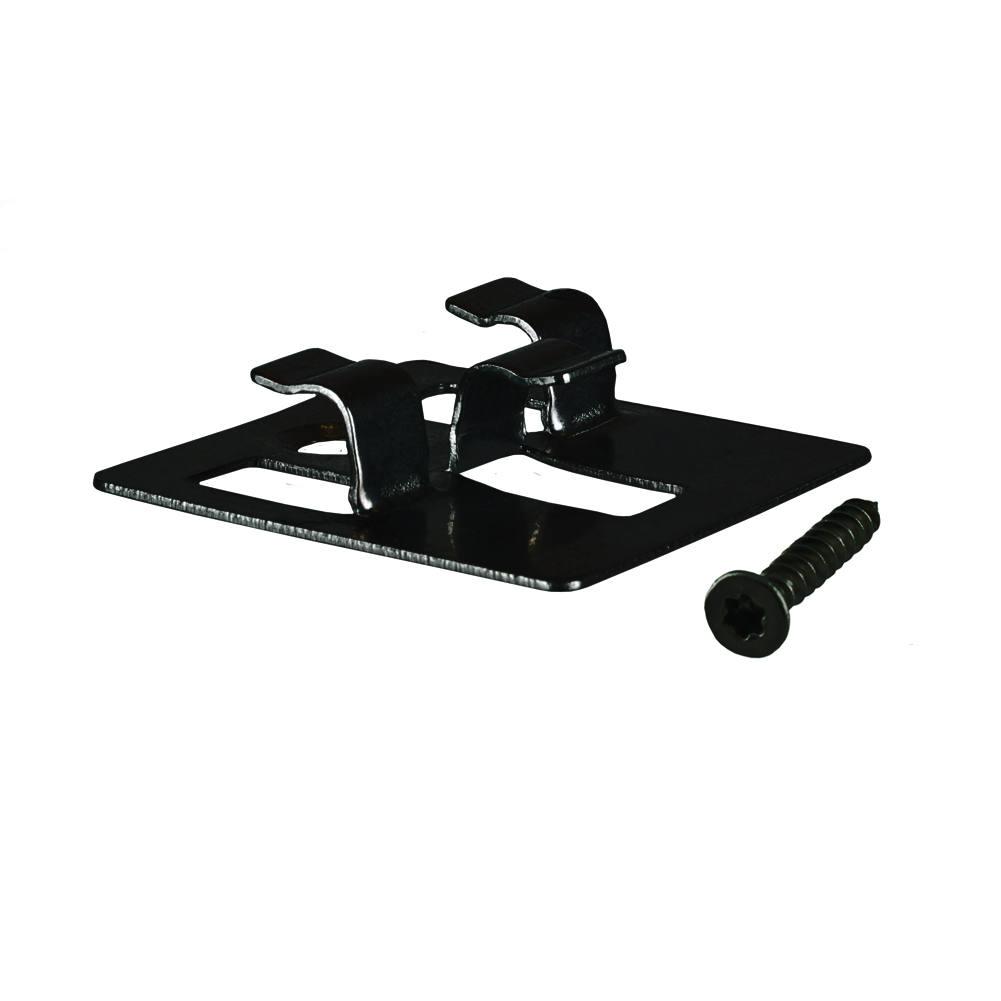

Rinato™ Board Clips

Stainless steel, powder coated double clips allow you to install the composite boards with 1mm board spacing (suitable for boards with 8mm groove lip). Supplied in a pack of 50, with 50 screws to fix directly into joists.

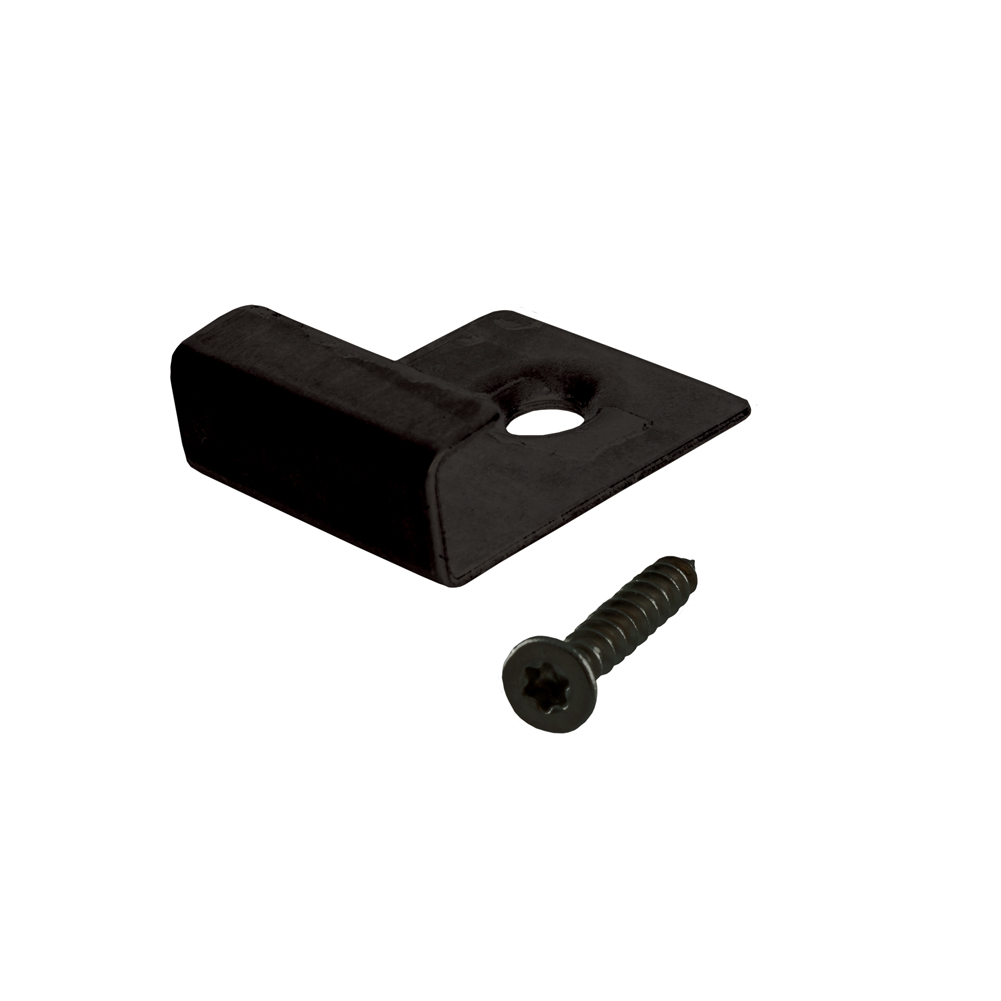

Rinato™ Starter Clips

Rinato™ starter clips provide a concealed starting point for your run of composite boards (suitable for boards with 8mm groove lip). Stainless steel, powder coated. Supplied in packs of 10, complete with 10 screws.

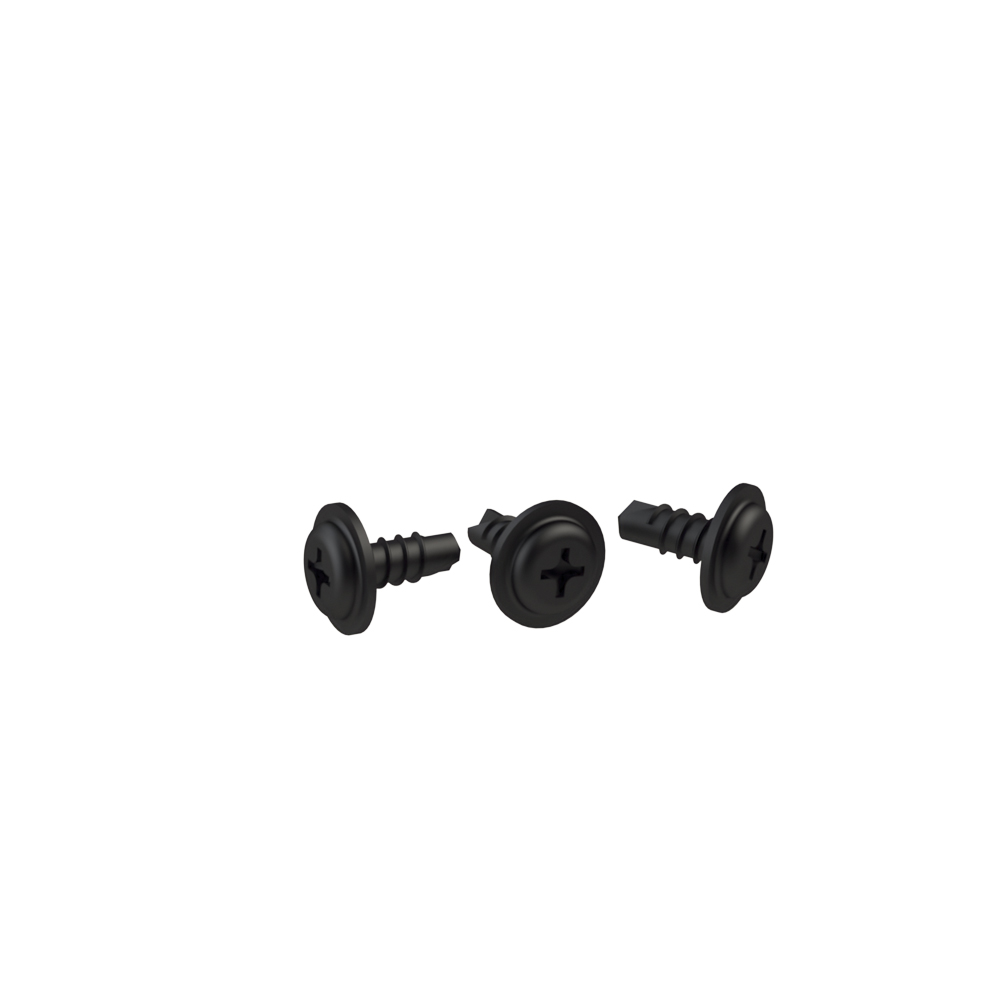

Board Fixing Screws

4.2mm x 12mm galvanised screws for use with Rinato board clips on QwickBuild subframe. BZP – Dacromet Black finish. Supplied in pack of 100.

Mineral boards fixed to battens

Solid mineral boards without channeled grooves fixed to polymer battens

Fixing your mineral deck boards to
Outdure QwickBuild subframe using
screws into polymer battens

Fixing using A855 battens

• Ensure joist is flat, channel-side up (green), with the flat side down. Polymer battens will slot into channel.

• Fix A855 polymer battens into joist using the A620 screw. In low-height scenarios, the batten can also be fixed into the side channel of the batten.

• Your mineral boards can then be fixed using a the prefered fixing screw of the manufacturer into the the batten, rather than the joist via a self-drilling screw.

• We would strongly recommend against fixing mineral boards direct to joist with self-drilling screws.

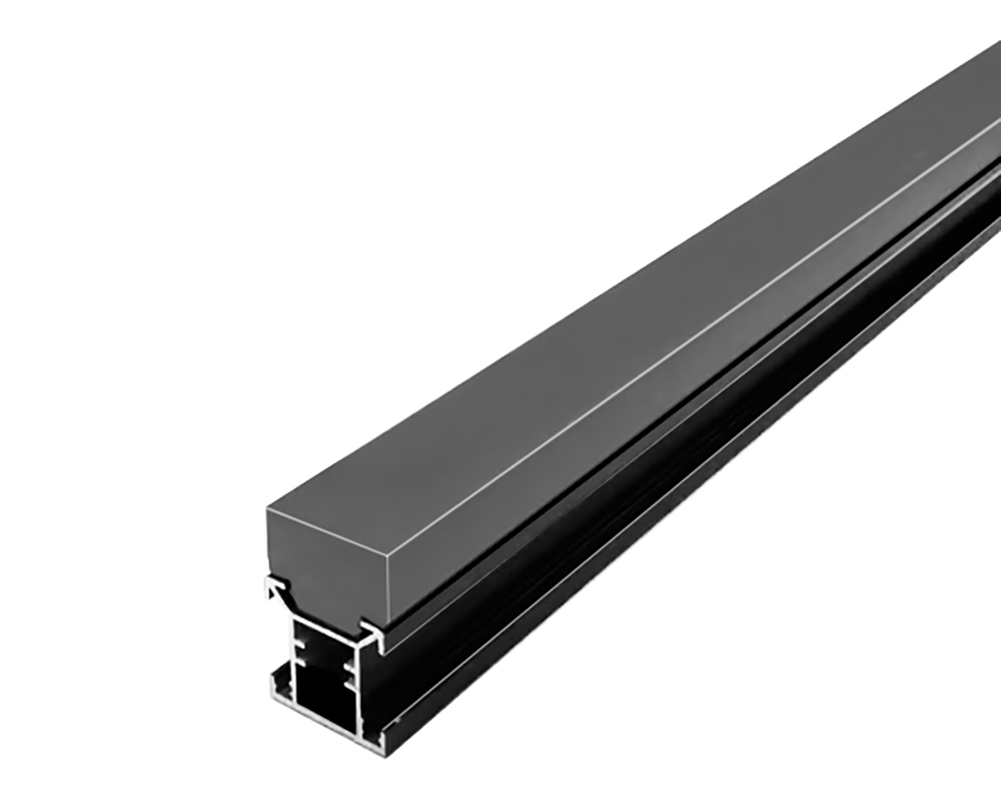

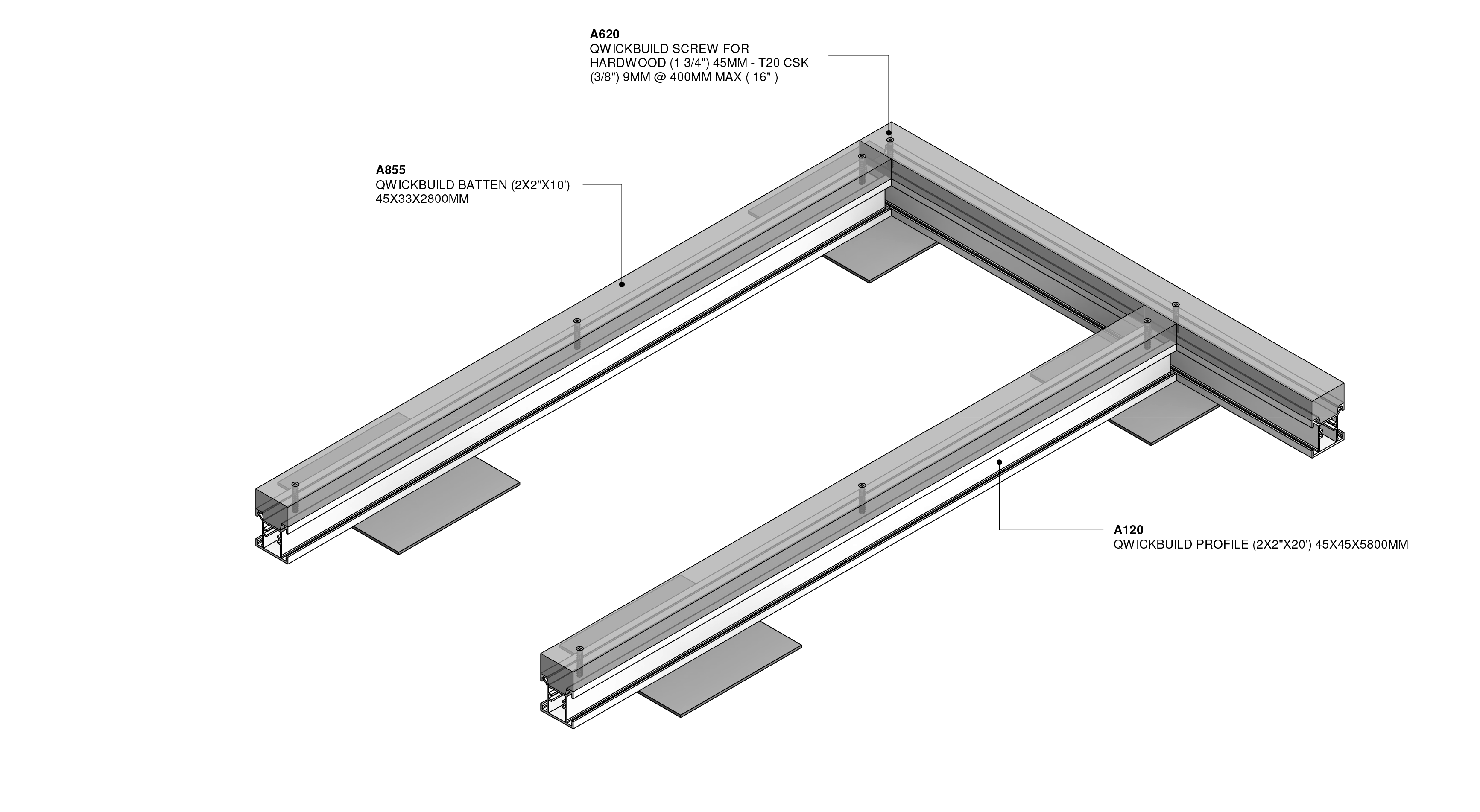

A855 Polymer Batten

Recycled HDPE & PP 2.8m composite batten, used for the application of mineral boards to an Outdure QwickBuild subframe. Provides an additional 24mm height when used on top of a joist. A620 screw sold separately.

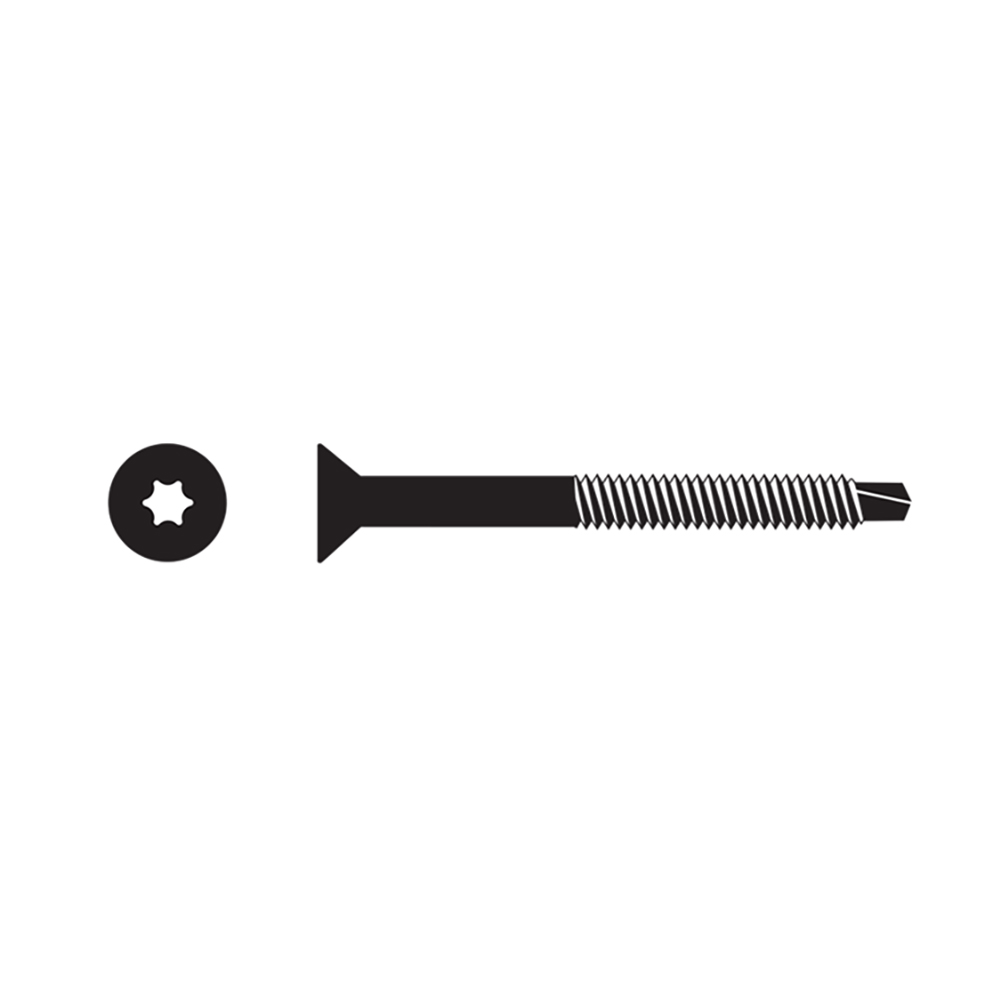

A620 Self-drilling Screw

Stainless steel self-drilling torx screws, 45mm length with 9mm head diameter. Supplied in pack of 50.

Design your next deck, with ease

We recommend using our free software, DeckPlanner, to design your decking. Remove the guesswork and complexity with this simple, five-step process. Select your variables, your surface type, and receive:

– Accurate Plans/Drawings

– Itemised Parts List

– Installation Guide

– Full Itemised Quote

fh brundle deckplanner

See what you’ll get

Innovation in every component

Build using a selection of core system components such as joists and brackets which form the structure, along with fixings for your chosen surface(s). The range also includes supports, such as posts or pedestals, depending on the height of the deck and the substrate on which it will sit. Combined with all the components required for you to install your artificial grass on our aluminium QwickBuild deck frame system.

Find out more – residential and commercial design parameters

Better with
Outdure QwickBuild

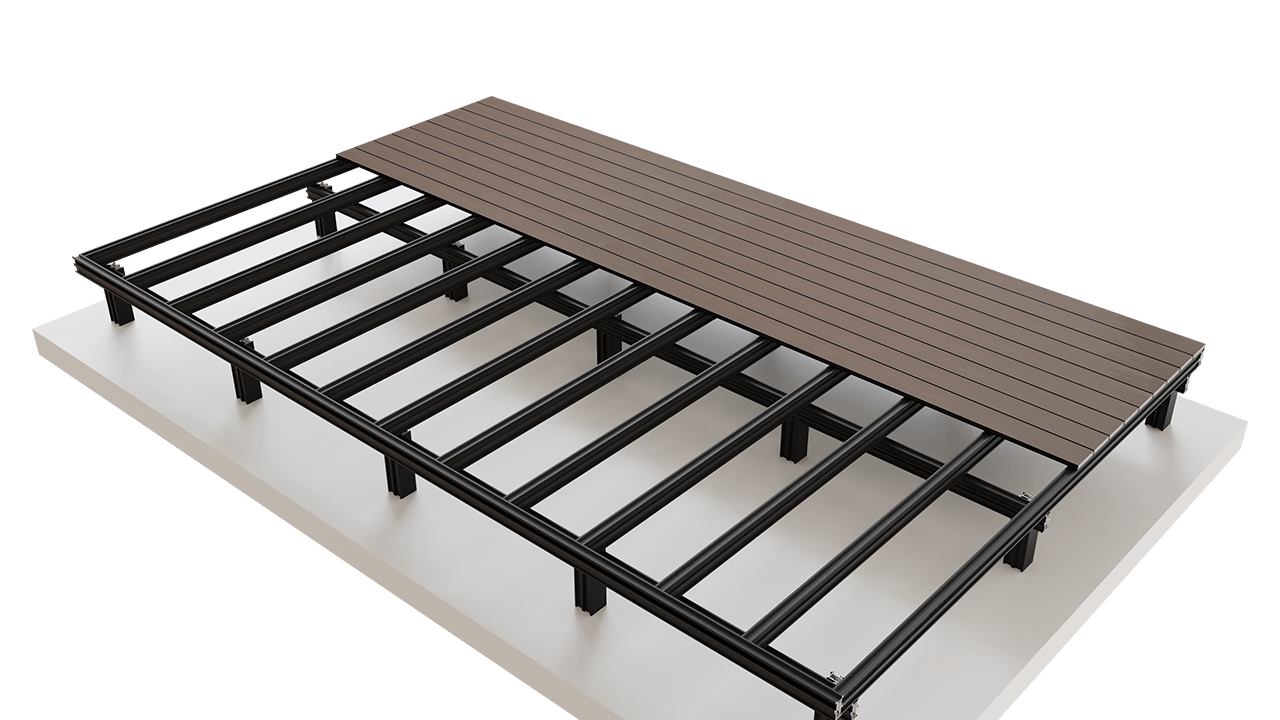

All decking surfaces can be installed on a traditional substrate, but for a superior solution in every way, QwickBuild® framing system by Outdure® will ensure a long-lasting, straight, and dimensionally stable finish. Learn more about simplified decking systems for every space and surface.

outdure with turf fh brundle

Rinato Decking
Composite decking boards from FH Brundle
composite decking boards on QwickBuild
rinato decking fh brundle

Download the complete guide to decking

Our complete decking catalogue contains the full Outdure range and more, and will help you understand the system, inside-out. Explore how to create decks for composite, timber and aluminium boards; porcelain tiles and artificial grass.

Also compatible with Outdure QwickBuild
