Premium porcelain tiles
For use with Outdure QwickBuild framing
Experience the timeless elegance of our Station range, crafted to have the sophisticated appearance of slate, crafted from quality porcelain. Available in four colours – Black, Iron, Pearl, White – these premium quality tiles have a very lightly riven surface.
Premium porcelain tiles from
ex VAT
Select your porcelain tiles
Station Range
600 x 600 x 20mm tiles from
per tile. Ex VAT
900 x 600 x 20mm tiles from
per tile. Ex VAT
Why choose porcelain tiles?
Experience the sophisticated beauty of slate, re-imagined in durable, low-maintenance porcelain. The Station range offers the timeless elegance you desire with the exceptional performance you need for your outdoor spaces.
Uncompromising style, unrivalled performance.
Imagine an outdoor area that exudes refined style and stands up to the demands of daily life. The Station range delivers just that. Crafted with meticulous attention to detail, these premium porcelain tiles boast a subtly textured, lightly riven surface that perfectly emulates the natural beauty of slate.
The reinforced strength of the 20mm thick tile allows you to lay tiles at 600mm joist centres.
Available accessories & fixings
Select your fixings
For all joist/bearer profiles

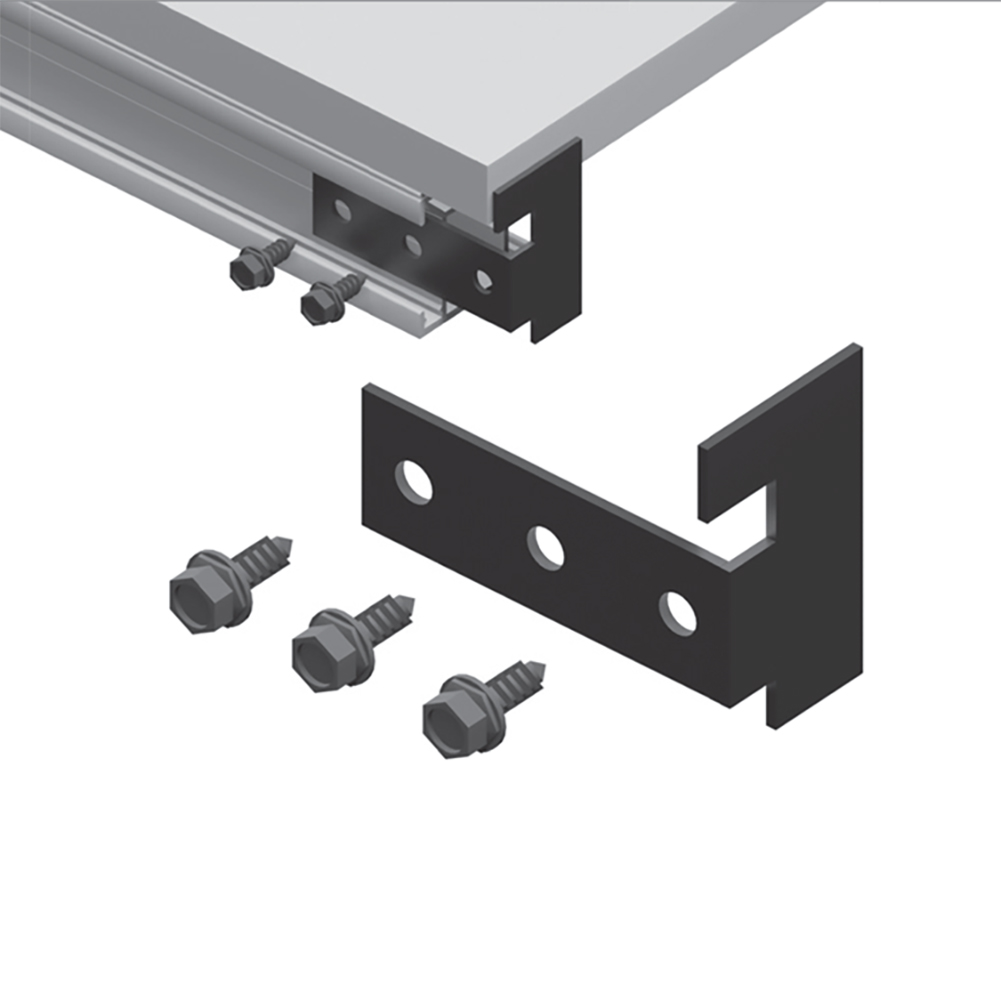

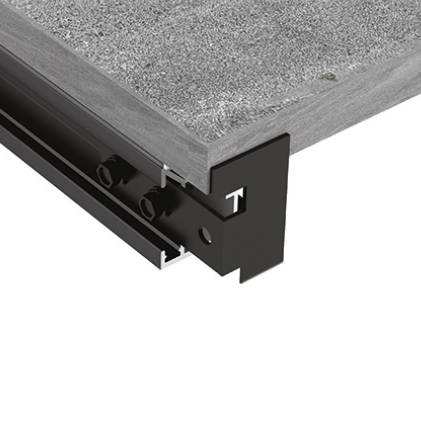

A702 Tile Retainer Bracket
Retains the perimeter tiles. Install retainer brackets at ends of joists, that are perpendicular to the edge of the deck.
Supplied in pack of 25.

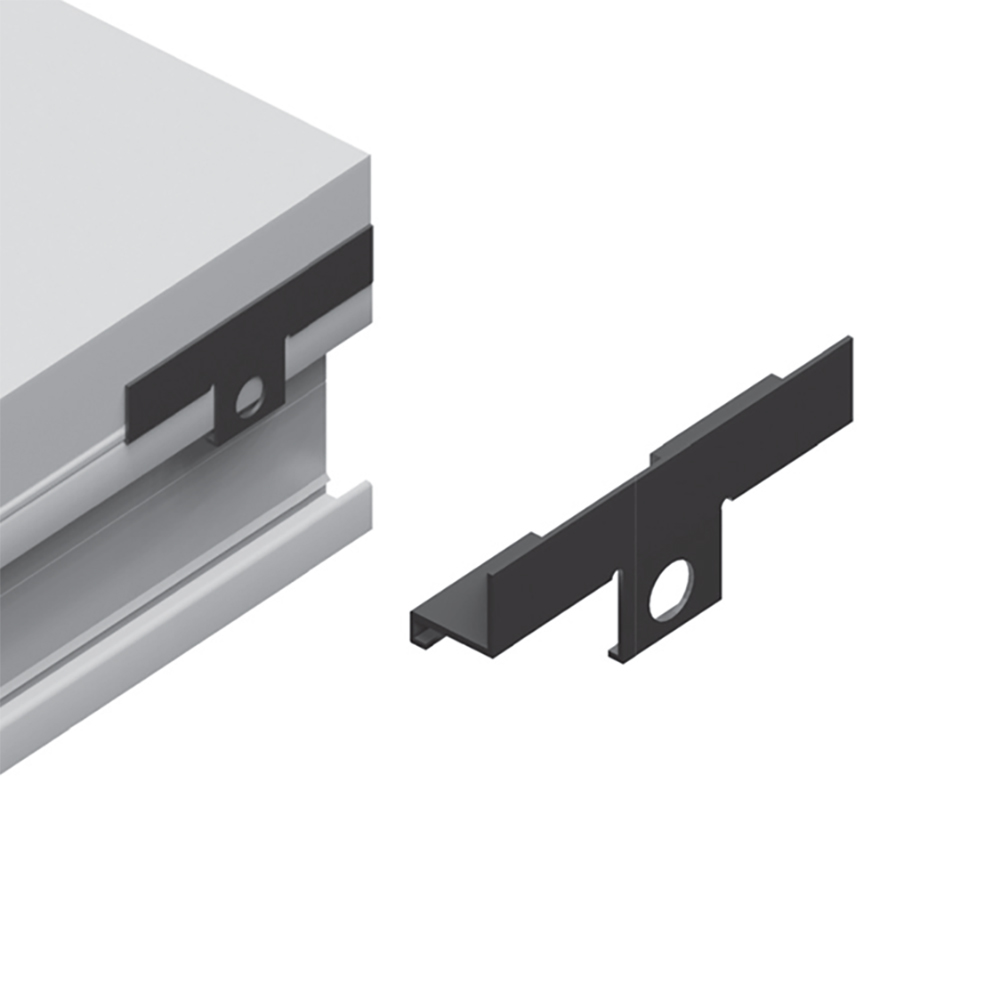

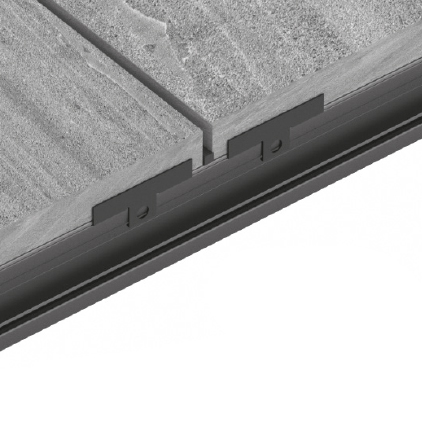

A703 Tile Retainer Clips
Retains the perimeter tiles. Install clips along the edge of a perimeter joist.
Supplied in pack of 25.

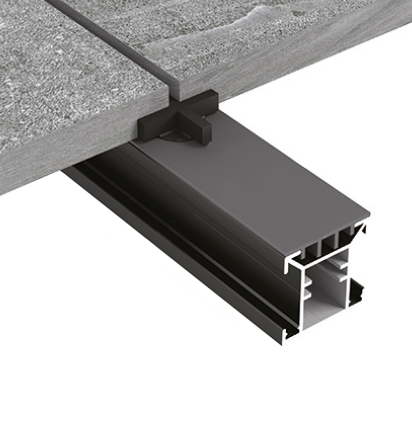

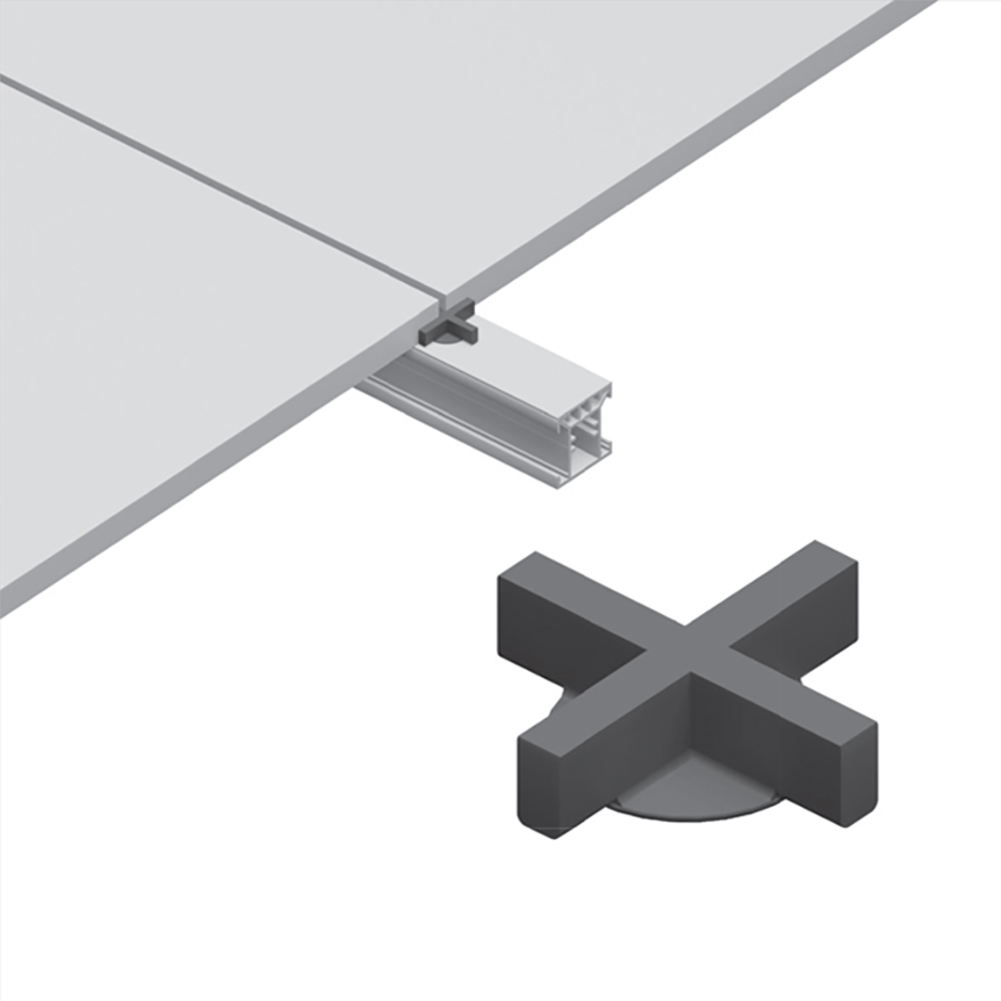

A710 Tile Spacer Cross
Cross Tile Spacers provide an even 5mm gap at the intersection of four adjoining tiles. Will hold position of tile when placed into A701 rubber beading. Supplied in pack of 25.

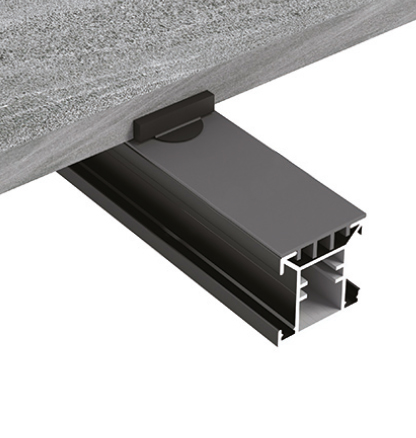

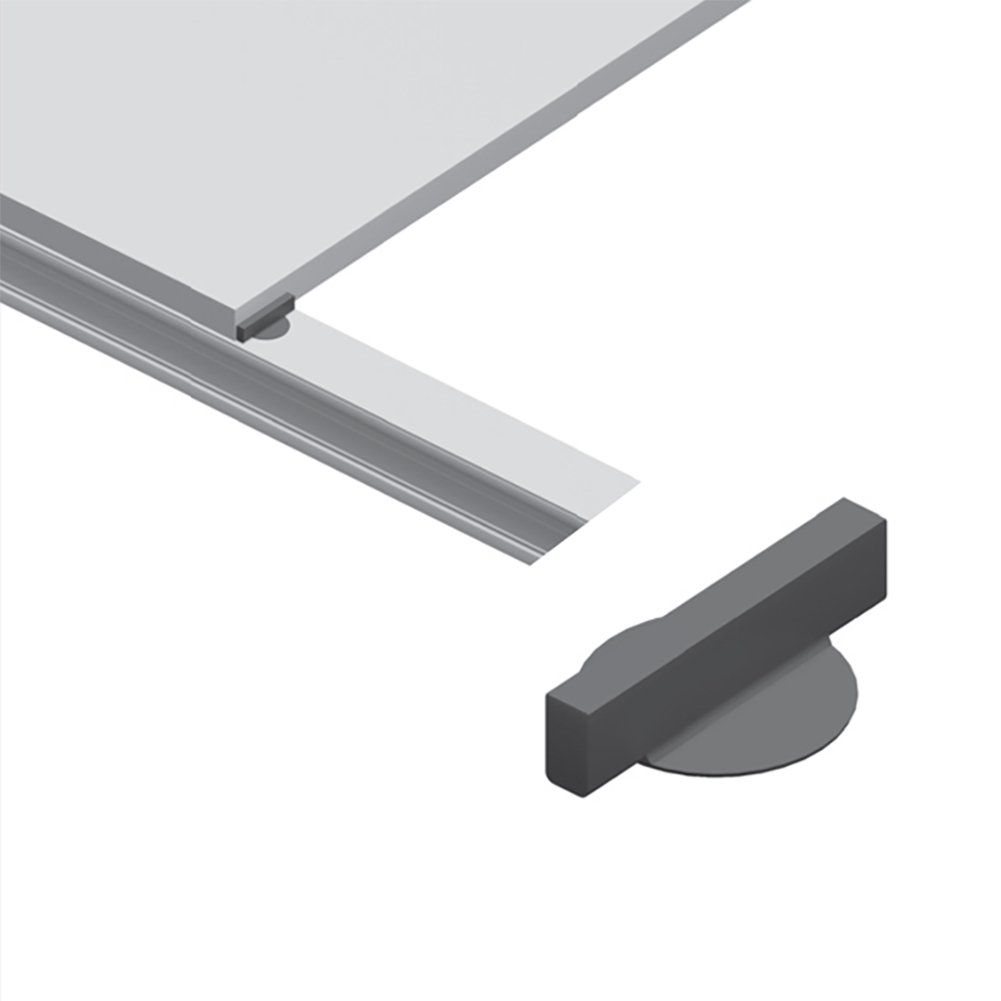

A711 Tile Spacer Straight
Straight Tile Spacers provide an even 5mm gap between two adjoining tiles. Will hold position of tile when placed into A701 rubber beading. Supplied in pack of 25.

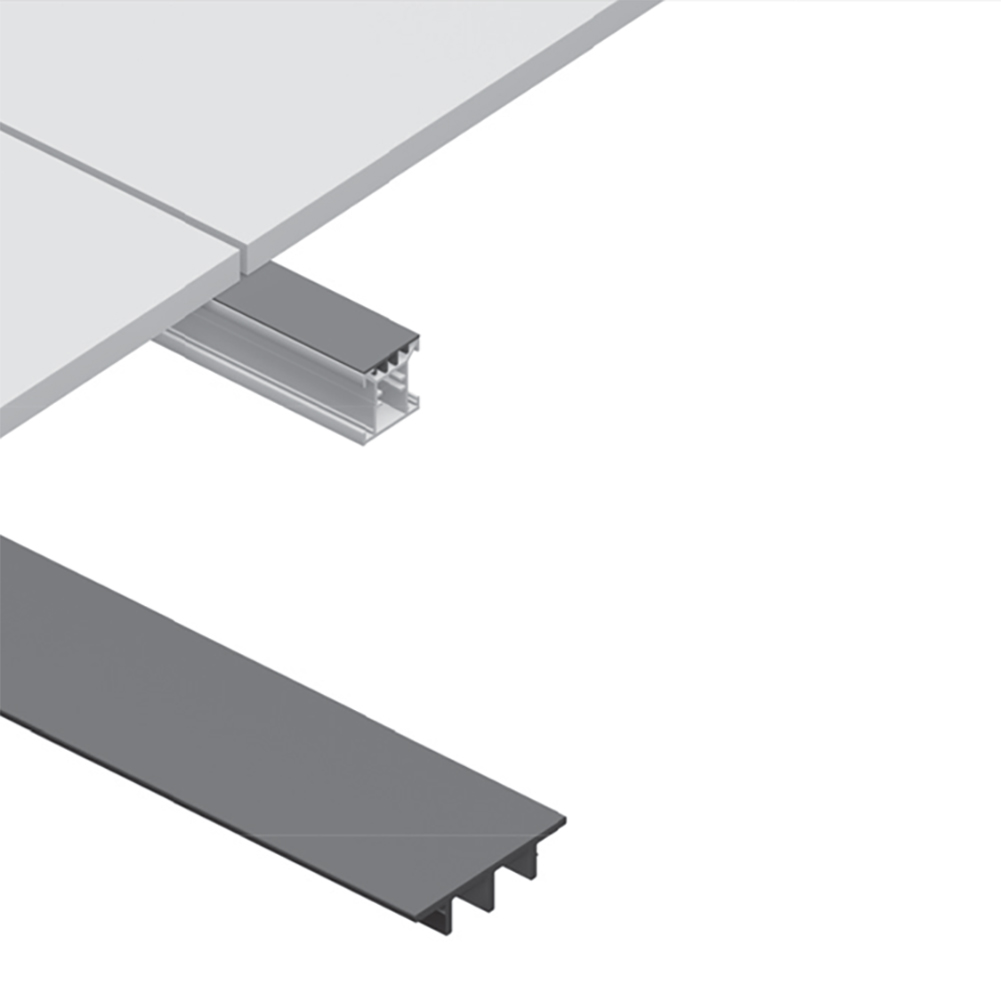

A701 Rubber Beading
Rubber beading has been designed for use alongside tile installation, allowing you to insert them into your decking frame on top of our QuickBuild joists to isolate noise and friction. Supplied in 1m lengths.

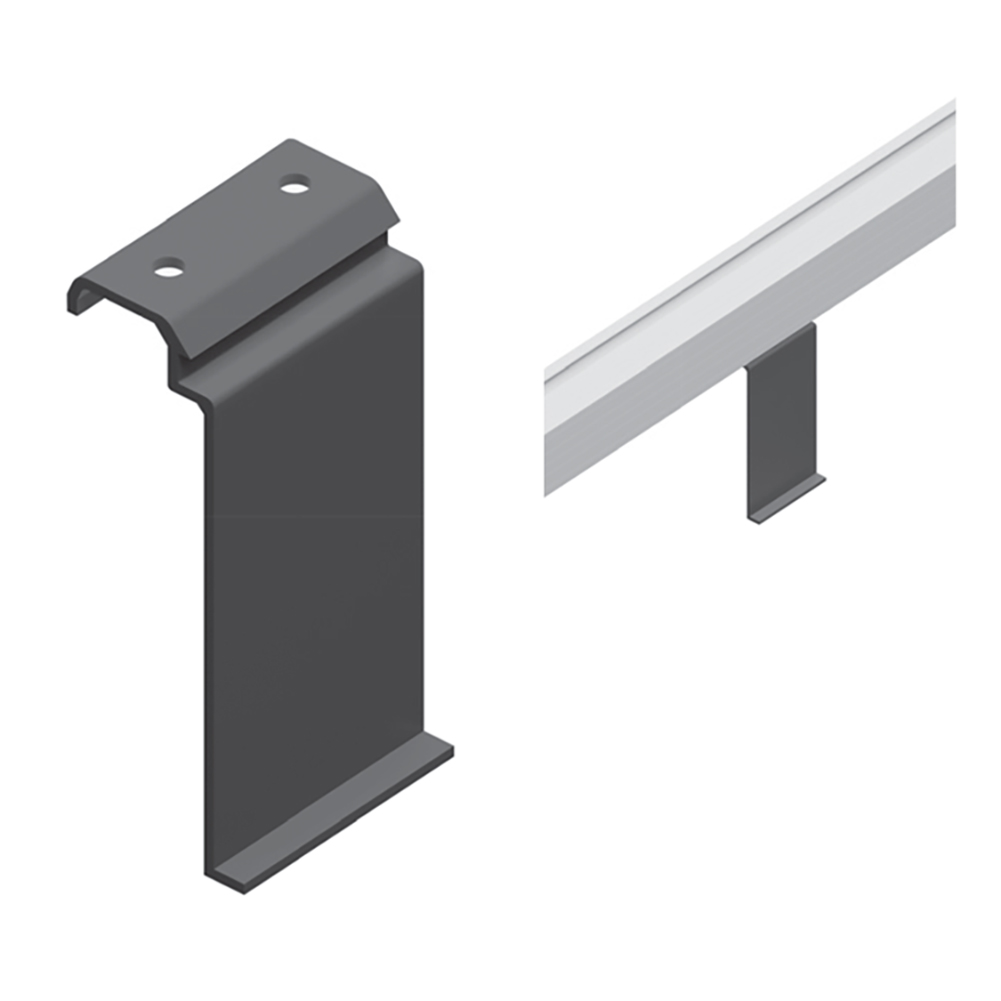

A712 Tile Trim Bracket
Tile trim supports have been designed to assist in the installation of the subframe where a trim is required on a tiled installation. The bracket acts as a support for a tile to sit on and act as a fascia board to complete installation when using trim joist. Supplied in pack of 10.
A840 Anti-Slip Strip
Anti-slip strips have been designed with safety in mind and are to assist in the installation of your new completed subframe and flooring on stairs and access ways, to integrate these into your new flooring please use the A510 twist clip. Supplied in 3m lengths.

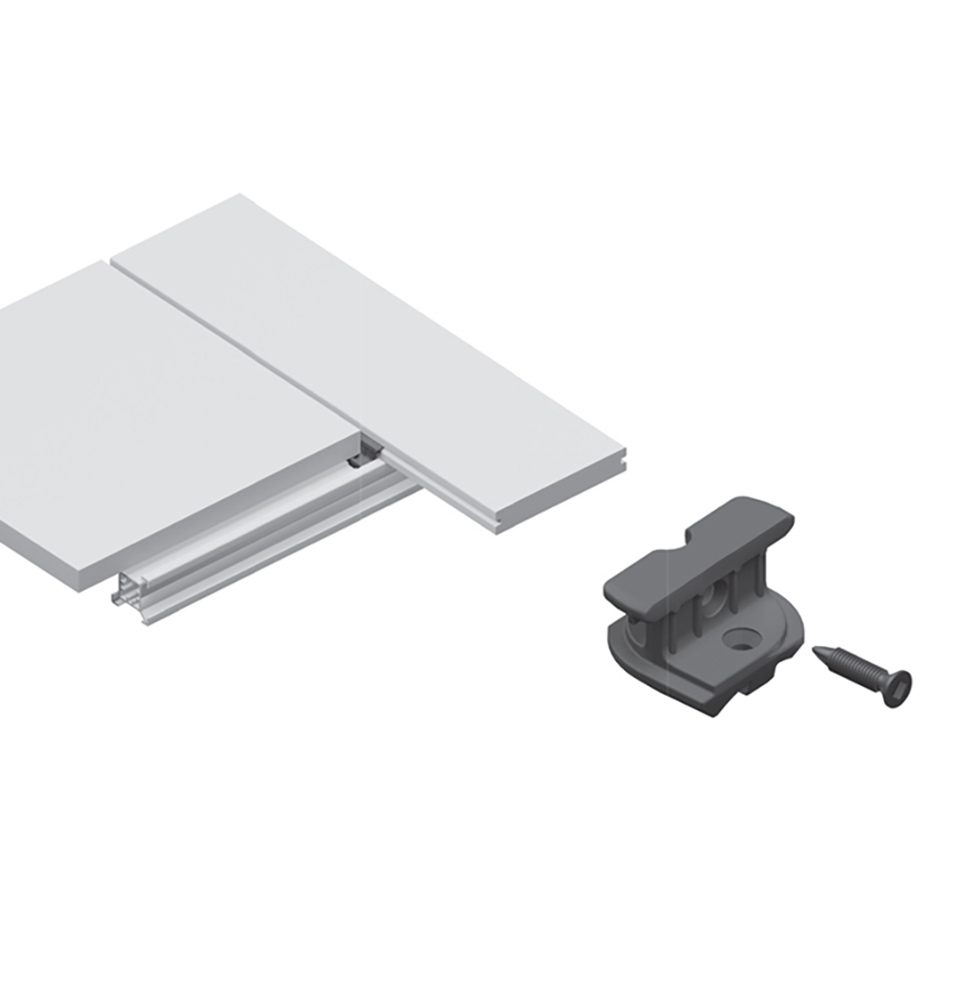

A511 Half TwistClip
QwickBuild Half TwistClips have been designed for use when transitioning between decking boards and tiles to interlock them to our QwickBuild joists, creating a 6mm gap. Supplied in pack of 50.
Fixing porcelain tiles to QwickBuild
When fixing tiles to Outdure QwickBuild framing, it is essential that a structural tile is used. Non-structural tiles are not designed to used across joist spans.

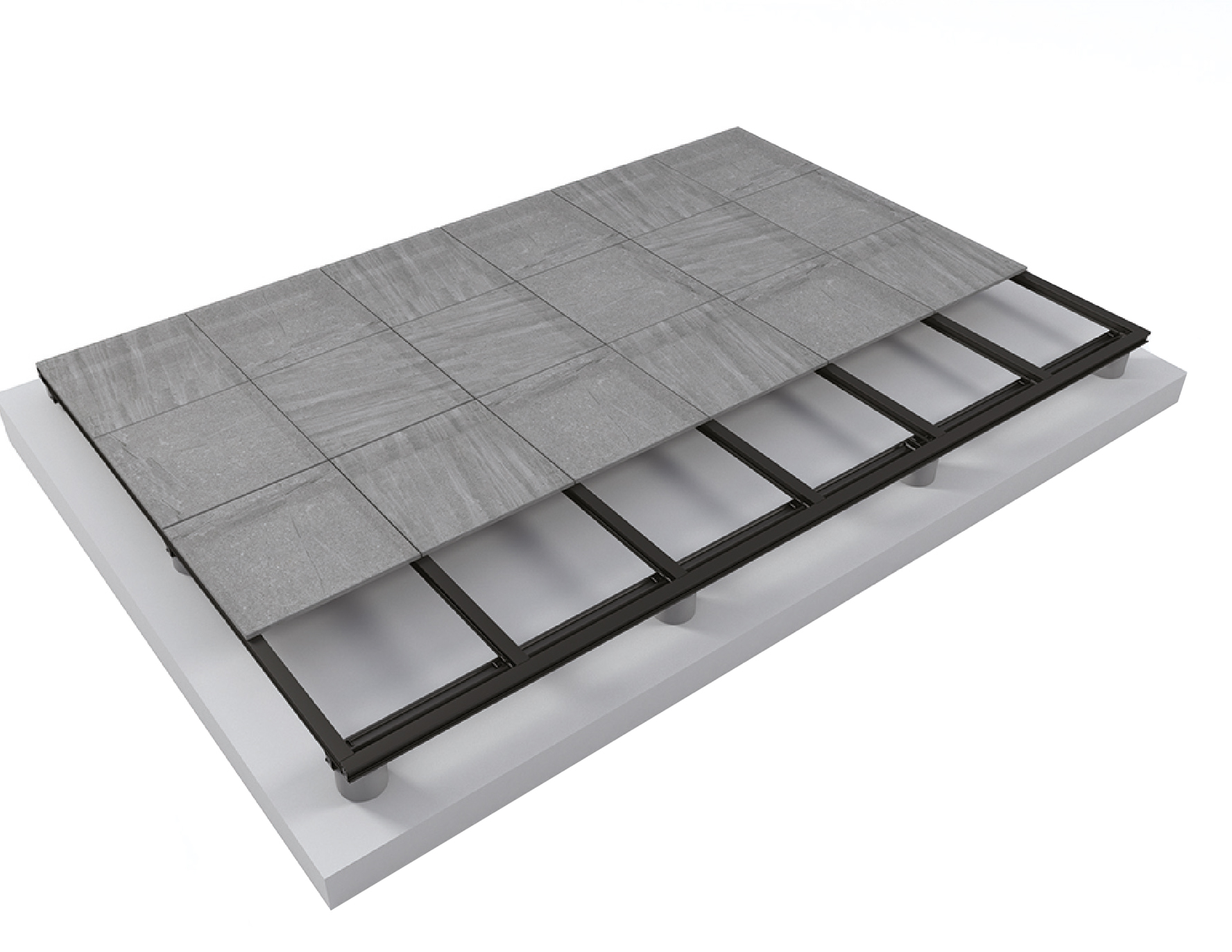

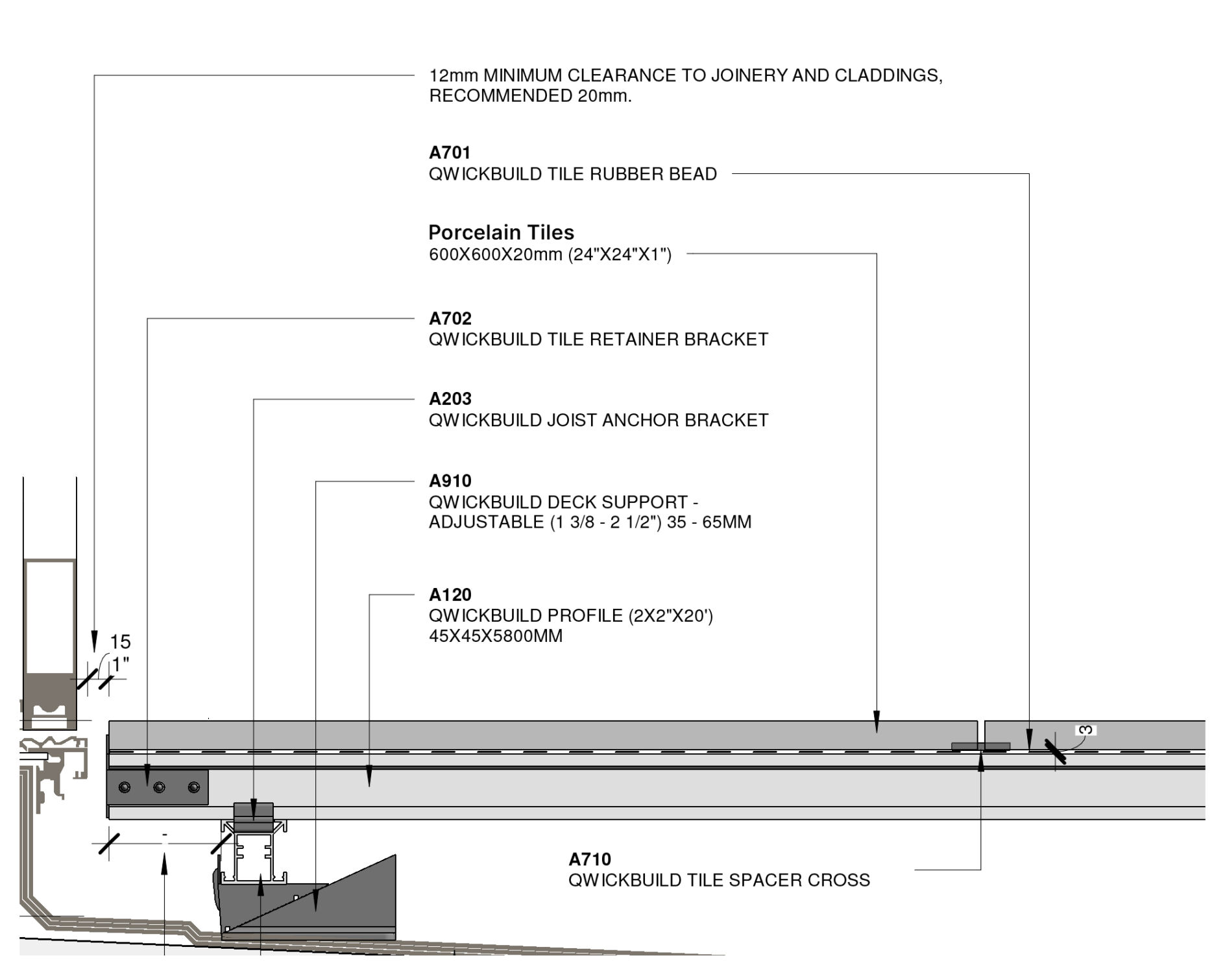

Tiles are laid using the channeled side of the joist (not the flat side), as indicated in the following diagram. Use of the A701 rubber beading, secured into the channel, which provides the surface on which to lay the tile. The tile does not need any other fixing, it is fixed by its own weight.
Each tile should be laid over joists with a maximum span of 600mm (600mm joist centres) – when using the 600 x 900mm tile, do not lay
with 900mm joist centres – use 450mm joist centres if you wish to lay perpendicular.
Space the tiles using the A710 and A711 spacers (providing 5mm gaps between each tile).
Ensure each outer/perimeter tile is fastened using the A702 and A703 retainer brackets. Use x2 A703 clips per perimeter tile edge on a framed system and additionally x2 A702 clips per joist end on a non-framed system.
A711 Spacer
A710 Spacer
A703 Retainer Clip
A702 Retainer Bracket
Innovation in every component
Build using a selection of core system components such as joists and brackets which form the structure, along with fixings for your chosen surface(s). The range also includes supports, such as posts or pedestals, depending on the height of the deck and the substrate on which it will sit. Combined with all the components required for you to install your artificial grass on our aluminium QwickBuild deck frame system.
