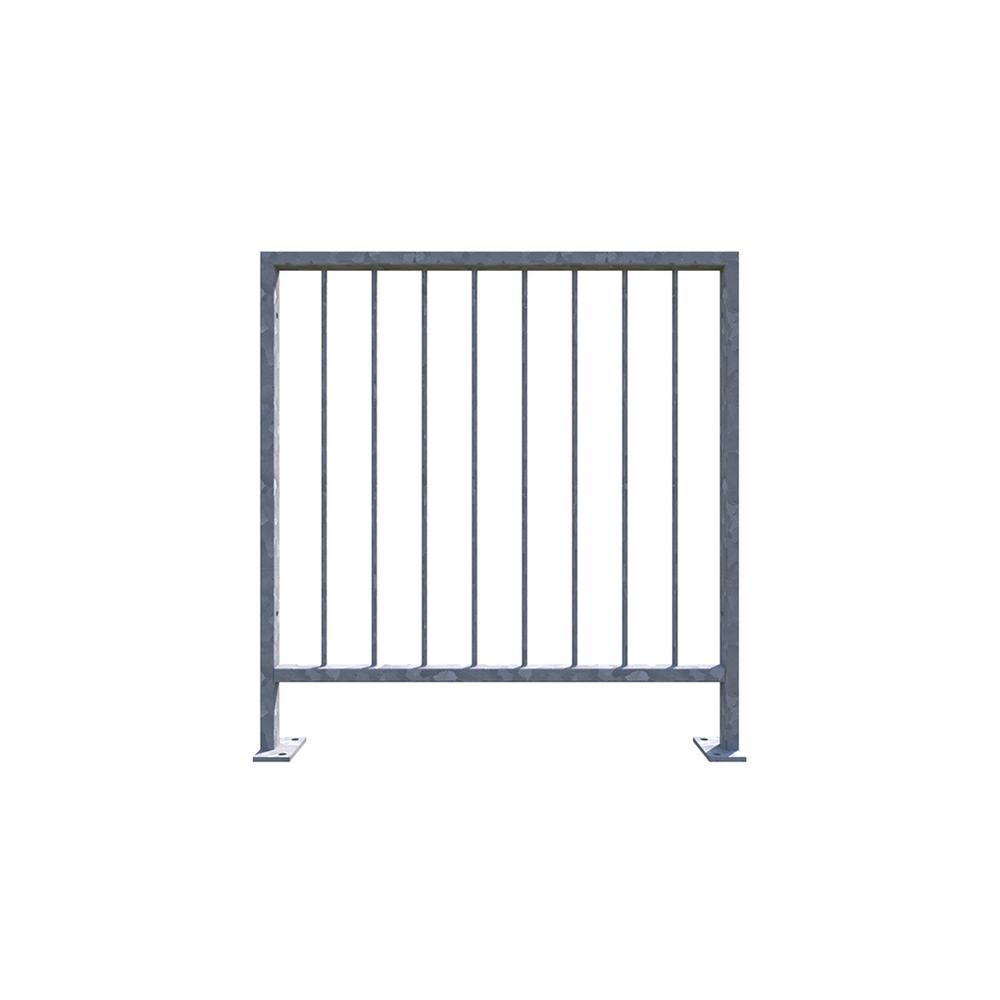

Bolt-down pedestrian barrier to suit all site conditions. The barrier is hot dip galvanised and the framework is constructed from 50 x 30mm rectangular hollow section with 13mm diameter through holes for bolting together.

Specifications:

?Panel width: 1000mm

Infill panel:12mm diameter bar

Overall length of stiles: 1000mm

Distance from top rail to underside of bottom rail: 900mm

Base plate: 150 x 75mm

Finish: galvanised

Adjoining panels will make 150 x 1500mm base plate. 13mm diameter fixing holes to join panels together, one on each side.

Supplied fully welded and with two M10 x 80mm joining bolts.
