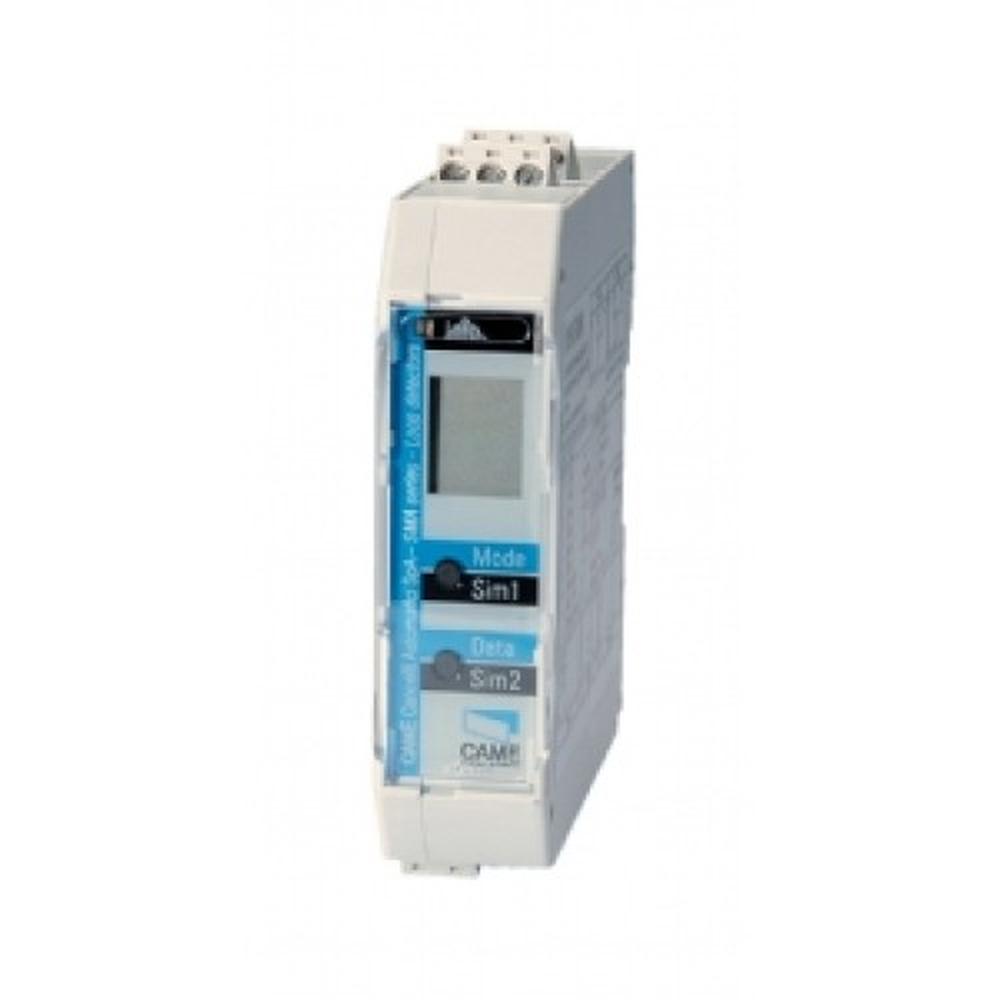

SMA Magnetic Sensor Board
The 1 channel SMA sensor is a vehicle detector using electromagnetic loops. It is fitted with a microprocessor and has been designed for access and traffic flow controls. The operating principle involves measuring the inductance variation in the magnetic loop caused when a vehicle passes over it. The SMA sensor comes complete with an 11 pin support/terminal block for connection to the loops and the 12 or 14V ac/dc power supply.
Product Specification:
- 1 Channel
- Supply voltage: 12/24V ac/dc
- Current draw: 20mA max
- Outlet relays: Max capacity: 5A at 230Vac - Exchange contact
- Magnetic loop inductance: between 20 and 1000 µH
21SMA
.3 kg
£153.20EACH Ex VAT @ 20%
£183.84EACH Inc VAT @ 20%
| Quantity | Price |
|---|---|
| 1+ | £153.20 |
| 7+ | £147.10 |
